- Codice Macchina
- BO80
- Manufacturer
- BRUCKNER - DORNIER
- Year
- 1994
- Numero di strati
- 3
- Struttura film
- ABC
- Materiali
- BOPP
- Output
- design speed 350 m/min. Extruder's melting capacity 4800 kg/h Produced in past approx 23 ktons/y . Actual output depends on specific product mix and uptime
- Larghezza (mm)
- 8400

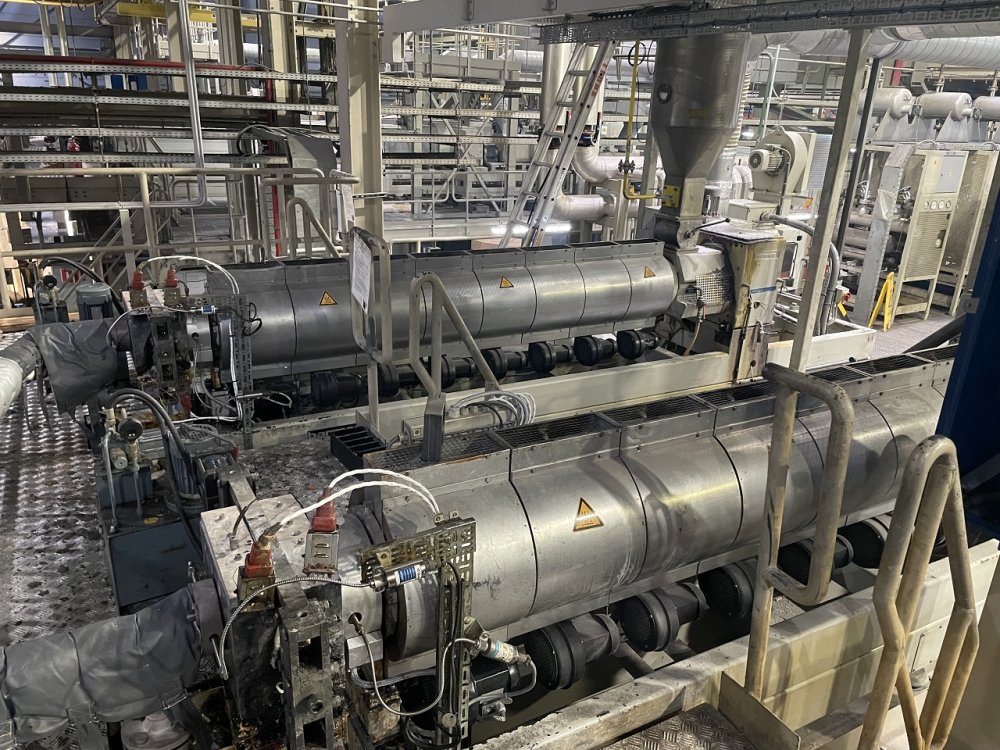

- Extruder 1 Description
- Mitsubishi, cascade extruder. 250mm diam. Feeding and mixing system. 5 large hoppers
- Extruder 2 Description
- Barmag single screw. 180 kg/h Ktron 2 component gravimetric doser
- Extruder 3 Description
- Barmag single screw. 180 kg/h Ktron 2 component gravimetric doser
- Descrizione testa
- EDI Autoflex IV
- Die width
- 1168
- Controllo di spessore
- 2 thickness gauges, one afetr chill roll, one on pull roll unit. Make FAG, source: Strontium 90. Automatic thickness profile controll on die head.

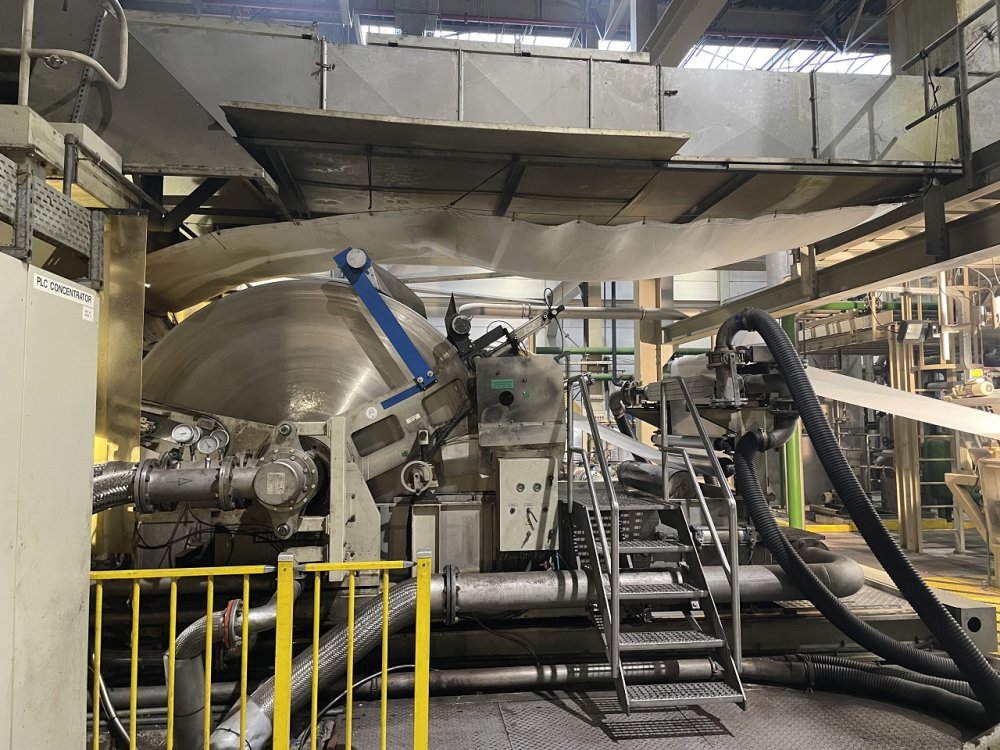

- Unità chill roll
- Bruckner. 2600mm diam in water bath with water degassification system
- Descrizione MDO
- Bruckner. Pre heating 16 cylinders. 4 stretching nips, 4 roller anealing
- Descrizione TDO
- Dornier 9-roller HS-clips with roller bearings. ventilation of TDO renovated in 2020 with new ac motors and inverters
- Trattamento Corona
- bottom corona treatment
- Trattamento a fiamma
- Top and bottom flame treatment. Make Esseci
- Larghezza avvolgitore
- 8300

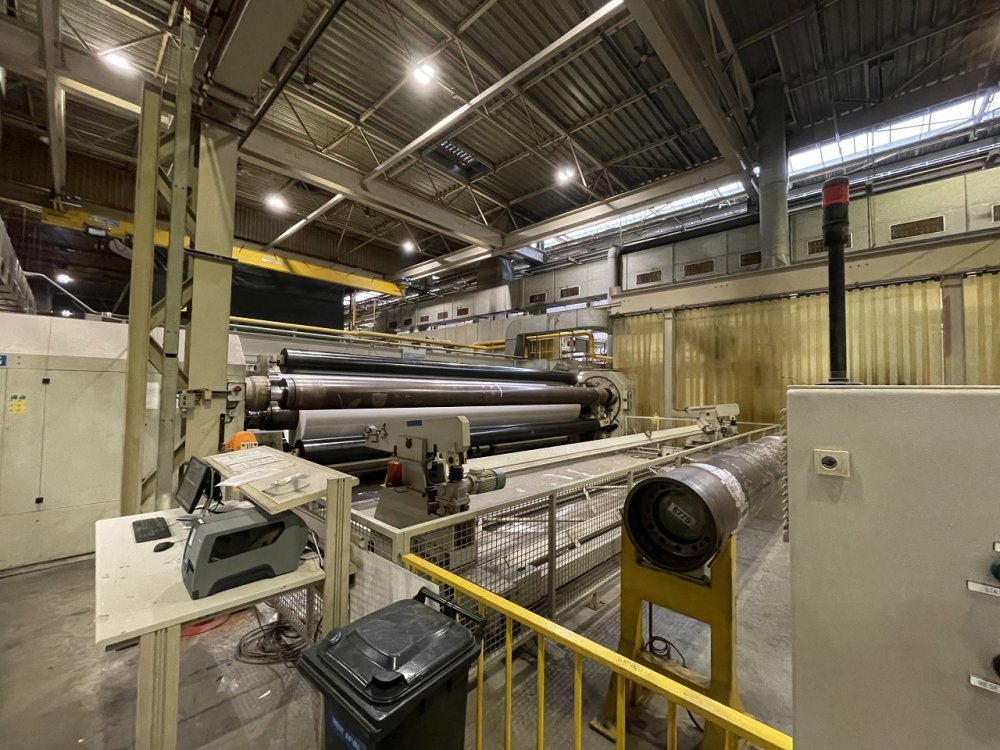

- Descrizione avvolgitore
- Kampf turret winder with automatic reel unloading system
- Taglia cordona
- Goebel Monslit. Max width 8400mm. Max input reel daim: 1200mm. Rewinder with independent winding stations, center driven, max winding width 2300mm, 14 winding arms
- Ulteriori informazioni
- -Silos - Oil oven - Roof crane - approx 100 cres
| Codice Macchina | BO80 |
| Manufacturer | BRUCKNER - DORNIER |
| Year | 1994 |
| Numero di strati | 3 |
| Struttura film | ABC |
| Materiali | BOPP |
| Output | design speed 350 m/min. Extruder's melting capacity 4800 kg/h Produced in past approx 23 ktons/y . Actual output depends on specific product mix and uptime |
| Larghezza (mm) | 8400 |
| Extruder 1 Description | Mitsubishi, cascade extruder. 250mm diam. Feeding and mixing system. 5 large hoppers |
| Extruder 2 Description | Barmag single screw. 180 kg/h Ktron 2 component gravimetric doser |
| Extruder 3 Description | Barmag single screw. 180 kg/h Ktron 2 component gravimetric doser |
| Descrizione testa | EDI Autoflex IV |
| Die width | 1168 |
| Controllo di spessore | 2 thickness gauges, one afetr chill roll, one on pull roll unit. Make FAG, source: Strontium 90. Automatic thickness profile controll on die head. |
| Unità chill roll | Bruckner. 2600mm diam in water bath with water degassification system |
| Descrizione MDO | Bruckner. Pre heating 16 cylinders. 4 stretching nips, 4 roller anealing |
| Descrizione TDO | Dornier 9-roller HS-clips with roller bearings. ventilation of TDO renovated in 2020 with new ac motors and inverters |
| Trattamento Corona | bottom corona treatment |
| Trattamento a fiamma | Top and bottom flame treatment. Make Esseci |
| Larghezza avvolgitore | 8300 |
| Descrizione avvolgitore | Kampf turret winder with automatic reel unloading system |
| Taglia cordona | Goebel Monslit. Max width 8400mm. Max input reel daim: 1200mm. Rewinder with independent winding stations, center driven, max winding width 2300mm, 14 winding arms |
| Ulteriori informazioni | -Silos - Oil oven - Roof crane - approx 100 cres |
