- Codice Macchina
- RO138
- Manufacturer
- ANDREOTTI
- Modello

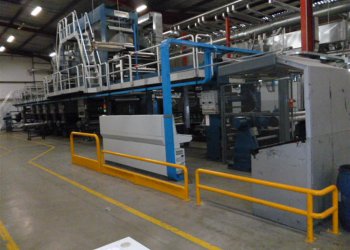

- PRINTOMAC NR35/1200
- Year
- 1986
- Numero di colori
- 6
- Rinnovo
- 2011 Renovation ( -Redesign and totally remaking of ventilation (exaust and fresh air) .Heating unit replacement .Three-way valve replacement . Dancing rollers control replacement .Power and control cabinets replacement .Control desk replacement .All control and power wires replacement.Print elements fans and main fan replacement .New L.E.L. Analyser .Add control encoder on main engine and axis engines.Register control replacement
- Larghezza nastro (mm)
- 1250
- Larghezza stampa (mm)
- 1200
- Formato stampa (mm)
- 400-1000 mm
- Drying specifications
- Thermal Oil
- Unwinder type
- Shaftless
- Diametro massimo svolgitore (mm)
- 1000
- Rewinder type
- Shaftless
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- Fife Video Imprint 2
- Controllo di registro
- Gama REG G45 VLT
- Trattamento Corona
- Ferrarini & Benelli GTS -8TLX IGBT
- Ulteriori informazioni
- Venitlation recently replaced Controls recently renovated Web tension:4 – 40 Kg. ES1 / ES6:Reversible ES1 – ES5:Standard ES6:Extralong Cerutti Cone:D110 mm (11°20’) Speed:400 mt/min. Voltage:380 V – 50 Hz Web direction:from Left to Right UNWINDER :Max Weight:1000 Kg REWINDER: Max Weight: 1000 Kg ACCESSORIES Register Control:Gama REG G45 VLT Video Cameras:Fife Video Imprint 2 Corona Treatment:Ferrarini & Benelli GTS – 8 TLX IGBT L.E.L. Analyser:Nira Sagittarius 911-200 MATERIALS No extensible films:< 200 g Paper:< 200 g Alluminiun:> 15 µm High-density Polyethylene:> 25 µm Polypropylene :> 12 µm Polyester: > 12 µm
Codice Macchina | RO138 |
Manufacturer | ANDREOTTI |
Modello | PRINTOMAC NR35/1200 |
Year | 1986 |
Numero di colori | 6 |
Rinnovo | 2011 Renovation ( -Redesign and totally remaking of ventilation (exaust and fresh air) .Heating unit replacement .Three-way valve replacement . Dancing rollers control replacement .Power and control cabinets replacement .Control desk replacement .All control and power wires replacement.Print elements fans and main fan replacement .New L.E.L. Analyser .Add control encoder on main engine and axis engines.Register control replacement |
Larghezza nastro (mm) | 1250 |
Larghezza stampa (mm) | 1200 |
Formato stampa (mm) | 400-1000 mm |
Drying specifications | Thermal Oil |
Unwinder type | Shaftless |
Diametro massimo svolgitore (mm) | 1000 |
Rewinder type | Shaftless |
Max reel diameter rewinder (mm) | 1000 |
Videocamera | Fife Video Imprint 2 |
Controllo di registro | Gama REG G45 VLT |
Trattamento Corona | Ferrarini & Benelli GTS -8TLX IGBT |
Ulteriori informazioni | Venitlation recently replaced Controls recently renovated Web tension:4 – 40 Kg. ES1 / ES6:Reversible ES1 – ES5:Standard ES6:Extralong Cerutti Cone:D110 mm (11°20’) Speed:400 mt/min. Voltage:380 V – 50 Hz Web direction:from Left to Right UNWINDER :Max Weight:1000 Kg REWINDER: Max Weight: 1000 Kg ACCESSORIES Register Control:Gama REG G45 VLT Video Cameras:Fife Video Imprint 2 Corona Treatment:Ferrarini & Benelli GTS – 8 TLX IGBT L.E.L. Analyser:Nira Sagittarius 911-200 MATERIALS No extensible films:< 200 g Paper:< 200 g Alluminiun:> 15 µm High-density Polyethylene:> 25 µm Polypropylene :> 12 µm Polyester: > 12 µm |
