- Codice Macchina
- RO197

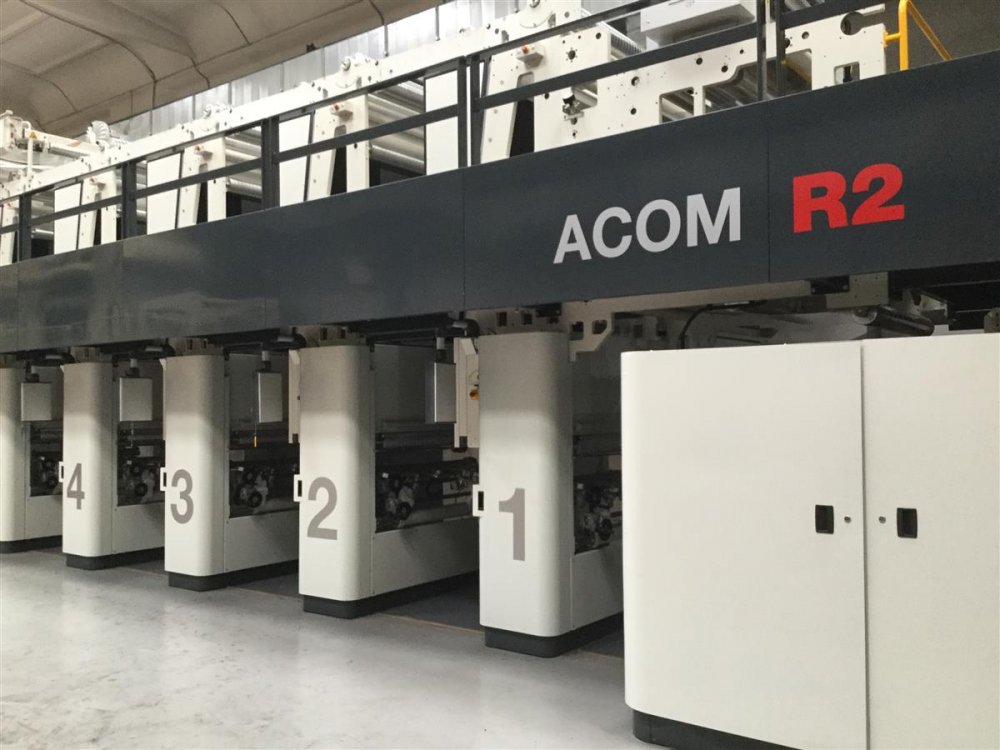

- Manufacturer
- COMEXI ACOM
- Modello
- R2
- Year
- 2017

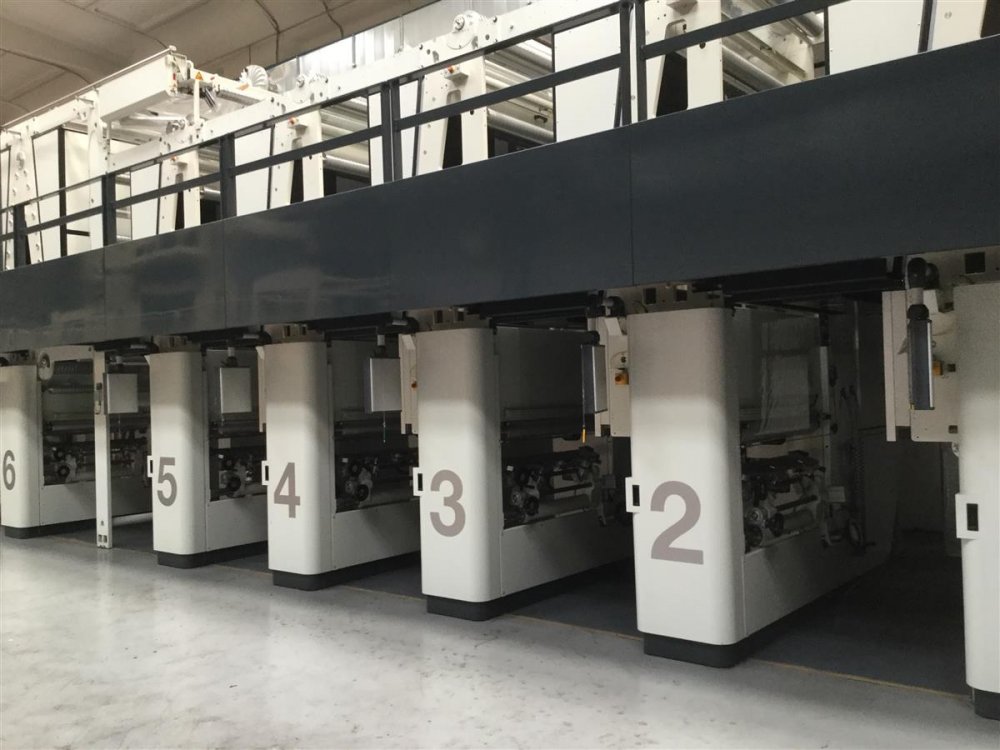

- Numero di colori
- 6
- Possibilità stampa
- 6+0 , 5+1
- Motorizzazione
- Electronic shaft
- Trolley system
- Yes
- Larghezza nastro (mm)
- 1050
- Larghezza stampa (mm)
- 1030
- Formato stampa (mm)
- 450 - 920

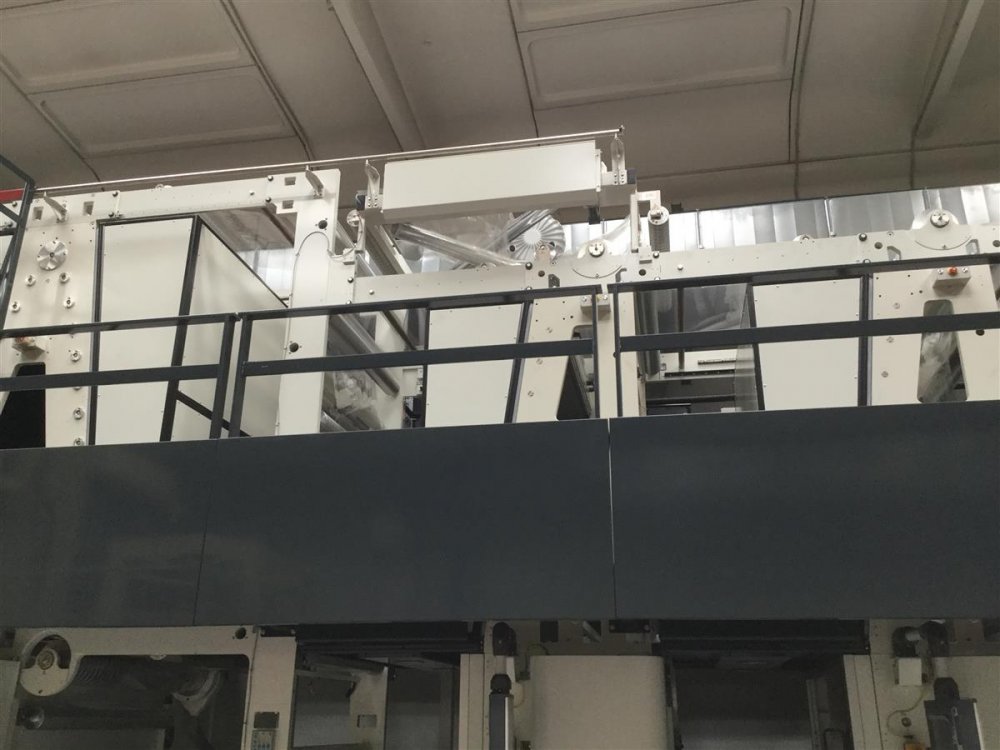

- Drying specifications
- Units 1- 5 single hood 1,8 mt , unit 6 double extended hood 2 x 2,2 mt including general exhaust fan and relevant air ducting Thermo oil heat exchangers automatic air recirculation system with LEL control system make MSA, IR sensors
- Drying heat surce
- Thermo oil heat exchanger

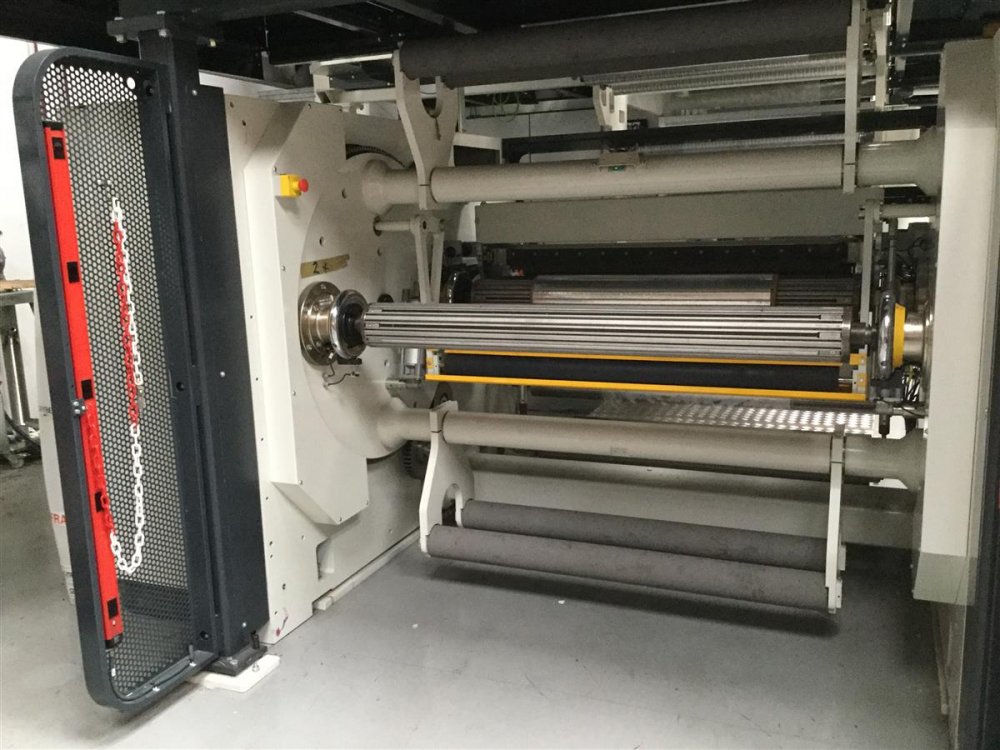

- Unwinder type
- Turret automatic
- Diametro massimo svolgitore (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- BST ELTROMAT Web video Eltromat 500
- Controllo di registro
- ELTROMAT ( with reading heads with possibility to read triangular marks 10x6) with preregister system
- Vyscosity control
- YES
- Trattamento Corona
- AHLBRANDT
- Cilindri stampa
- 200 cylinders included . Available in option more cylinders
- Ulteriori informazioni
- Less than 6.000 hours of operation - Elecctrostatic assistance Enulec on 6 print units + anti static bars on un and rewind -Turning bar before 6th station totally 12 trolleys ( 6 in machine + 6 spare ) totally 12 cross shafts ( 6 in machine + 6 spare ) Totally 12 doctor blades sets ( 6 in machine + 6 spare ) 12 rubber nip rollers ( 6 in machine + 6 spare ) 4 expanding air shafts 6" 2 expanding air shafts 3 " Air compressor complete with drier and tank
| Codice Macchina | RO197 |
| Manufacturer | COMEXI ACOM |
| Modello | R2 |
| Year | 2017 |
| Numero di colori | 6 |
| Possibilità stampa | 6+0 , 5+1 |
| Motorizzazione | Electronic shaft |
| Trolley system | Yes |
| Larghezza nastro (mm) | 1050 |
| Larghezza stampa (mm) | 1030 |
| Formato stampa (mm) | 450 - 920 |
| Drying specifications | Units 1- 5 single hood 1,8 mt , unit 6 double extended hood 2 x 2,2 mt including general exhaust fan and relevant air ducting Thermo oil heat exchangers automatic air recirculation system with LEL control system make MSA, IR sensors |
| Drying heat surce | Thermo oil heat exchanger |
| Unwinder type | Turret automatic |
| Diametro massimo svolgitore (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | BST ELTROMAT Web video Eltromat 500 |
| Controllo di registro | ELTROMAT ( with reading heads with possibility to read triangular marks 10x6) with preregister system |
| Vyscosity control | YES |
| Trattamento Corona | AHLBRANDT |
| Cilindri stampa | 200 cylinders included . Available in option more cylinders |
| Ulteriori informazioni | Less than 6.000 hours of operation - Elecctrostatic assistance Enulec on 6 print units + anti static bars on un and rewind -Turning bar before 6th station totally 12 trolleys ( 6 in machine + 6 spare ) totally 12 cross shafts ( 6 in machine + 6 spare ) Totally 12 doctor blades sets ( 6 in machine + 6 spare ) 12 rubber nip rollers ( 6 in machine + 6 spare ) 4 expanding air shafts 6" 2 expanding air shafts 3 " Air compressor complete with drier and tank |
