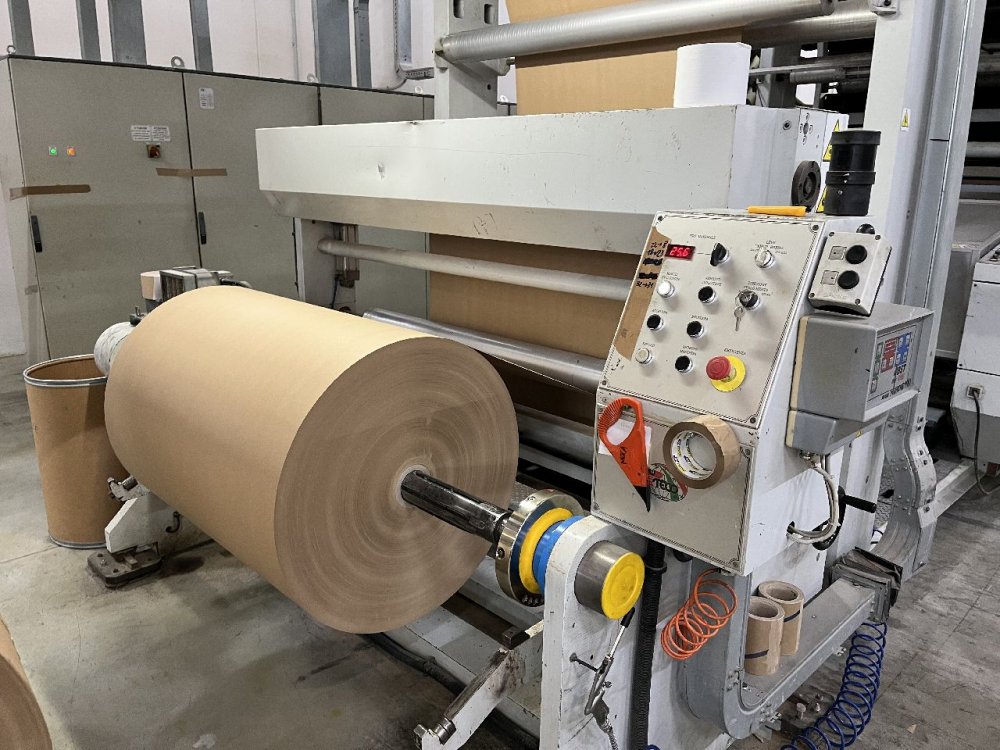

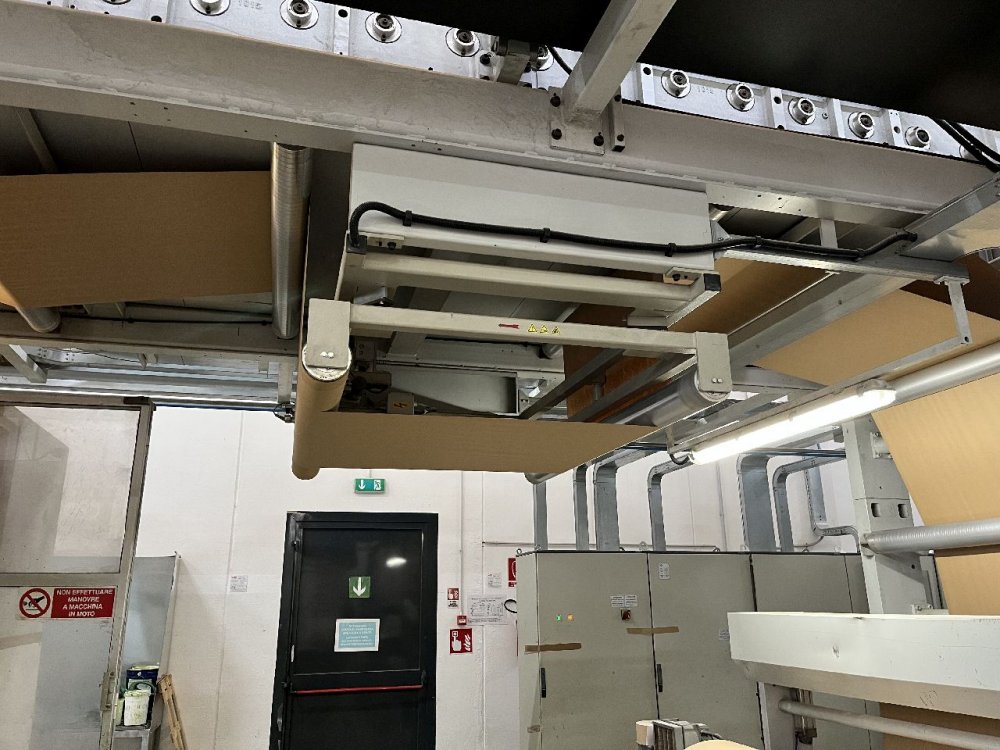

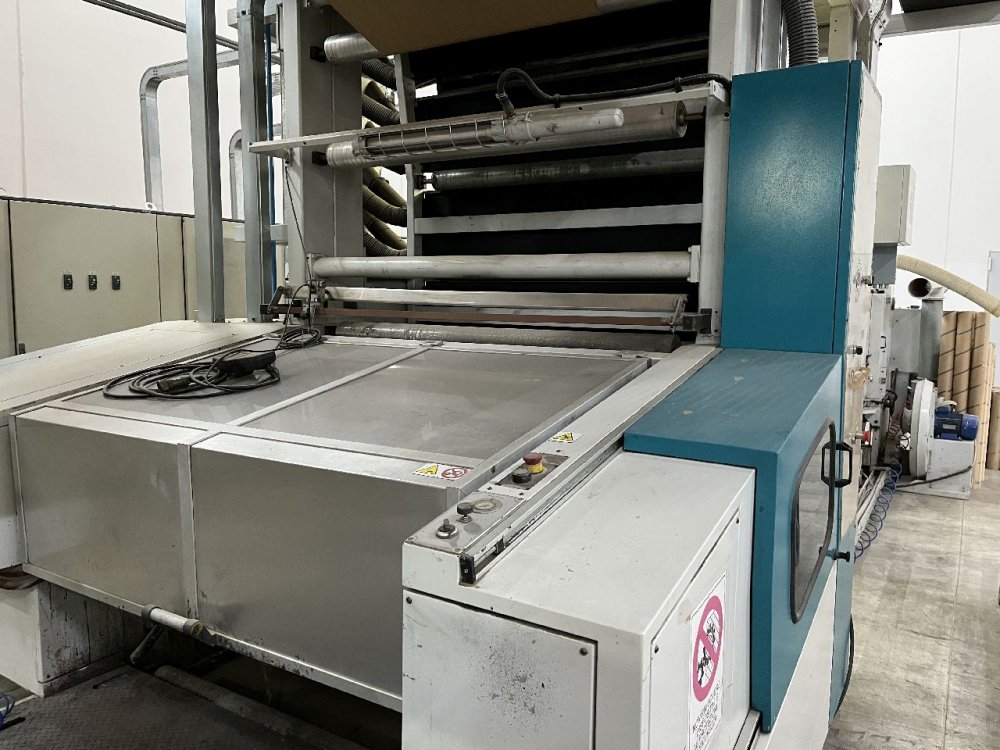

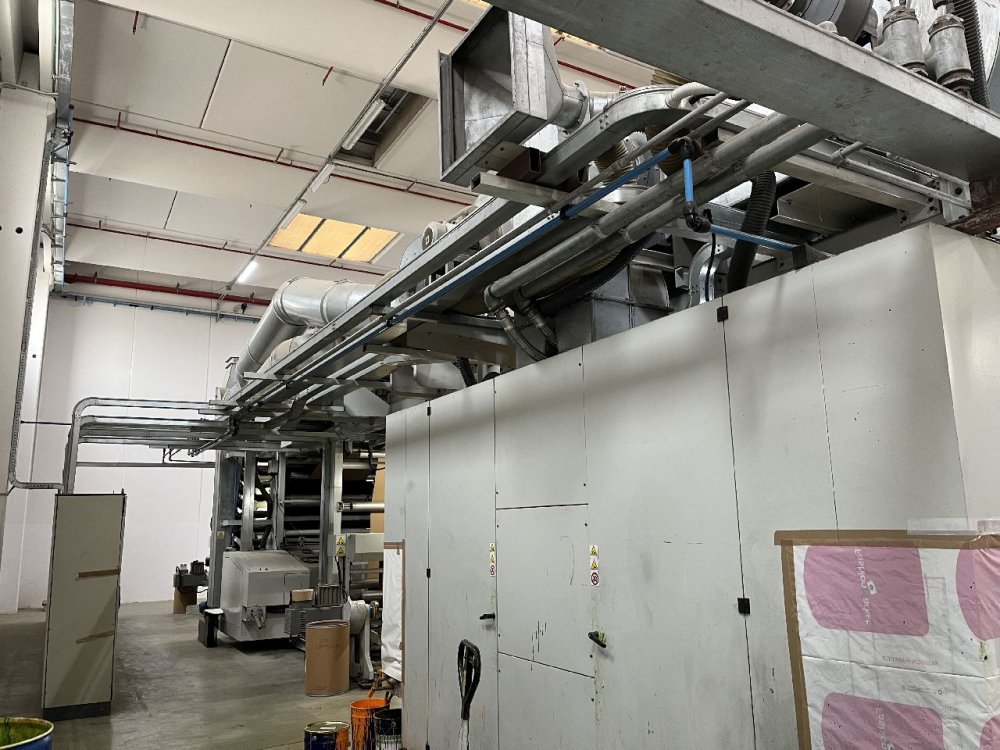

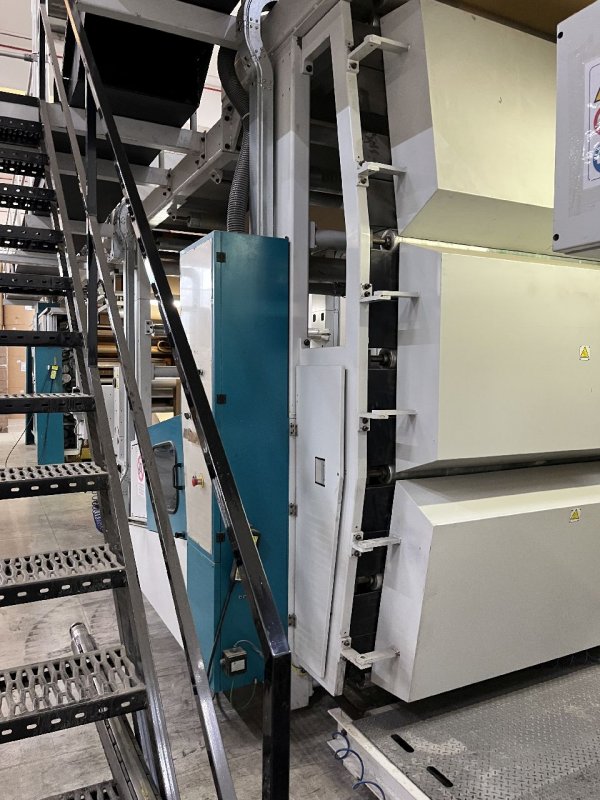

- Codice Macchina
- FL1173
- Manufacturer
- UTECO
- Modello
- ONYX 876 + 1
- Year
- 2007
- Print possibilityes
- 8+1
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1550
- Larghezza stampa (mm)
- 1500
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 760
- Unwinder type
- Single position with roll loading system
- Diametro massimo svolgitore (mm)
- 1250
- Rewinder type
- Single position with roll loading system
- Max reel diameter rewinder (mm)
- 1250
- Essiccazione
- 2 zones on CI section, 2 blowing and two exhaust fans Tunnel 4 mt length. One additional drying zone for stack unit downstream with 1 blowing, 1 exhaust and vertical drying good 2,5 mt . Electric heaters
- Videocamera
- Yes , Selectra
- Guida film
- Yes in and out Fife OPG
- Sistema d'inchiostro
- Closed chamber doctor blades
- Anilox
- 9 ceramic anilox sleeves
- Maniche stampa
- to be agreed
- Ulteriori informazioni
- Flexo stack coating unit downsytream with Graqfykontrol register control Carbon fiber printing mandrels Materials Paper and board up to 200 gsm Machine web tension 4- 60 kg
| Codice Macchina | FL1173 |
| Manufacturer | UTECO |
| Modello | ONYX 876 + 1 |
| Year | 2007 |
| Print possibilityes | 8+1 |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1550 |
| Larghezza stampa (mm) | 1500 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 760 |
| Unwinder type | Single position with roll loading system |
| Diametro massimo svolgitore (mm) | 1250 |
| Rewinder type | Single position with roll loading system |
| Max reel diameter rewinder (mm) | 1250 |
| Essiccazione | 2 zones on CI section, 2 blowing and two exhaust fans Tunnel 4 mt length. One additional drying zone for stack unit downstream with 1 blowing, 1 exhaust and vertical drying good 2,5 mt . Electric heaters |
| Videocamera | Yes , Selectra |
| Guida film | Yes in and out Fife OPG |
| Sistema d'inchiostro | Closed chamber doctor blades |
| Anilox | 9 ceramic anilox sleeves |
| Maniche stampa | to be agreed |
| Ulteriori informazioni | Flexo stack coating unit downsytream with Graqfykontrol register control Carbon fiber printing mandrels Materials Paper and board up to 200 gsm Machine web tension 4- 60 kg |

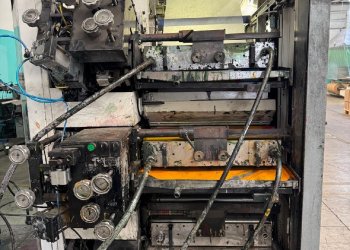

WINDMÖLLER & HÖLSCHER Soloflex
-
Codice Macchina: FL1180
-
Year: 1993
-
Larghezza nastro (mm): 630
EXPERT ACTIVE 808-GL
-
Codice Macchina: FL1147
-
Year: 2013
-
Larghezza nastro (mm): 1650

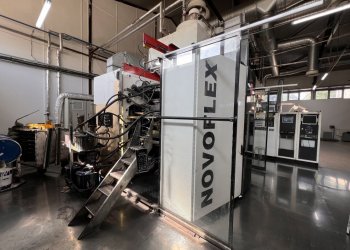

WINDMÖLLER & HÖLSCHER Novoflex
-
Codice Macchina: FL1181
-
Year: 1999
-
Larghezza nastro (mm): 1050
UTECO EMERALD 825 MOD 120
-
Codice Macchina: FL0662
-
Year: 1999
-
Larghezza nastro (mm): 1250
LEMO
-
Codice Macchina: FL0776
-
Year: 1990
-
Larghezza nastro (mm): 1350

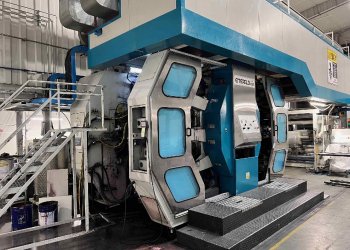

UTECO Emerald
-
