- Codice Macchina
- FL1065
- Manufacturer
- PCMC
- Modello
- INFINITY
- Year
- 2005
- Numero di colori
- 10
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1270
- Larghezza stampa (mm)
- 1240
- Min print repeat (mm)
- 356
- Max print repeat (mm)
- 800
- Unwinder type
- Turret with fast reel loading (no shaft removal). Flying splice
- Diametro massimo svolgitore (mm)
- 800
- Rewinder type
- Turret with fast reel un loading (no shaft removal). Flying splice
- Max reel diameter rewinder (mm)
- 800
- Essiccazione
- eXtreme drying system from PCMC, High efficiency drying. Max set temperature 200C, Each eXtreme module has independent temperature control
- Trattamento Corona
- Enercon
- Guida film
- 2 BST web guides
- Vyscosity control
- Auto viscosity control form Inkspec, recently renovated
- Washing system
- Yes automatic
- Sistema d'inchiostro
- Closed chamber doctor blades
- Anilox
- 15 ceramic anilox sleeves
- Maniche stampa
- Approx 180
- Ulteriori informazioni

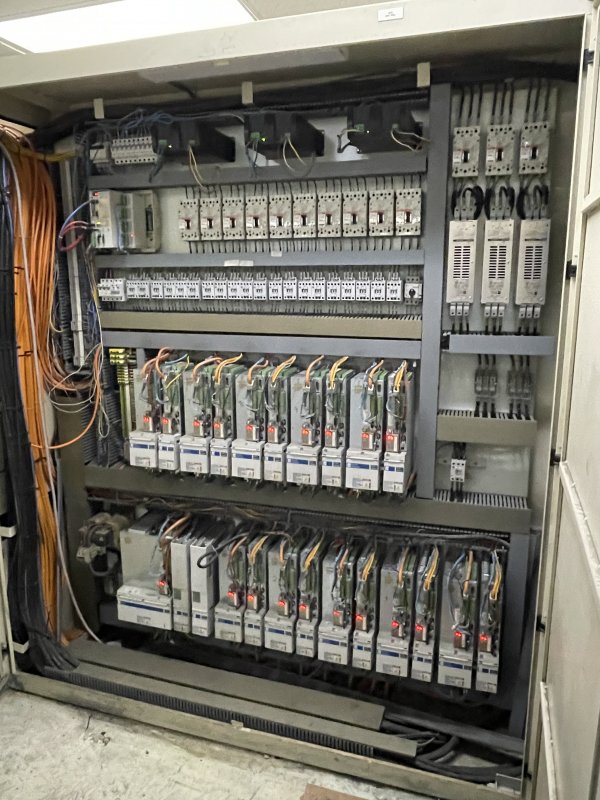

- Electronic shaft and drives from Bosch Rexroth Indramat CI drive system wit AC servomotors Precision print deck position, pat from PCMC with double recirculation ball guides top and bottom. PLate mandrel diam 105mm Anilox mandrel diam 121mm Outer diam aniolx 148 mm 2500mm CI diameter Electric and electronic spare parts available, . Price reduced for immediate purchase due to limited time for machine removal
| Codice Macchina | FL1065 |
| Manufacturer | PCMC |
| Modello | INFINITY |
| Year | 2005 |
| Numero di colori | 10 |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1270 |
| Larghezza stampa (mm) | 1240 |
| Min print repeat (mm) | 356 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret with fast reel loading (no shaft removal). Flying splice |
| Diametro massimo svolgitore (mm) | 800 |
| Rewinder type | Turret with fast reel un loading (no shaft removal). Flying splice |
| Max reel diameter rewinder (mm) | 800 |
| Essiccazione | eXtreme drying system from PCMC, High efficiency drying. Max set temperature 200C, Each eXtreme module has independent temperature control |
| Trattamento Corona | Enercon |
| Guida film | 2 BST web guides |
| Vyscosity control | Auto viscosity control form Inkspec, recently renovated |
| Washing system | Yes automatic |
| Sistema d'inchiostro | Closed chamber doctor blades |
| Anilox | 15 ceramic anilox sleeves |
| Maniche stampa | Approx 180 |
| Ulteriori informazioni | Electronic shaft and drives from Bosch Rexroth Indramat CI drive system wit AC servomotors Precision print deck position, pat from PCMC with double recirculation ball guides top and bottom. PLate mandrel diam 105mm Anilox mandrel diam 121mm Outer diam aniolx 148 mm 2500mm CI diameter Electric and electronic spare parts available, . Price reduced for immediate purchase due to limited time for machine removal |
