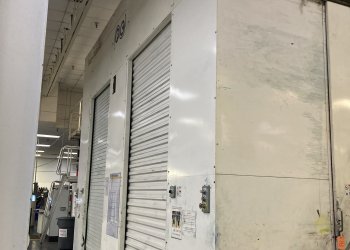

- Codice Macchina
- FL1064
- Manufacturer
- PCMC
- Modello
- FUSION
- Year
- 2012
- Numero di colori
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1320
- Larghezza stampa (mm)
- 1300
- Min print repeat (mm)
- 360
- Max print repeat (mm)
- 900
- Unwinder type
- Automatic Turret Non stop , upper and under splice
- Diametro massimo svolgitore (mm)
- 800
- Rewinder type
- Automatic Turret Non stop , upper and under splice
- Max reel diameter rewinder (mm)
- 800
- Essiccazione
- 2 zones 4 fans final tunnel
- Videocamera
- AVT ARGUS
- Trattamento Corona
- Yes Enercon 10 Kw Driven
- Guida film
- Yes in and out Web guide OPG type
- Vyscosity control
- INKSPEC
- Washing system
- Yes VORTEX HP pumping and wash up system with individual ink circulation and auto wash up control each deck
- Sistema d'inchiostro
- Closed chamber doctor blades with toolless blade clamping and changing
- Anilox
- 15 ceramic anilox sleeves
- Maniche stampa
- approx 350
- Ulteriori informazioni
- Max speed 450 mpm Materials LDPE, MDPE , HDPE up to 150 microns CPP up to 100 microns , PET up to 100 microns , Paper up to 120 gsm CI drum Hastalloy coated Available as optional: Plate mounter Heaford Cobra, year 2013. 4 cameras
| Codice Macchina | FL1064 |
| Manufacturer | PCMC |
| Modello | FUSION |
| Year | 2012 |
| Numero di colori | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1320 |
| Larghezza stampa (mm) | 1300 |
| Min print repeat (mm) | 360 |
| Max print repeat (mm) | 900 |
| Unwinder type | Automatic Turret Non stop , upper and under splice |
| Diametro massimo svolgitore (mm) | 800 |
| Rewinder type | Automatic Turret Non stop , upper and under splice |
| Max reel diameter rewinder (mm) | 800 |
| Essiccazione | 2 zones 4 fans final tunnel |
| Videocamera | AVT ARGUS |
| Trattamento Corona | Yes Enercon 10 Kw Driven |
| Guida film | Yes in and out Web guide OPG type |
| Vyscosity control | INKSPEC |
| Washing system | Yes VORTEX HP pumping and wash up system with individual ink circulation and auto wash up control each deck |
| Sistema d'inchiostro | Closed chamber doctor blades with toolless blade clamping and changing |
| Anilox | 15 ceramic anilox sleeves |
| Maniche stampa | approx 350 |
| Ulteriori informazioni | Max speed 450 mpm Materials LDPE, MDPE , HDPE up to 150 microns CPP up to 100 microns , PET up to 100 microns , Paper up to 120 gsm CI drum Hastalloy coated Available as optional: Plate mounter Heaford Cobra, year 2013. 4 cameras |
