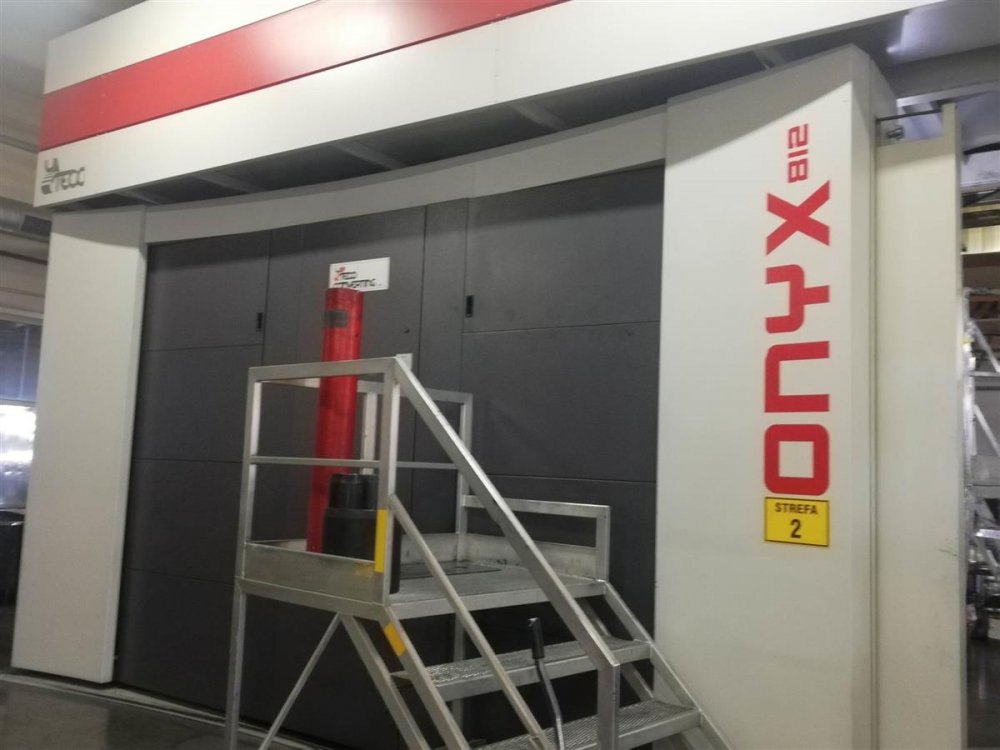

- Codice Macchina
- FL1035
- Manufacturer
- UTECO
- Modello

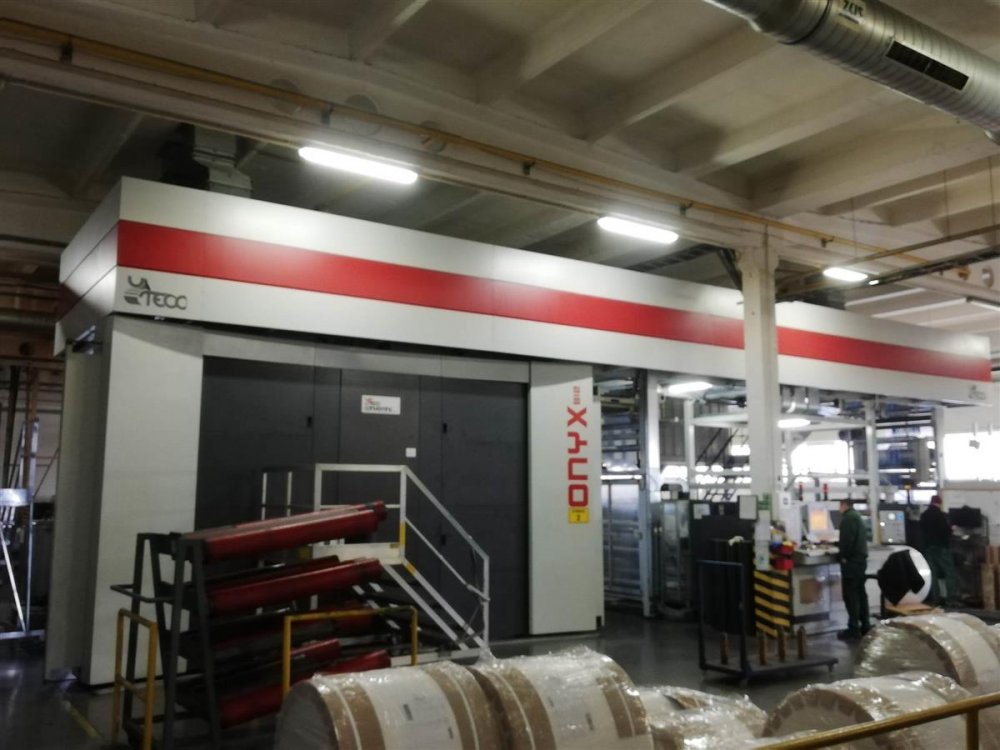

- ONYX 812 GL
- Year
- 2012
- Numero di colori
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes

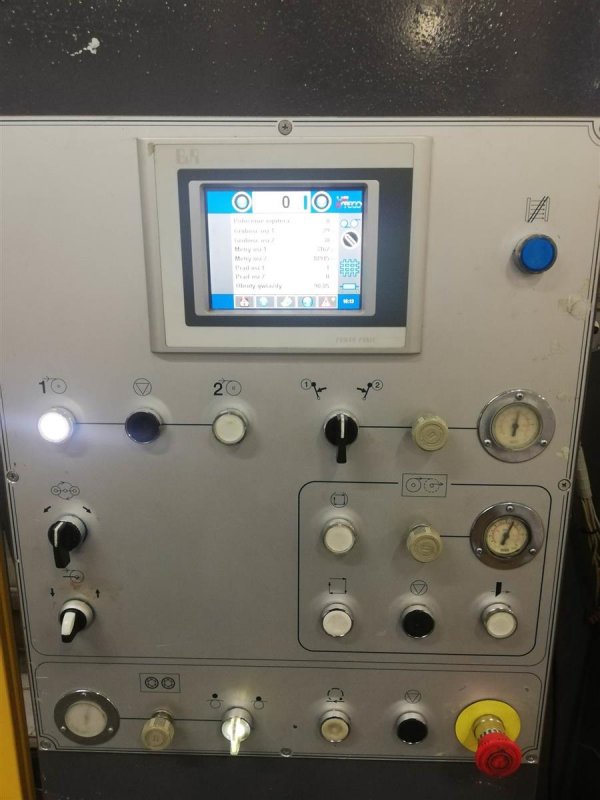

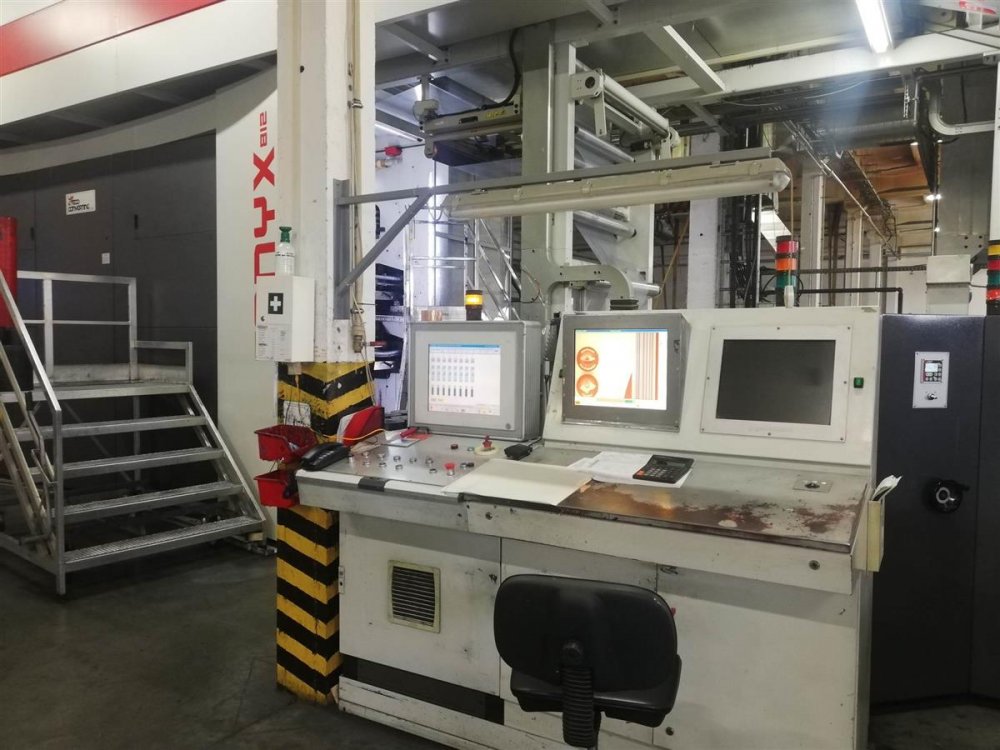

- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1250
- Larghezza stampa (mm)
- 1200
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 1250

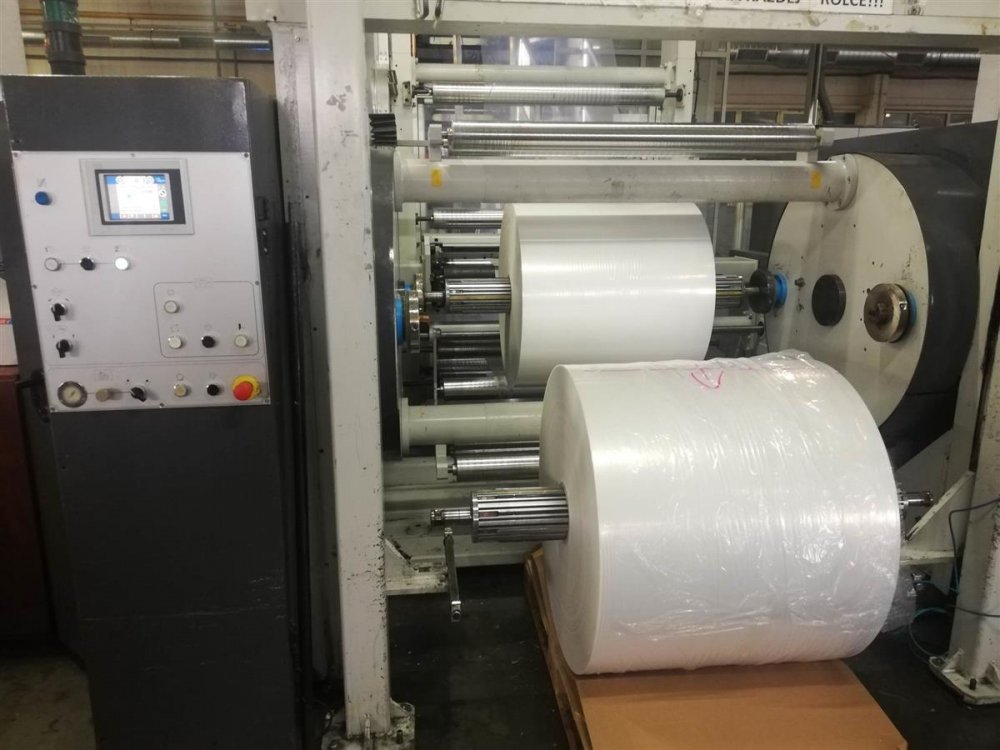

- Unwinder type
- Turret automatic
- Diametro massimo svolgitore (mm)
- 1000

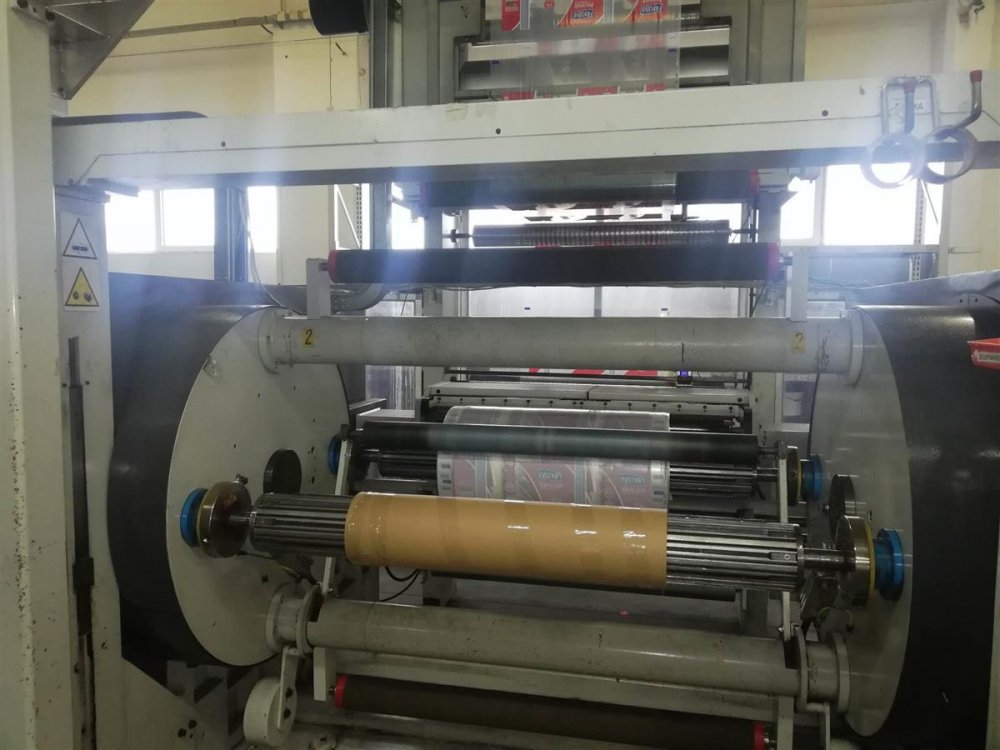

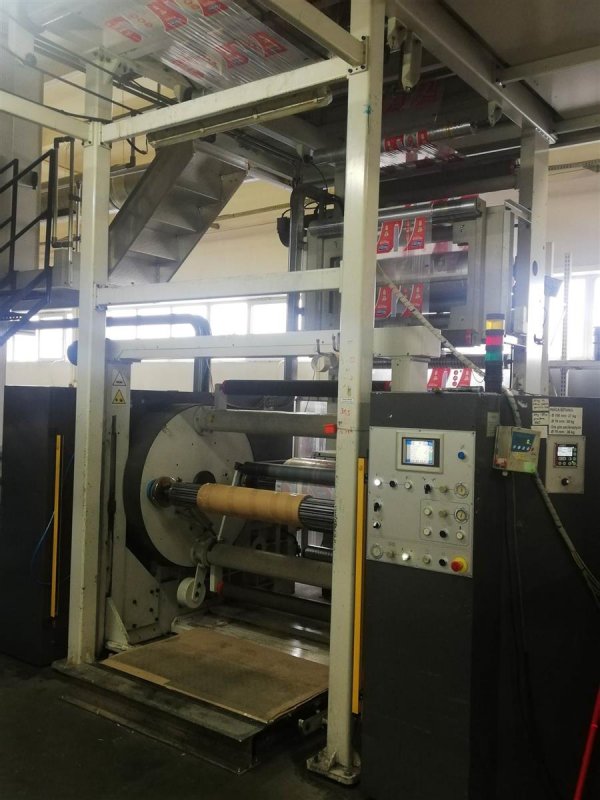

- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000

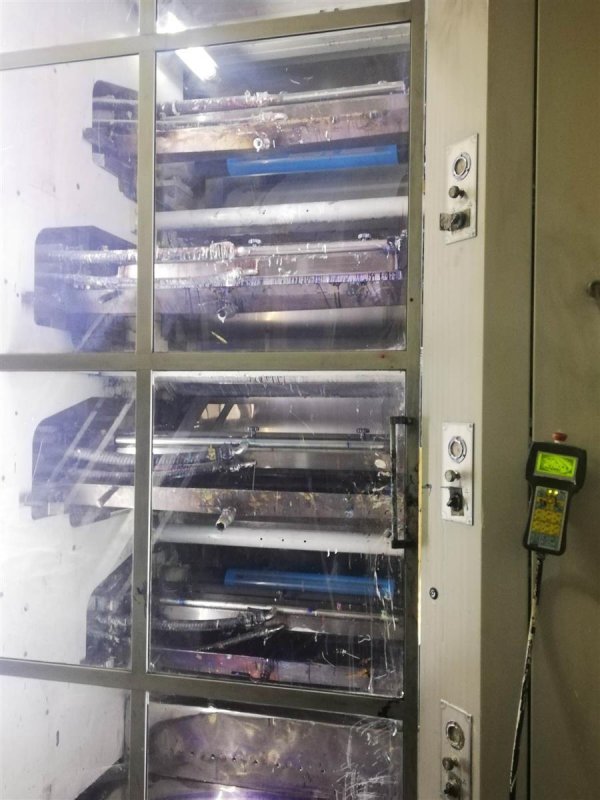

- Essiccazione
- Gas
- Videocamera
- grafiKontrol model CR34
- Trattamento Corona
- no
- Guida film
- in and out
- Vyscosity control
- GAMA VIS-G26
- Washing system
- Yes
- Sistema d'inchiostro
- Ceramic anilox + Chambered doctor blade
- Anilox
- 2X120lcm/12, 1x160lcm/12, 1x160lcm/15, 1x200lcm/10, 2x265lcm/7, 2x255lcm/8, 1x320lcm/7, 5x340lcm/5,5, 1x400lcm/4,5, 1x420lcm/4, 1x470lcm/3,5
- Maniche stampa
- Totally 175 pieces with 3 sets of carriers from 390 to 1135
- Ulteriori informazioni

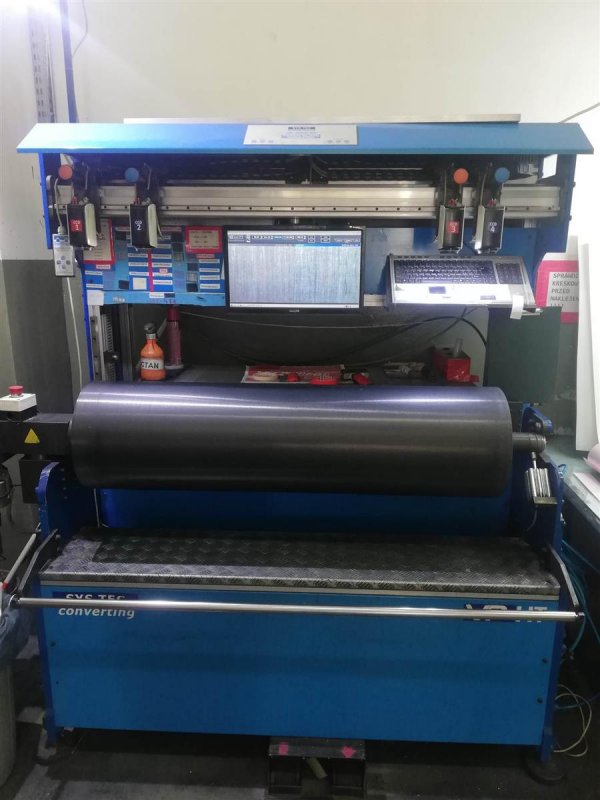

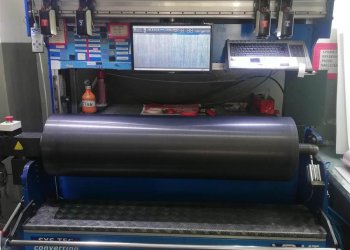

- Tension range: 3-36Kg Mechanical speed: 400m/min Plate mounter Systech
| Codice Macchina | FL1035 |
| Manufacturer | UTECO |
| Modello | ONYX 812 GL |
| Year | 2012 |
| Numero di colori | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1250 |
| Larghezza stampa (mm) | 1200 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 1250 |
| Unwinder type | Turret automatic |
| Diametro massimo svolgitore (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Essiccazione | Gas |
| Videocamera | grafiKontrol model CR34 |
| Trattamento Corona | no |
| Guida film | in and out |
| Vyscosity control | GAMA VIS-G26 |
| Washing system | Yes |
| Sistema d'inchiostro | Ceramic anilox + Chambered doctor blade |
| Anilox | 2X120lcm/12, 1x160lcm/12, 1x160lcm/15, 1x200lcm/10, 2x265lcm/7, 2x255lcm/8, 1x320lcm/7, 5x340lcm/5,5, 1x400lcm/4,5, 1x420lcm/4, 1x470lcm/3,5 |
| Maniche stampa | Totally 175 pieces with 3 sets of carriers from 390 to 1135 |
| Ulteriori informazioni | Tension range: 3-36Kg Mechanical speed: 400m/min Plate mounter Systech |
