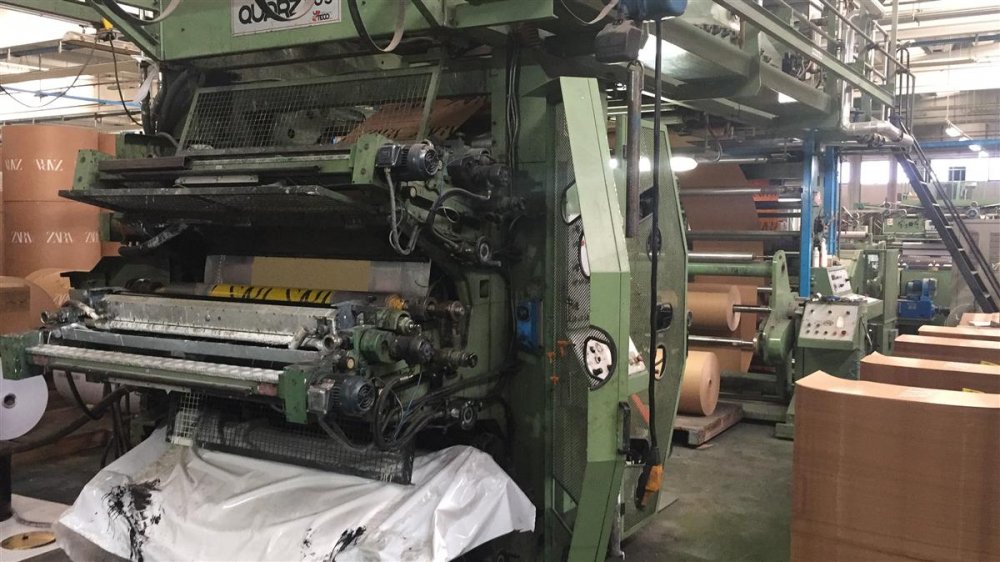

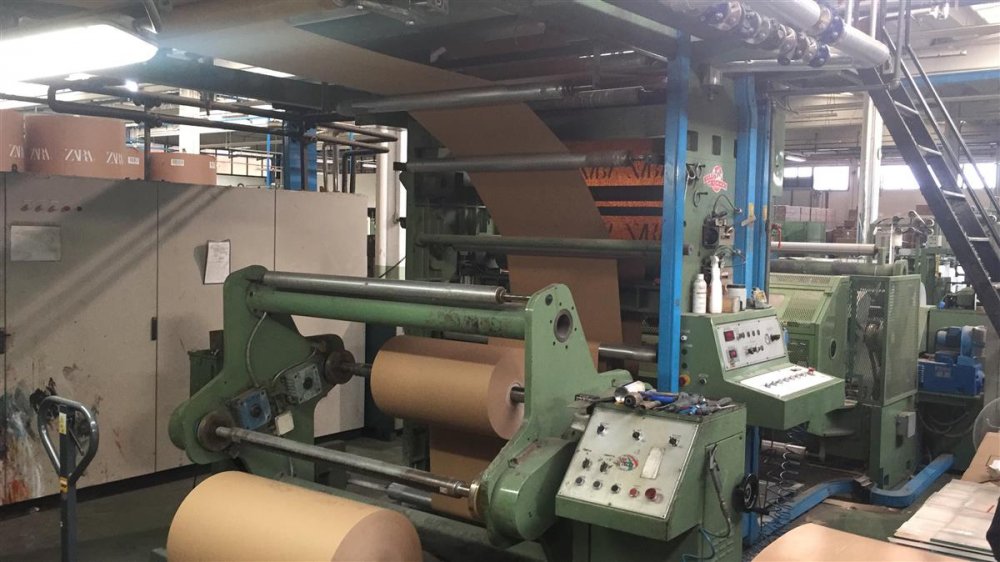

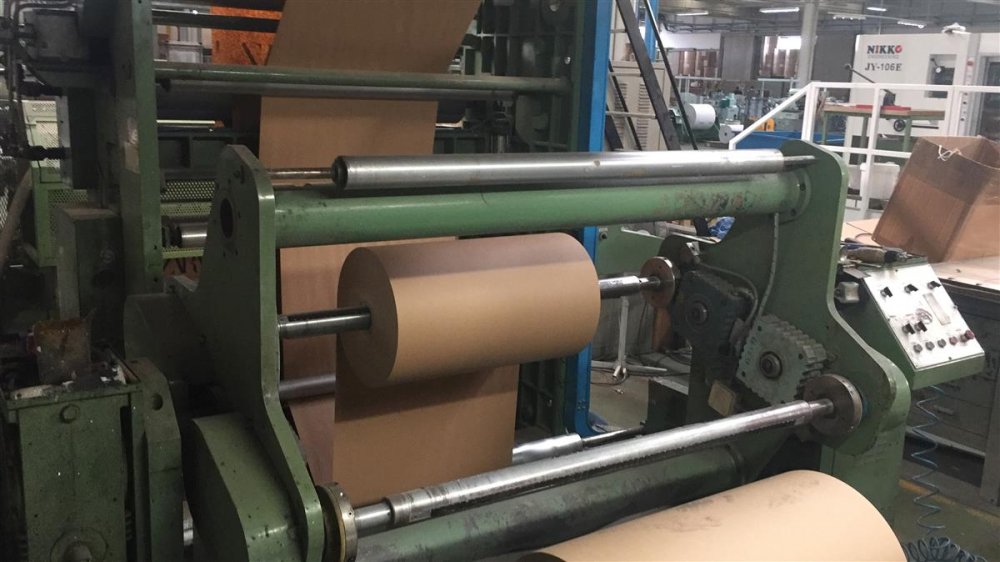

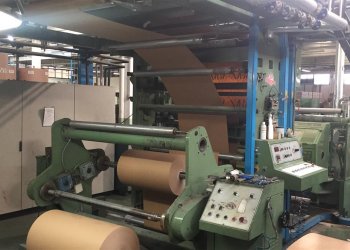

UTECO Quarz 603 Macchina da stampa flexo 6 colori

Codice Macchina
FL994
Manufacturer
UTECO
Model
Quarz 603
Year
1994
Numero di colori
6
Print possibilityes
6+0
Gearless
No
Cambio a maniche rapido
No
4 motor per deck CNC position system
No
Computer supervision
Yes
Larghezza nastro (mm)
1450
Larghezza stampa (mm)
1400
Min print repeat (mm)
350
Max print repeat (mm)
1000
Unwinder type
Semiautomatic turret drop Slice
Diametro massimo svolgitore (mm)
1000
Rewinder type
Automatic turret non stop
Max reel diameter rewinder (mm)
800
Essiccazione
2 zones 4 fans 3mt tunnel , Heating by steam with heat exchangers
Videocamera
BST
Anilox
20 ceramic anilox rolelrs between 60 l/cm and 320 l/cm
Cilindri stampa
10 x each of following repeats 35 cm, 38 , 40 , 45, 50 ,60 ; 6 for each following repeats 52cm, 54 , 65, 70 , 4 x 55 cm, and 65 ,
Codice Macchina FL994
Manufacturer UTECO
Model Quarz 603
Year 1994
Numero di colori 6
Print possibilityes 6+0
Gearless No
Cambio a maniche rapido No
4 motor per deck CNC position system No
Computer supervision Yes
Larghezza nastro (mm) 1450
Larghezza stampa (mm) 1400
Min print repeat (mm) 350
Max print repeat (mm) 1000
Unwinder type Semiautomatic turret drop Slice
Diametro massimo svolgitore (mm) 1000
Rewinder type Automatic turret non stop
Max reel diameter rewinder (mm) 800
Essiccazione 2 zones 4 fans 3mt tunnel , Heating by steam with heat exchangers
Videocamera BST
Anilox 20 ceramic anilox rolelrs between 60 l/cm and 320 l/cm
Cilindri stampa 10 x each of following repeats 35 cm, 38 , 40 , 45, 50 ,60 ; 6 for each following repeats 52cm, 54 , 65, 70 , 4 x 55 cm, and 65 ,
