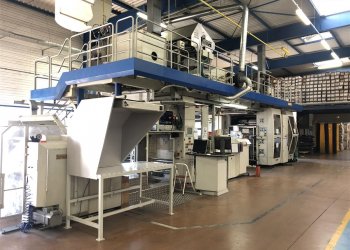

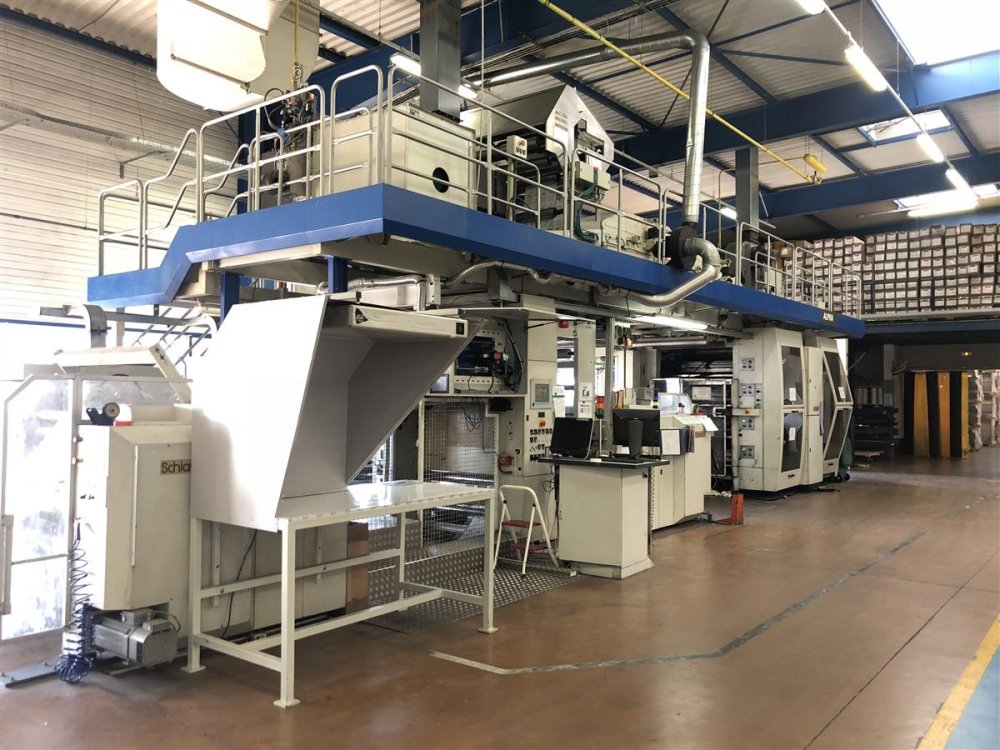

- Codice Macchina
- FL805
- Manufacturer
- SCHIAVI
- Modello

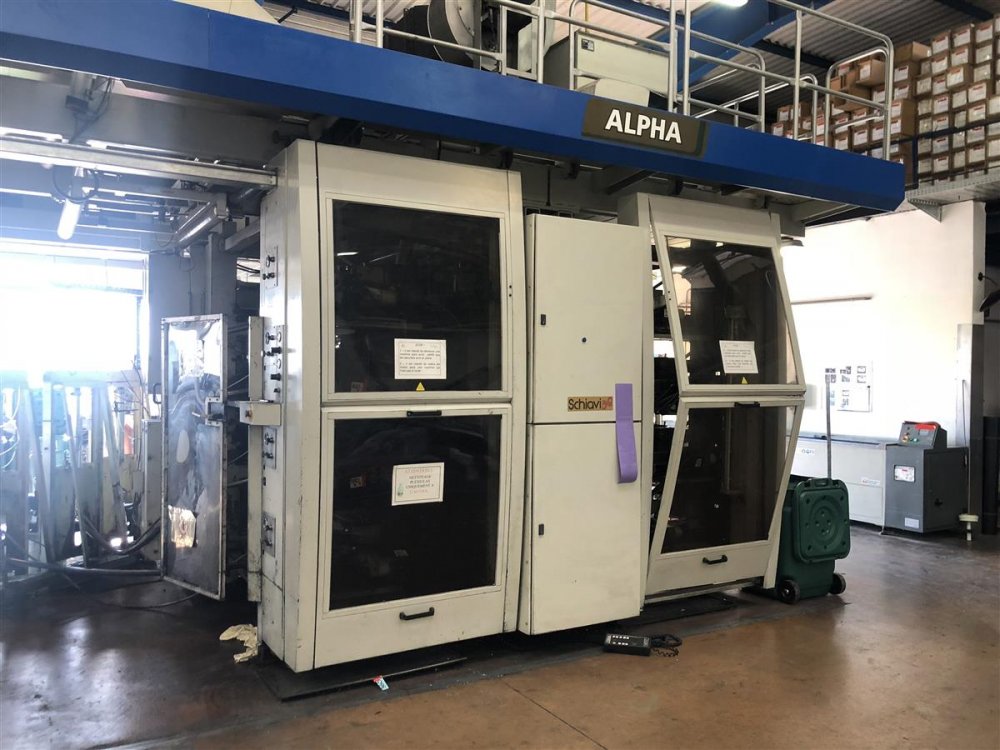

- ALPHA
- Year
- 2002
- Numero di colori
- 8
- Print possibilityes
- 8 col plus varnish
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes

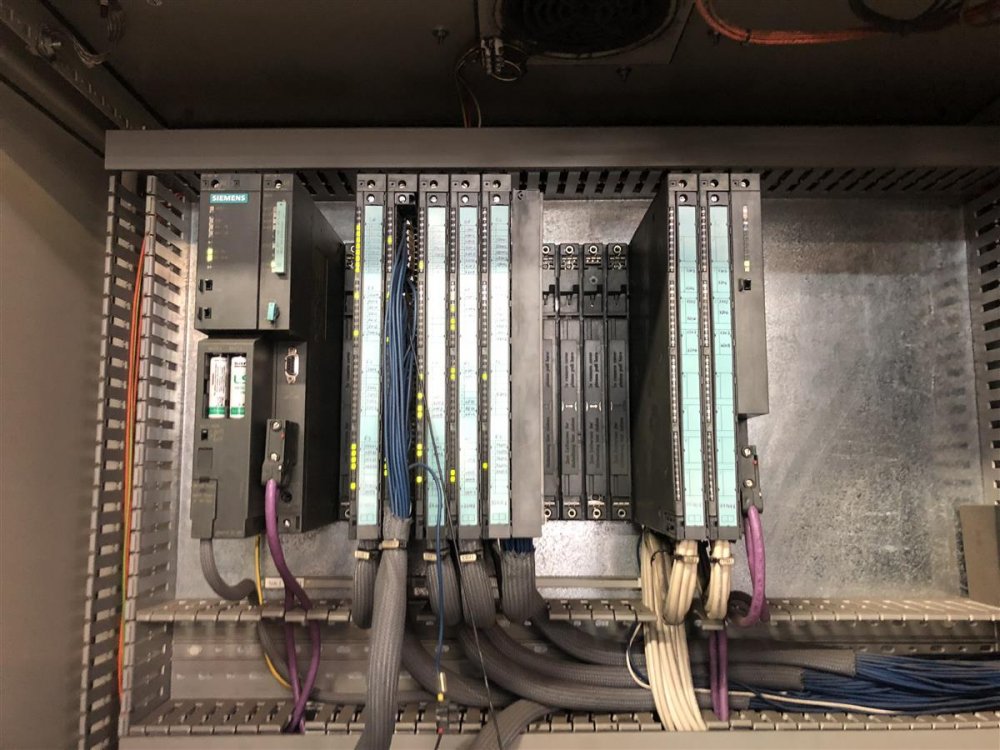

- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1270
- Larghezza stampa (mm)
- 1220
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 650
- Unwinder type
- TURRET
- Diametro massimo svolgitore (mm)
- 800
- Rewinder type
- TURRET
- Max reel diameter rewinder (mm)
- 800
- Essiccazione
- 2 Zone drying: drying tunnel and inte-rcolour, intependent ventilation and temperature setting. 4 fans, 2 gas burners
- Videocamera
- ELTROMAT video camera for printed side. second inspection system for varnish
- Trattamento Corona
- Sherman. Not complete and need repair
- Guida film
- 2x BST
- Vyscosity control
- no
- Sistema d'inchiostro
- Closed chambers doctor blades system . Chambers changed in 2014
- Anilox
- 12
- Maniche stampa
- 16x320, 15x330, 13x340, 16x345, 14x350, 12x360, 12x370, 9x380, 8x390, 12x400, 13x410, 15x420, 11x430, 13x440, 10x450, 15x460, 13x470, 16x480, 6x490, 8x500, 7x510, 24x520, 16x530, 11x540, 12x550, 10x560, 7x570, 8x580, 15x590, 11x600, 8x610, 8x620, 8x630, 8x640, 16x650
- Ulteriori informazioni
- In line in register varnishing system
Codice Macchina | FL805 |
Manufacturer | SCHIAVI |
Modello | ALPHA |
Year | 2002 |
Numero di colori | 8 |
Print possibilityes | 8 col plus varnish |
Gearless | Yes |
Cambio a maniche rapido | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Larghezza nastro (mm) | 1270 |
Larghezza stampa (mm) | 1220 |
Min print repeat (mm) | 320 |
Max print repeat (mm) | 650 |
Unwinder type | TURRET |
Diametro massimo svolgitore (mm) | 800 |
Rewinder type | TURRET |
Max reel diameter rewinder (mm) | 800 |
Essiccazione | 2 Zone drying: drying tunnel and inte-rcolour, intependent ventilation and temperature setting. 4 fans, 2 gas burners |
Videocamera | ELTROMAT video camera for printed side. second inspection system for varnish |
Trattamento Corona | Sherman. Not complete and need repair |
Guida film | 2x BST |
Vyscosity control | no |
Sistema d'inchiostro | Closed chambers doctor blades system . Chambers changed in 2014 |
Anilox | 12 |
Maniche stampa | 16x320, 15x330, 13x340, 16x345, 14x350, 12x360, 12x370, 9x380, 8x390, 12x400, 13x410, 15x420, 11x430, 13x440, 10x450, 15x460, 13x470, 16x480, 6x490, 8x500, 7x510, 24x520, 16x530, 11x540, 12x550, 10x560, 7x570, 8x580, 15x590, 11x600, 8x610, 8x620, 8x630, 8x640, 16x650 |
Ulteriori informazioni | In line in register varnishing system |
