DCM LAMINASTAR2 Ламинаторы Solventless

Machine code LA315
Manufacturer DCM
Model LAMINASTAR2
Year 1996
Application Duplex lamination
Type of lamination/coating Solventless
Overhaul/renovation 2008 web edge guides, potentiometer, Memory CPU from 2020.
Working width (mm) 1210
Materials Paper from 80 gsm and films from 12my
Speed max 300 m/min
First unwinder type Single
Max diameter reel unwinder 1000
Secondary unwinder type Single
Max diameter reel unwinder 1000
Rewinder type Single
Max diameter reel rewinder 1000
Coating unit Solventless
Register controll no
Pumping mixing unit 2010 year Liquid Control Ltd
Corona treatment Vetaphone ET3 1995 not working
Coating rollers 62 sleeves from 390 to 1210, 3 new ones
Additional information Web width 1350mm - 2 web guide systems (from 2008 year) - Speed Control (from 2008) •Set of new spare air hoses in the wooden case •Full instruction manuals in English and French •Roll lifting hoists

Others in the same category:

2982 - SCHIAVI  CONVERJET

SCHIAVI CONVERJET

Category: Converting machines

Subcategory: Laminators and coaters

Working width (mm): 1220

Year: 1998

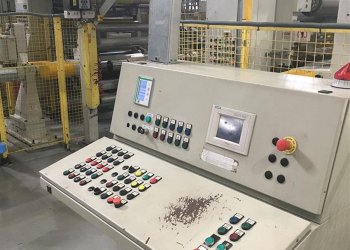

2970 - ROTOMEC

ROTOMEC

Category: Converting machines

Subcategory: Laminators and coaters

Working width (mm): 1430

Year: 1997

203628 - NORDMECCANICA SIMPLEX COMBI

NORDMECCANICA SIMPLEX COMBI

Category: Converting machines

Subcategory: Laminators and coaters

Working width (mm): 1300

Year: 1996

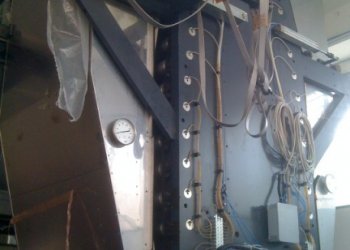

8544 - UTECO CORAL

UTECO CORAL

Category: Converting machines

Subcategory: Laminators and coaters

Working width (mm): 900

Year: 2006
