6 colors CARINT GEMINI mod 120 Флексографской печатной машины ** SOLD ** Ask more informations About a Similar One

Machine code FL747
Manufacturer CARINT
Model GEMINI mod 120
Year 1998
Number of colors 6
Gearless No
Fast sleeve change No
Web width (mm) 1250
Print width (mm) 1200
Max reel diameter unwinder (mm) 800
Rewinder type Non stop
Drying Gas
Web guides BST with camera and monitor
Inking system Type of inks : solvent based
Anilox Ceramic anilox :1x(100-140-180-420) 2x240 4x(120-320)
Print Sleeves Sleeves Rosini for cylinder 89:7x650,5x640,6x(520-560)mm
Print cylinders Steel cylinders 6x(360-390-490)mm

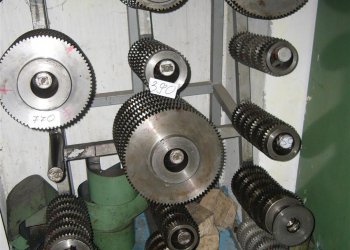

Additional information Material : PE,PP & Polyester - web tension area min-max : 2-18 kg Mechanical speed : 250 m/min /Printing speed : up to 200m/min Plate thickness : 2.84mm /Stickyback thickness : 0.5mm Gearing : 5mm (helical gear) 20 degrees Color unit intermediate drying and bridge drying (gas heated - 1 circle) Draw unit with web tension control and cooling roller behind bridge drying Semi automatic turret unwind type SSC with 2 winding stations for reel diameter 800mm and max weight 700kg .Core inner diameter : 76mm 2 pneumatic bended roll shafts .Lateral edge guide control after unwind Lateral edge guide control prior to rewind . Non stop automatic turret rewind type RSC with 2 winding stations for max reel diameter 800mm and max weight 700kg .Core inner diameter : 76mm Longitudinal cutting device (selfmade) .DC Drive Gears : 6x(335-340-350-380-390-400-410-420-430-440-460-480-490-500-510-520-530-550-580-600-620-640-660) ; 7x360 ;12x560mm

** SOLD **
