- Machine code
- FL704
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello

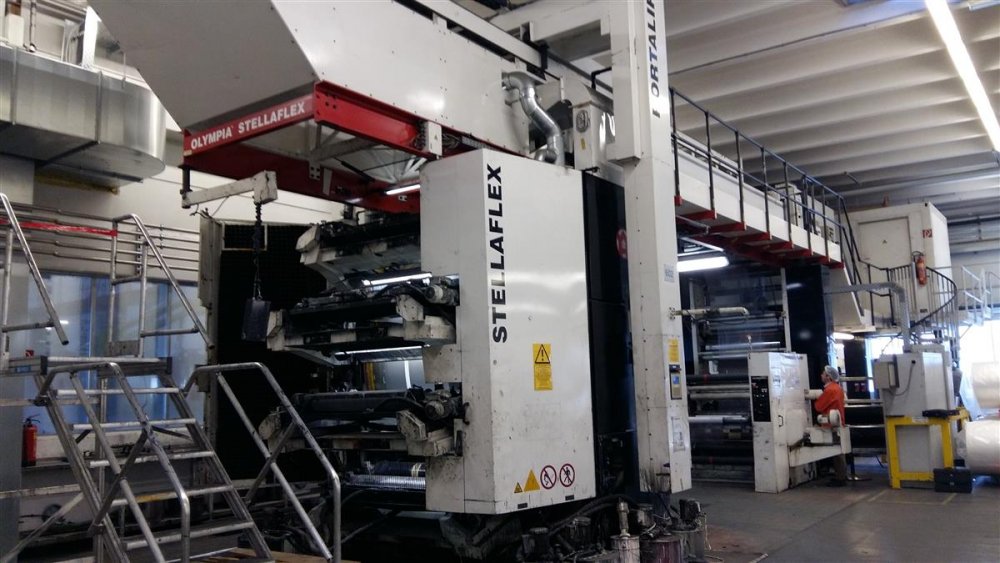

- STELLAFLEX
- Year
- 1997
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 1060
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones 4 fans - steam heat exchangers
- Videocamera
- BST
- Web guides
- BST in and out
- Vyscosity control
- yes automatic
- Inking system
- closed chamber doctor blades
- Anilox
- 16 ceramic anilox
- Print Sleeves
- approx 180
- Print cylinders
- 2 sets of mandrels
- Note
- Electric controls in air conditioned container Portalift Robotized system to change print cylinders and anilox rollers
| Machine code | FL704 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | STELLAFLEX |
| Year | 1997 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 1060 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones 4 fans - steam heat exchangers |
| Videocamera | BST |
| Web guides | BST in and out |
| Vyscosity control | yes automatic |
| Inking system | closed chamber doctor blades |
| Anilox | 16 ceramic anilox |
| Print Sleeves | approx 180 |
| Print cylinders | 2 sets of mandrels |
| Note | Electric controls in air conditioned container Portalift Robotized system to change print cylinders and anilox rollers |
