- Codice Macchina
- FI194
- Manufacturer
- LEMO
- Modello
- INTERMAT DKT 850.1
- Year
- 1994
- Type of delivery
- Wicketer)
- Type of handle
- Patch handle
- Type of sealing/bags
- Side weld
- Tipo di sacchetti
- Patch handles
- Rinnovo
- Renovated in 2010
- Larghezza lavoro (mm)
- 1350
- Lunghezza sacchetti
- 600mm draw lenght
- Larghezza sacchetti
- 850mm cutting width
- Cicli/min
- 150
- Svolgitore

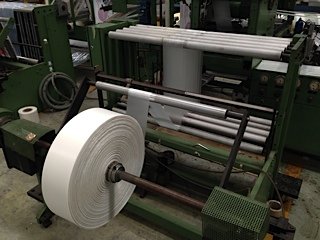

- RAE-QA 1350 jumbo reel unwinder ; reel diam max 1200mm. Unwinder for patch film; AWP 1350 pneumatically tensible expansion unwind shaft for 76 mm core diam.
- Ulteriori informazioni

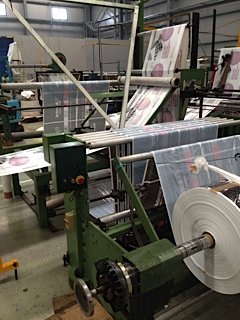

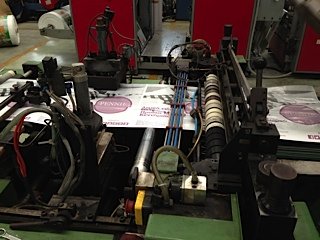

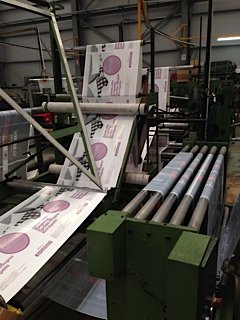

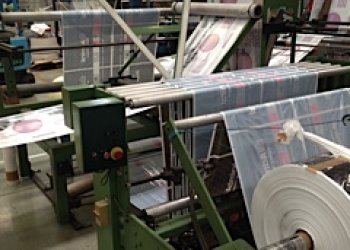

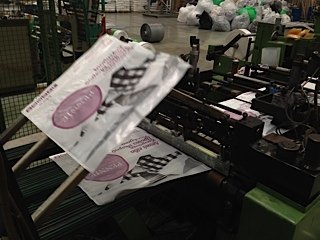

- Machine for production of side weld patch handle and carrier bags with internal glued reinforcement. Made of suitable polyethylene film LDPE, and HDPE, and blends . Sealing and cutting width max 850mm; draw lenght: max600mm; Line speed max 60m/min ; Individual draw rollers and single lane print repeat control; ARV 850 automatic control system for fine adjustment during machine operation; STW 850 side seal sealing unit for lDPE ; LLDPE, HDPE; ST850/TRL wicket stacker for collecting and stacking of bags; KSM-OM1350 central film guiding unit with optical sensing system and electromotive adjusting system;FD 1350 folding station with folding triangle to fold the flat film into a semi-tube;Frame for folding triangle on unwinder; DKT 850/left- additional equipment for the production of carrier bags with internally glued reinforcement patch (starting from single-wound sheet). Machine frame in steel-angle iron construction. C-shape punching unit Kaiser shape; Unwinder for patch film up to 280mm total width. execution with new hotmelt glue system.
Codice Macchina | FI194 |
Manufacturer | LEMO |
Modello | INTERMAT DKT 850.1 |
Year | 1994 |
Type of delivery | Wicketer) |
Type of handle | Patch handle |
Type of sealing/bags | Side weld |
Tipo di sacchetti | Patch handles |
Rinnovo | Renovated in 2010 |
Larghezza lavoro (mm) | 1350 |
Lunghezza sacchetti | 600mm draw lenght |
Larghezza sacchetti | 850mm cutting width |
Cicli/min | 150 |
Svolgitore | RAE-QA 1350 jumbo reel unwinder ; reel diam max 1200mm. Unwinder for patch film; AWP 1350 pneumatically tensible expansion unwind shaft for 76 mm core diam. |
Ulteriori informazioni | Machine for production of side weld patch handle and carrier bags with internal glued reinforcement. Made of suitable polyethylene film LDPE, and HDPE, and blends . Sealing and cutting width max 850mm; draw lenght: max600mm; Line speed max 60m/min ; Individual draw rollers and single lane print repeat control; ARV 850 automatic control system for fine adjustment during machine operation; STW 850 side seal sealing unit for lDPE ; LLDPE, HDPE; ST850/TRL wicket stacker for collecting and stacking of bags; KSM-OM1350 central film guiding unit with optical sensing system and electromotive adjusting system;FD 1350 folding station with folding triangle to fold the flat film into a semi-tube;Frame for folding triangle on unwinder; DKT 850/left- additional equipment for the production of carrier bags with internally glued reinforcement patch (starting from single-wound sheet). Machine frame in steel-angle iron construction. C-shape punching unit Kaiser shape; Unwinder for patch film up to 280mm total width. execution with new hotmelt glue system. |
