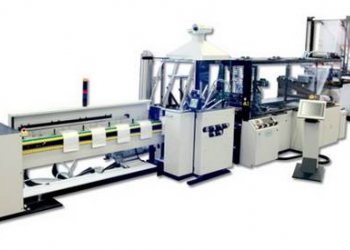

LEMO INTERMAT IL 600 ST-N Saldatrice per sacchetti Wicketers // Film bag making // Bag making // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

** SOLD **

Photo Gallery

Codice Macchina: FI249
Manufacturer: LEMO
Modello: INTERMAT IL 600 ST-N
Year: 2010
Tipo di sacchetti: Wicketers
Larghezza lavoro (mm): 600
Lunghezza sacchetti: 150-420mm draw lenght
Cicli/min: 450 - mechanical layout, without film .Line speed min 15m/min; max 100m/min

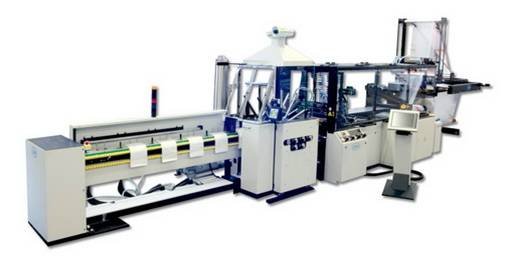

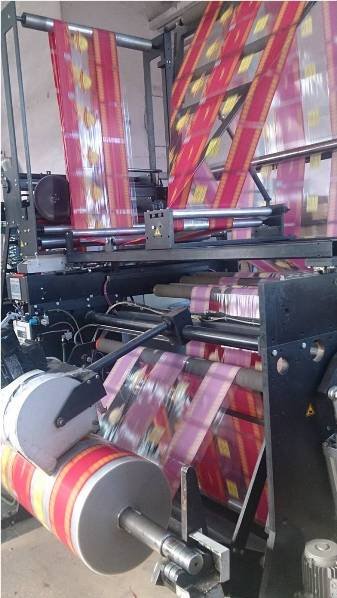

Ulteriori informazioni: Wicket bread bag making machine (equipped with servo drive technology and computer function control). Useable sealing and cutting width 600mm Bag height 200-600mm . Output : from 200 to 360 bags/min (depends on the type of bag and material) . Materials : HDPE, LDPE, LLDPE,PP,CPP .Film thickness from 18 to 50 my. Machine dimensions : 11,2x 2,6 x3,2m (including attachments). Energy consumption up to 20 kw (80A ). Film unwind unit (with automatic tension control) Material alignement device (unwinding). Punching bridge for ventilation holes. Micro -perforation option. Pneumatic dual hole punch for wicket hole punching. Strong bottom option. Wicket stacker for collecting and stacking of bags ( bags per stack : max 500 bags) Control panel touch screen. Cooling water system self-contained. 2 sets sealing knife. 2 sets Teflon shaft.Spare parts available.

Codice Macchina	FI249
Manufacturer	LEMO
Modello	INTERMAT IL 600 ST-N
Year	2010
Tipo di sacchetti	Wicketers
Larghezza lavoro (mm)	600
Lunghezza sacchetti	150-420mm draw lenght
Cicli/min	450 - mechanical layout, without film .Line speed min 15m/min; max 100m/min
Ulteriori informazioni	Wicket bread bag making machine (equipped with servo drive technology and computer function control). Useable sealing and cutting width 600mm Bag height 200-600mm . Output : from 200 to 360 bags/min (depends on the type of bag and material) . Materials : HDPE, LDPE, LLDPE,PP,CPP .Film thickness from 18 to 50 my. Machine dimensions : 11,2x 2,6 x3,2m (including attachments). Energy consumption up to 20 kw (80A ). Film unwind unit (with automatic tension control) Material alignement device (unwinding). Punching bridge for ventilation holes. Micro -perforation option. Pneumatic dual hole punch for wicket hole punching. Strong bottom option. Wicket stacker for collecting and stacking of bags ( bags per stack : max 500 bags) Control panel touch screen. Cooling water system self-contained. 2 sets sealing knife. 2 sets Teflon shaft.Spare parts available.
