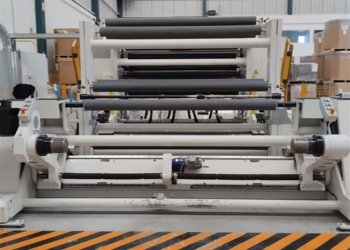

- Codice Macchina
- SR550
- Manufacturer
- SAGE
- Modello
- BVR 120
- Year
- 2016
- Larghezza lavoro (mm)
- 2100
- Materiali
- CPP (25my-100my 300-400m/min ; over 100my 400-500m/min)
- Velocità
- 600m/min
- Unwinder type
- Shaftless AC motor driven , double unwinding direction, 3" and 6 " cores
- Diametro massimo bobina svolgitore
- 1000
- Rewinder type
- Center and surface driven with independent arms
- Diametro massimo bobina avvolgitore
- 800
- Descrizione avvolgitore
- 4 rewinding stations each one driven by brushless motor woth automatic tension control . Motorized and automatic positioning of rewinding arms . 4 lay on rolls 300 mm wide, 4 x500 mm , 3 x 1000, 2 x 1500 . Trim exhaust
- Larghezza taglio minima
- 200 mm
- Coltelli
- Rotary knives slitter with 5 knives and counter knives . Lase system for knives positioning
- Ulteriori informazioni
- Webguide FIFE Control Panel PLC Siemens S7-300 . Complete comuter control of all operation parameters
| Codice Macchina | SR550 |
| Manufacturer | SAGE |
| Modello | BVR 120 |
| Year | 2016 |
| Larghezza lavoro (mm) | 2100 |
| Materiali | CPP (25my-100my 300-400m/min ; over 100my 400-500m/min) |
| Velocità | 600m/min |
| Unwinder type | Shaftless AC motor driven , double unwinding direction, 3" and 6 " cores |
| Diametro massimo bobina svolgitore | 1000 |
| Rewinder type | Center and surface driven with independent arms |
| Diametro massimo bobina avvolgitore | 800 |
| Descrizione avvolgitore | 4 rewinding stations each one driven by brushless motor woth automatic tension control . Motorized and automatic positioning of rewinding arms . 4 lay on rolls 300 mm wide, 4 x500 mm , 3 x 1000, 2 x 1500 . Trim exhaust |
| Larghezza taglio minima | 200 mm |
| Coltelli | Rotary knives slitter with 5 knives and counter knives . Lase system for knives positioning |
| Ulteriori informazioni | Webguide FIFE Control Panel PLC Siemens S7-300 . Complete comuter control of all operation parameters |
