- Codice Macchina
- LA165
- Manufacturer
- ROTOMEC
- Modello
- CL 1000 D HD 1750/450
- Year
- 2009
- Applicazione
- Duplex lamination
- Tipo di accoppiamento/spalmatura
- COMBI / INTECHANGEABLE TROLLEY
- Larghezza lavoro (mm)
- 1750
- Materiali
- PET, BOPP, OPA, PAPER, ALU, PE, PP CAST
- Velocità
- 450m/min max mechanical speed. Max. operating speed according to working processes, materials, inks and solvent used 430m/min. Min. operating speed 30m/min. Automatic splices max.speed 400m/min.

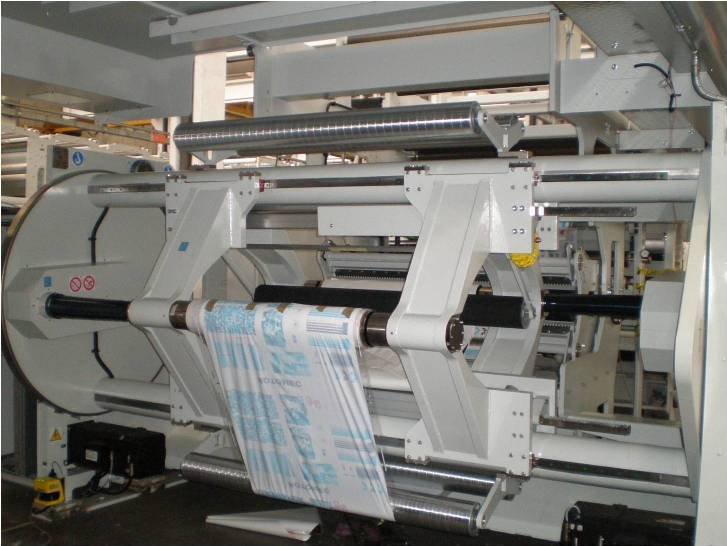

- Tipo svolgitore primario
- TURRET AUTOMATIC
- Diametro massimo bobina svolgitore
- 1300
- Tipo svolgitore secondario
- TURRET AUTOMATIC
- Diametro massimo bobina svolgitore
- 1300

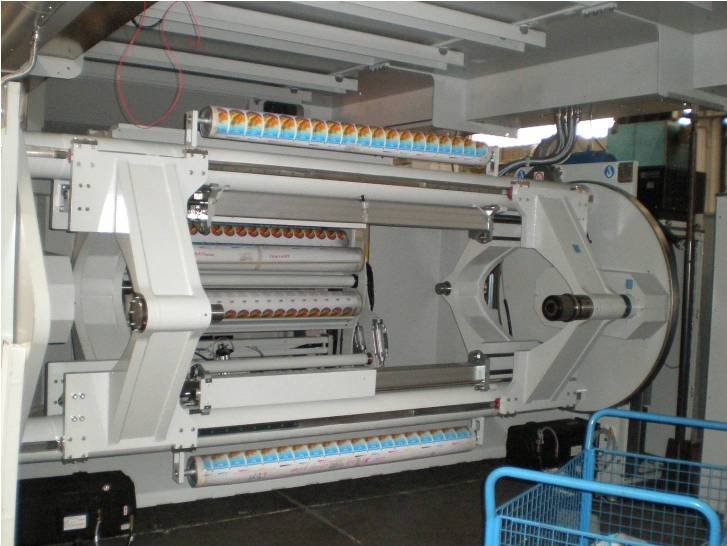

- Rewinder type
- TURRET AUTOMATIC
- Diametro massimo bobina avvolgitore
- 1300

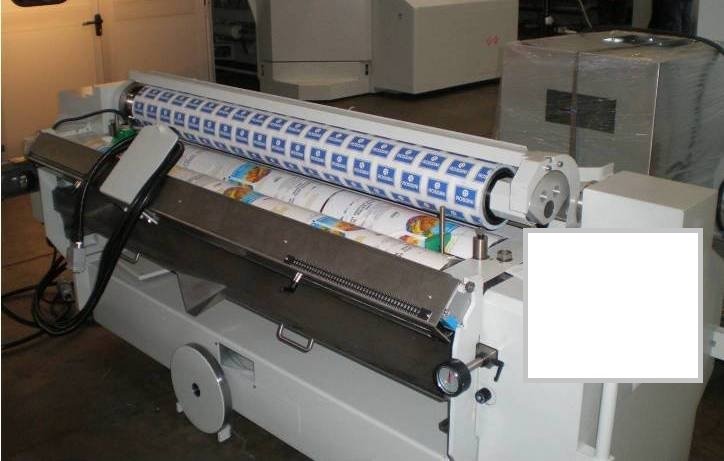

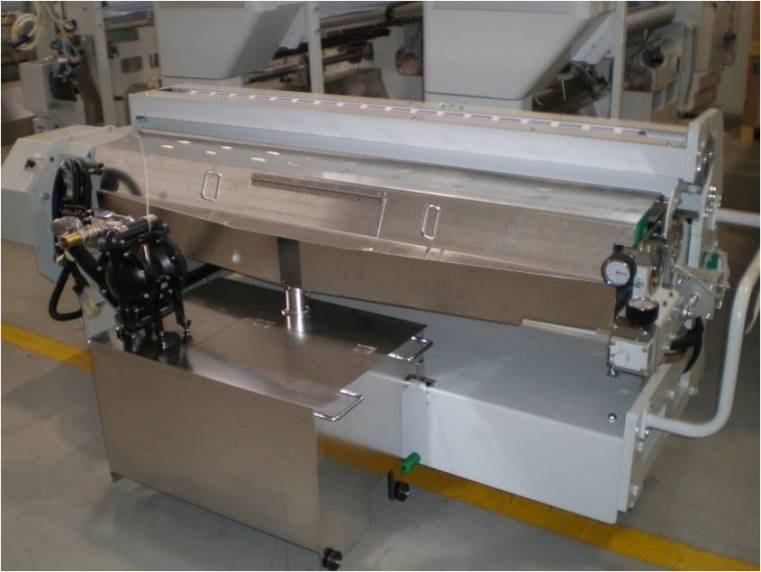

- Unità di spalmatura
- Rotogravure and solventless . Coating system with interchangeable trolley suitable for rotogravure and solventless
- Essiccazione
- 4 drying zones, 4 sections 2.300mm each, 4 blowing fan. Tunnel flooting type. 4 thermal oil heaters
- Trattamento Corona
- on primary and secondary unwinder
- Ulteriori informazioni
- The machine is equipped with quick stop for web breaking and LEL alarm, . Protection against the oxidation for printing or coating with water based inks or lacquers on the coating unit. .Electric web breaking detector.Web guides Unwinders - 4 self-expanding chucks for 76mm & 152mm; Rewinder : 4-self-expanding chucks for 152mm. Calender. Web tension control after each unwinder. Web guide after each unwinder and before rewinding.
| Codice Macchina | LA165 |
| Manufacturer | ROTOMEC |
| Modello | CL 1000 D HD 1750/450 |
| Year | 2009 |
| Applicazione | Duplex lamination |
| Tipo di accoppiamento/spalmatura | COMBI / INTECHANGEABLE TROLLEY |
| Larghezza lavoro (mm) | 1750 |
| Materiali | PET, BOPP, OPA, PAPER, ALU, PE, PP CAST |
| Velocità | 450m/min max mechanical speed. Max. operating speed according to working processes, materials, inks and solvent used 430m/min. Min. operating speed 30m/min. Automatic splices max.speed 400m/min. |
| Tipo svolgitore primario | TURRET AUTOMATIC |
| Diametro massimo bobina svolgitore | 1300 |
| Tipo svolgitore secondario | TURRET AUTOMATIC |
| Diametro massimo bobina svolgitore | 1300 |
| Rewinder type | TURRET AUTOMATIC |
| Diametro massimo bobina avvolgitore | 1300 |
| Unità di spalmatura | Rotogravure and solventless . Coating system with interchangeable trolley suitable for rotogravure and solventless |
| Essiccazione | 4 drying zones, 4 sections 2.300mm each, 4 blowing fan. Tunnel flooting type. 4 thermal oil heaters |
| Trattamento Corona | on primary and secondary unwinder |
| Ulteriori informazioni | The machine is equipped with quick stop for web breaking and LEL alarm, . Protection against the oxidation for printing or coating with water based inks or lacquers on the coating unit. .Electric web breaking detector.Web guides Unwinders - 4 self-expanding chucks for 76mm & 152mm; Rewinder : 4-self-expanding chucks for 152mm. Calender. Web tension control after each unwinder. Web guide after each unwinder and before rewinding. |
