- Codice Macchina
- LA472
- Manufacturer
- ISOTEX
- Year
- 2014
- Applicazione
- Coating
- Tipo di accoppiamento/spalmatura
- SOLVENT / WATER BASED
- Larghezza lavoro (mm)
- 1700
- Materiali
- Paper laminates and film
- Velocità
- 140 m/min
- Tipo svolgitore primario

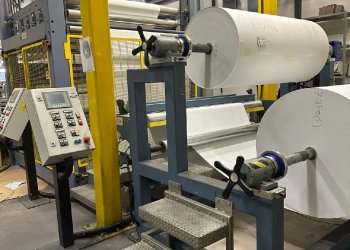

- 2 Shaft unwinder with materials strorage for non stop splicing. Material accumulation/storage for reel change, 120m material
- Diametro massimo bobina svolgitore
- 1000
- Rewinder type
- Turret with flying slice
- Diametro massimo bobina avvolgitore
- 1000
- Unità di spalmatura

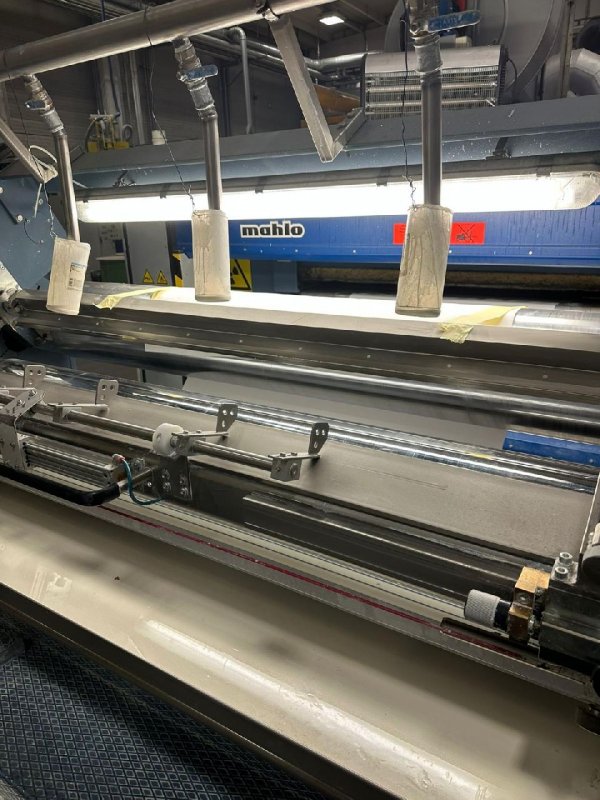

- Revers roll coating unit. Doing roller 292mm diam, Coating roller 292mm diam, counter impression roller 350 diam. Smoothening colander with 30KW IR drying
- Essiccazione
- Drying tunnel total length 15m . 5 hoods of 3m each. Max temperature 250 C, 5 drying zones with 5in-blow fans inverter controlled,. Exhaust suction 3 fans inverter controlled. Heat source with 5 gas burners. In combination with Infra red drying
- Ulteriori informazioni
- Install power approx 192 kW (including IR) Coating thickness gauge, type beta rays, source Kr85.
| Codice Macchina | LA472 |
| Manufacturer | ISOTEX |
| Year | 2014 |
| Applicazione | Coating |
| Tipo di accoppiamento/spalmatura | SOLVENT / WATER BASED |
| Larghezza lavoro (mm) | 1700 |
| Materiali | Paper laminates and film |
| Velocità | 140 m/min |
| Tipo svolgitore primario | 2 Shaft unwinder with materials strorage for non stop splicing. Material accumulation/storage for reel change, 120m material |
| Diametro massimo bobina svolgitore | 1000 |
| Rewinder type | Turret with flying slice |
| Diametro massimo bobina avvolgitore | 1000 |
| Unità di spalmatura | Revers roll coating unit. Doing roller 292mm diam, Coating roller 292mm diam, counter impression roller 350 diam. Smoothening colander with 30KW IR drying |
| Essiccazione | Drying tunnel total length 15m . 5 hoods of 3m each. Max temperature 250 C, 5 drying zones with 5in-blow fans inverter controlled,. Exhaust suction 3 fans inverter controlled. Heat source with 5 gas burners. In combination with Infra red drying |
| Ulteriori informazioni | Install power approx 192 kW (including IR) Coating thickness gauge, type beta rays, source Kr85. |
