- Codice Macchina
- FL488
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- ASTRAFLEX
- Year
- 2000
- Numero di colori
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Cambio a maniche rapido
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1620
- Larghezza stampa (mm)
- 1570
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 1010
- Unwinder type
- TURRET AUTOMATIC
- Diametro massimo svolgitore (mm)
- 1000
- Rewinder type
- TURRET AUTOMATIC
- Max reel diameter rewinder (mm)
- 1000
- Essiccazione
- electric
- Videocamera
- BST
- Trattamento Corona
- YES
- Guida film
- BST
- Vyscosity control
- No
- Sistema d'inchiostro
- Closed chamber Doctor blades
- Anilox
- 13 pcs from 80L/cm to 340L/cm
- Maniche stampa
- 296 - sleeve change out of the machine
- Cilindri stampa

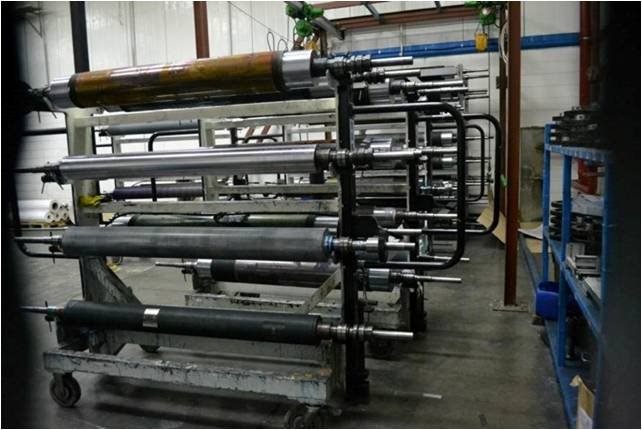

- Sleeve change out of the machine - Robotic system for fast change of mandrels/ cylinders in the machine
- Ulteriori informazioni
- Output : 364m/min ; Material PE , LDPE, PP, Polyamide, Hdpe, OPP, Paper.Include all parts & accessories.
| Codice Macchina | FL488 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | ASTRAFLEX |
| Year | 2000 |
| Numero di colori | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Cambio a maniche rapido | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1620 |
| Larghezza stampa (mm) | 1570 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 1010 |
| Unwinder type | TURRET AUTOMATIC |
| Diametro massimo svolgitore (mm) | 1000 |
| Rewinder type | TURRET AUTOMATIC |
| Max reel diameter rewinder (mm) | 1000 |
| Essiccazione | electric |
| Videocamera | BST |
| Trattamento Corona | YES |
| Guida film | BST |
| Vyscosity control | No |
| Sistema d'inchiostro | Closed chamber Doctor blades |
| Anilox | 13 pcs from 80L/cm to 340L/cm |
| Maniche stampa | 296 - sleeve change out of the machine |
| Cilindri stampa | Sleeve change out of the machine - Robotic system for fast change of mandrels/ cylinders in the machine |
| Ulteriori informazioni | Output : 364m/min ; Material PE , LDPE, PP, Polyamide, Hdpe, OPP, Paper.Include all parts & accessories. |
