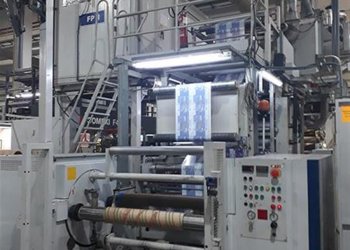

- Codice Macchina
- FL953
- Manufacturer
- COMEXI

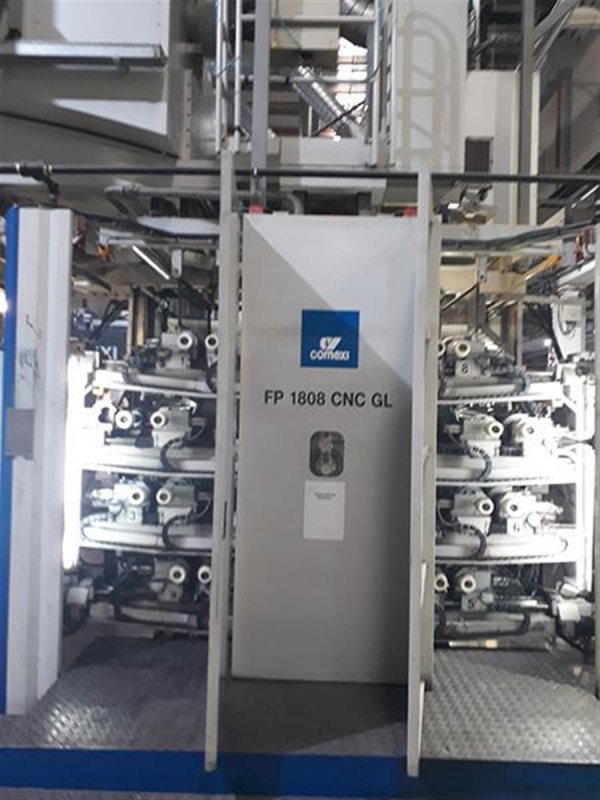

- Modello
- FP 1808 CNC GL
- Year
- 2003
- Numero di colori
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes

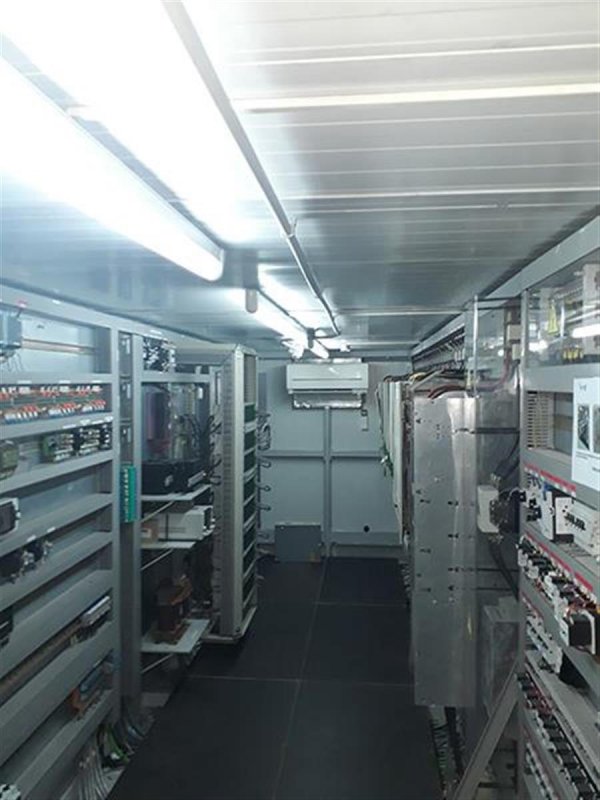

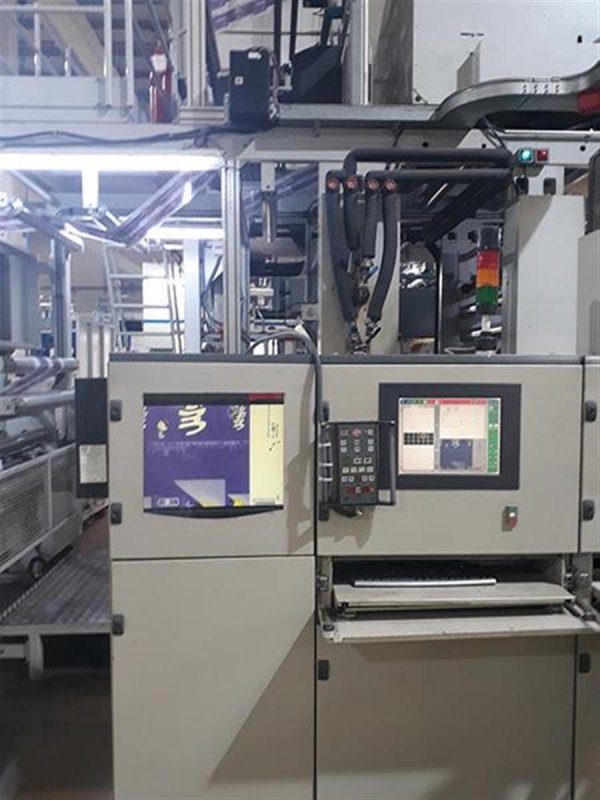

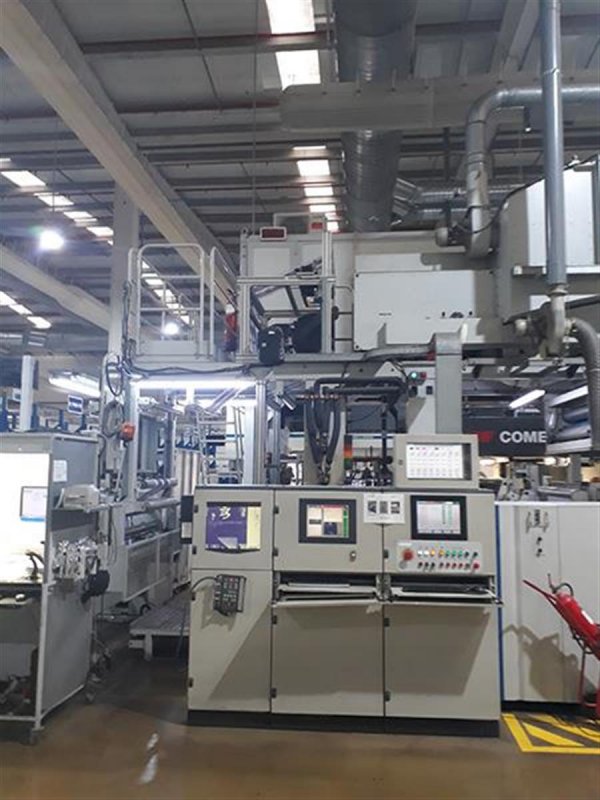

- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1070
- Larghezza stampa (mm)
- 1020
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 680

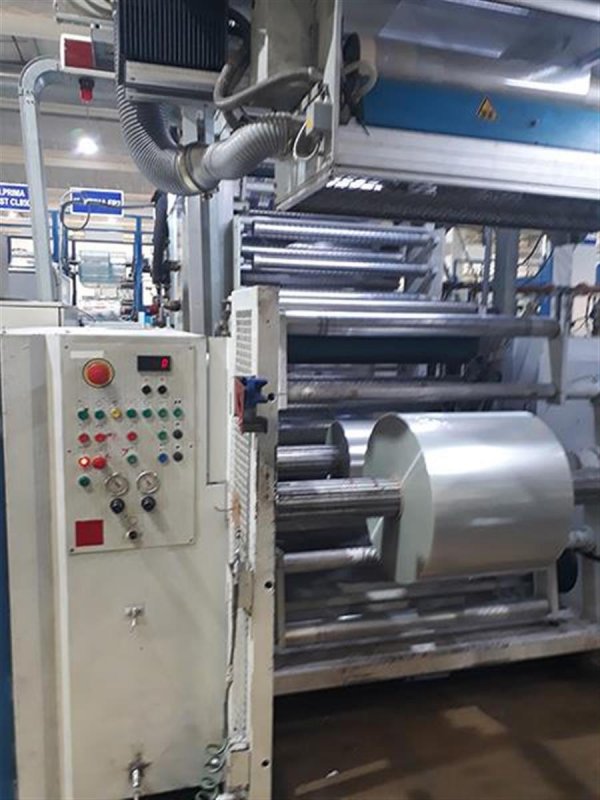

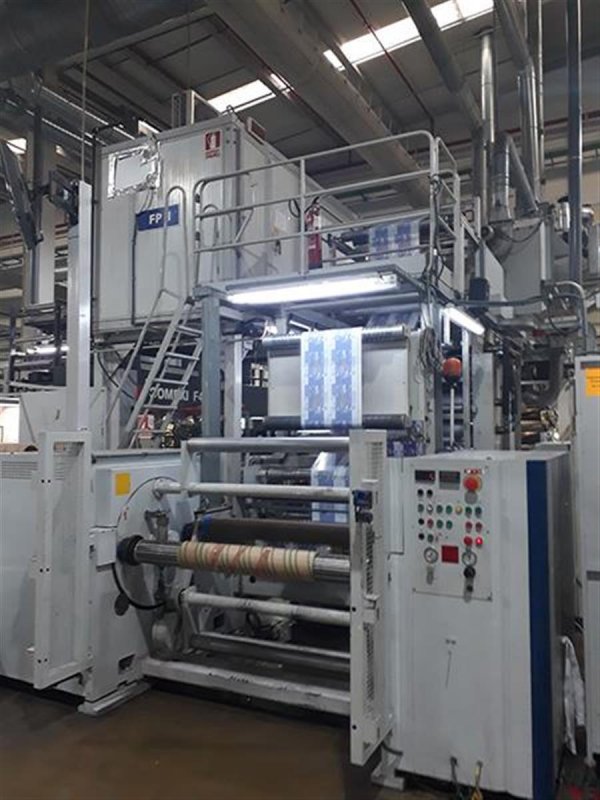

- Unwinder type
- Turret
- Diametro massimo svolgitore (mm)
- 800
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 800

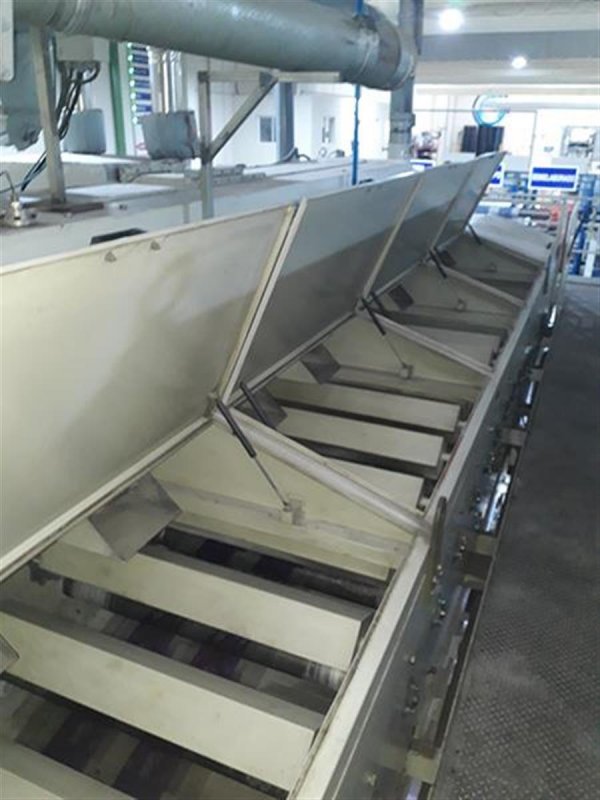

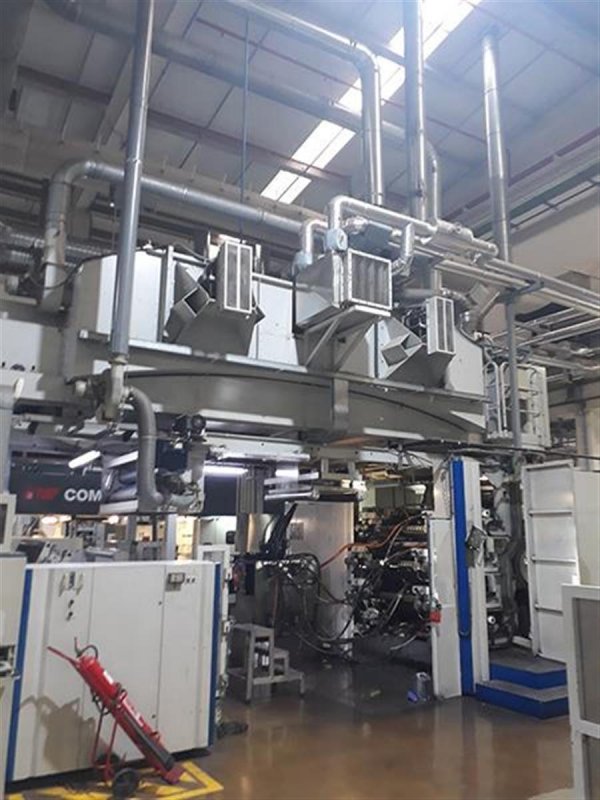

- Essiccazione
- Termic Oil burners

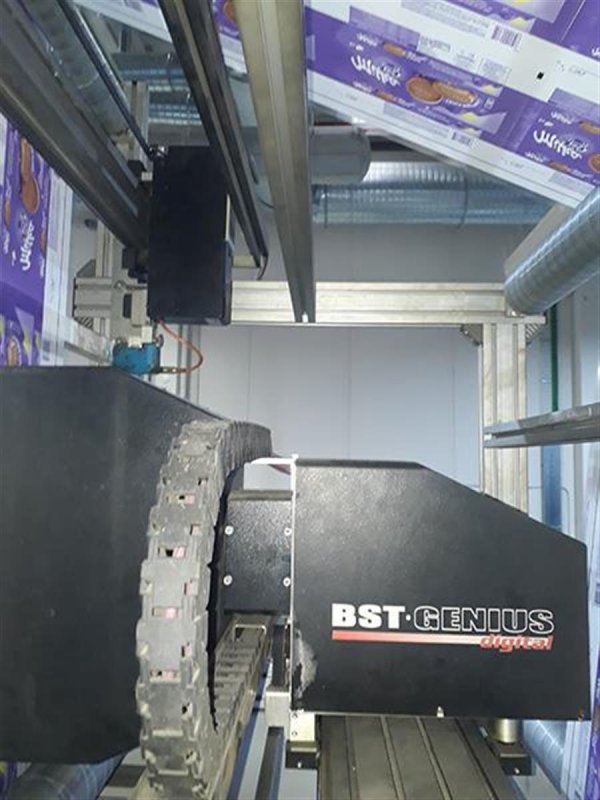

- Videocamera
- BST, model GENIUS
- Trattamento Corona
- Yes, SOFTAL

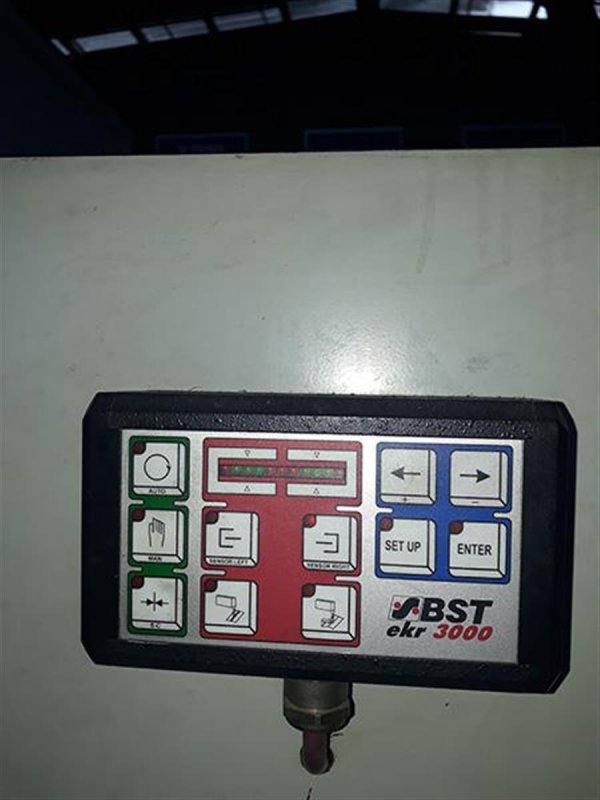

- Guida film
- BST type OPG before and after printing, ultrasonic sensor 2 Lel indicators.
- Vyscosity control
- Inelme viscosimeters
- Washing system
- Automatic device for individual or simultaneous cleaning of colors.

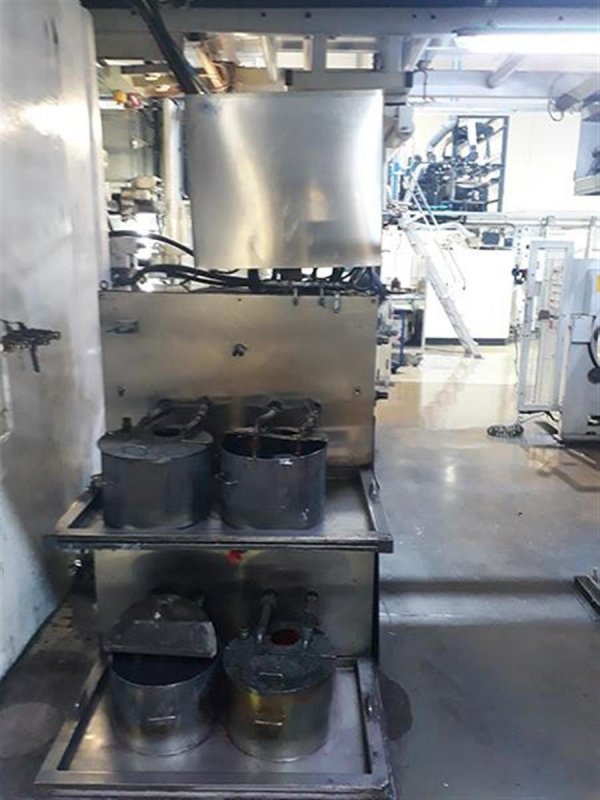

- Sistema d'inchiostro
- Inks pumps + self cleaning including; pneumatic recirculating ink - pumps with reversible fluid flow system; ink tanks, stainless steel, 20 l.

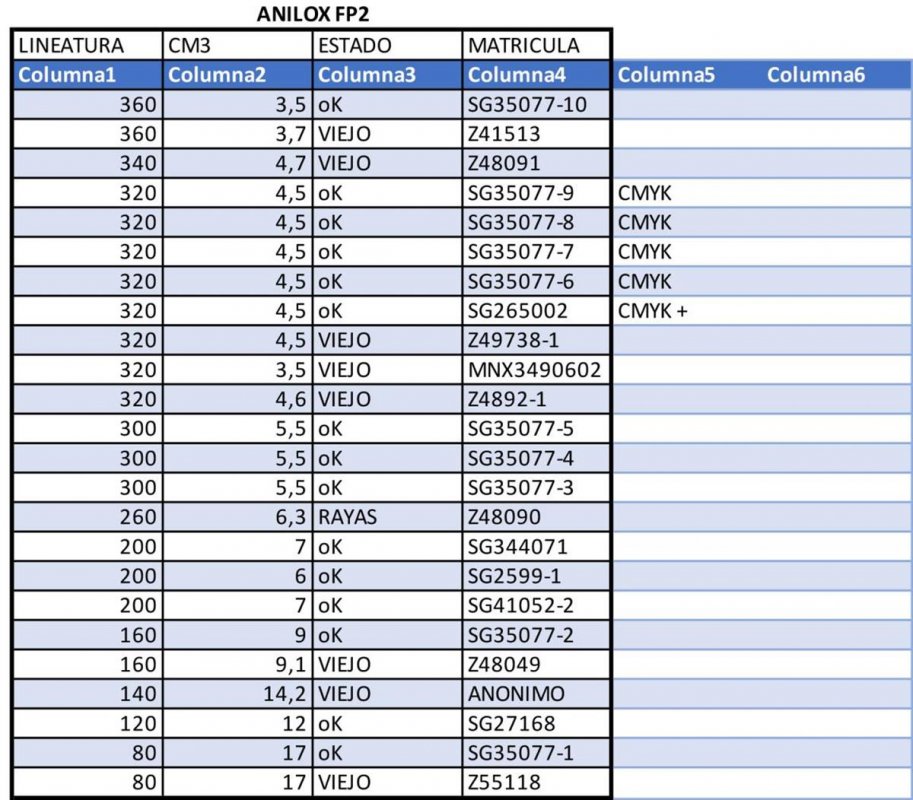

- Anilox
- 2x360, 1x340, 8x320, 3x300, 1x260, 3x200, 2x160, 1x140, 1x120, 2x80.

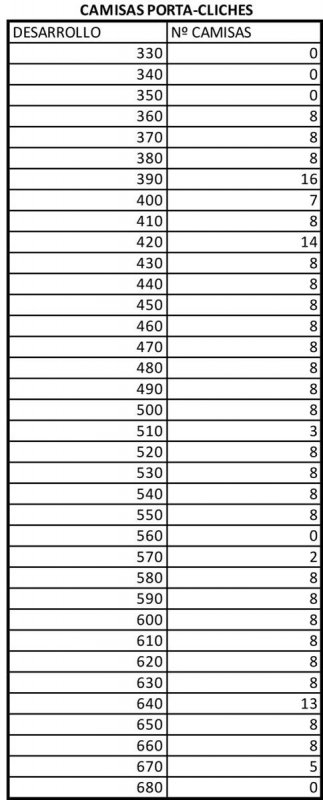

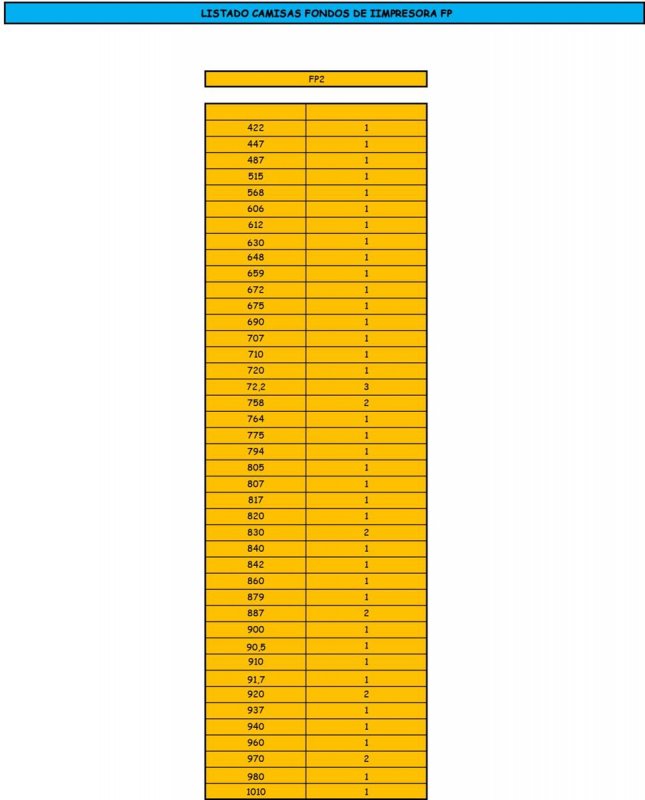

- Maniche stampa
- 330 - 680
- Ulteriori informazioni
- Materials: Films PE, OPP and similar films. Thicknes: min 25 micras - max 100 micras Speed: 350 m/min Motorized lateral register; Core diam: Unwinder: 152 mm - Rewinder: 76 and 152 mm. Tension range: 2/30 Kgs. Inks pumps + self cleaning including: pneumatic recirculating ink-pumps with reversible fluid flow system Ink Tanks, stainless steel, 20 l. Electronic control, valves and pneumatic controls.
| Codice Macchina | FL953 |
| Manufacturer | COMEXI |
| Modello | FP 1808 CNC GL |
| Year | 2003 |
| Numero di colori | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1070 |
| Larghezza stampa (mm) | 1020 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 680 |
| Unwinder type | Turret |
| Diametro massimo svolgitore (mm) | 800 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 800 |
| Essiccazione | Termic Oil burners |
| Videocamera | BST, model GENIUS |
| Trattamento Corona | Yes, SOFTAL |
| Guida film | BST type OPG before and after printing, ultrasonic sensor 2 Lel indicators. |
| Vyscosity control | Inelme viscosimeters |
| Washing system | Automatic device for individual or simultaneous cleaning of colors. |
| Sistema d'inchiostro | Inks pumps + self cleaning including; pneumatic recirculating ink - pumps with reversible fluid flow system; ink tanks, stainless steel, 20 l. |
| Anilox | 2x360, 1x340, 8x320, 3x300, 1x260, 3x200, 2x160, 1x140, 1x120, 2x80. |
| Maniche stampa | 330 - 680 |
| Ulteriori informazioni | Materials: Films PE, OPP and similar films. Thicknes: min 25 micras - max 100 micras Speed: 350 m/min Motorized lateral register; Core diam: Unwinder: 152 mm - Rewinder: 76 and 152 mm. Tension range: 2/30 Kgs. Inks pumps + self cleaning including: pneumatic recirculating ink-pumps with reversible fluid flow system Ink Tanks, stainless steel, 20 l. Electronic control, valves and pneumatic controls. |
