- Codice Macchina
- FL902
- Manufacturer
- SCHIAVI BOBST
- Modello
- ALPHA
- Year
- 2000
- Numero di colori
- 8
- Print possibilityes
- 8+0
- Rinnovo
- updated main computer by bobst in 2022
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1120
- Larghezza stampa (mm)
- 1050
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 650
- Unwinder type
- Turret
- Diametro massimo svolgitore (mm)
- 1000
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1000
- Essiccazione
- Gas
- Videocamera
- BST
- Trattamento Corona
- Mero
- Guida film
- 2 BST

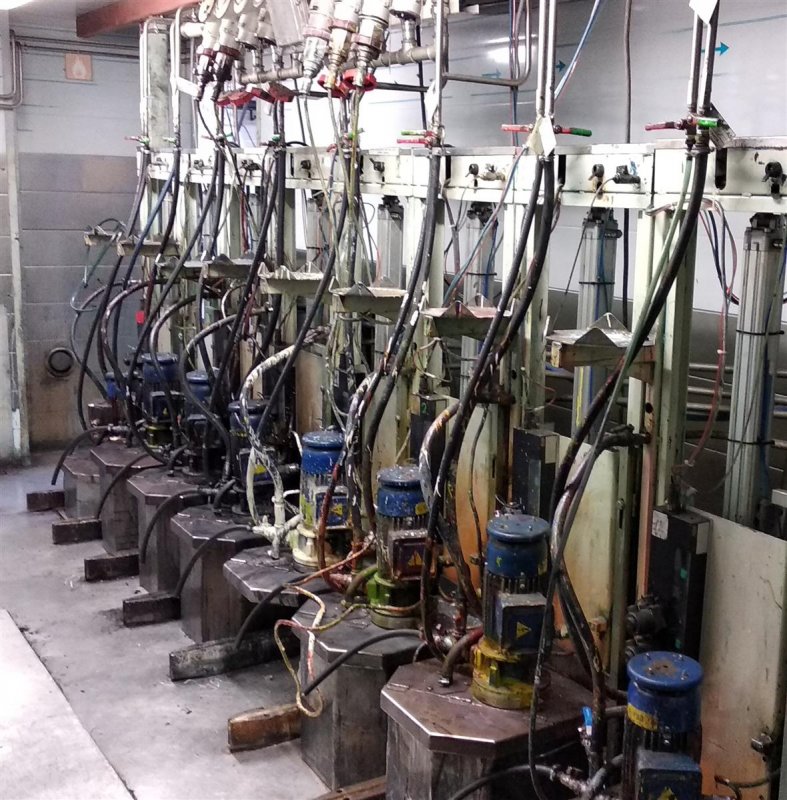

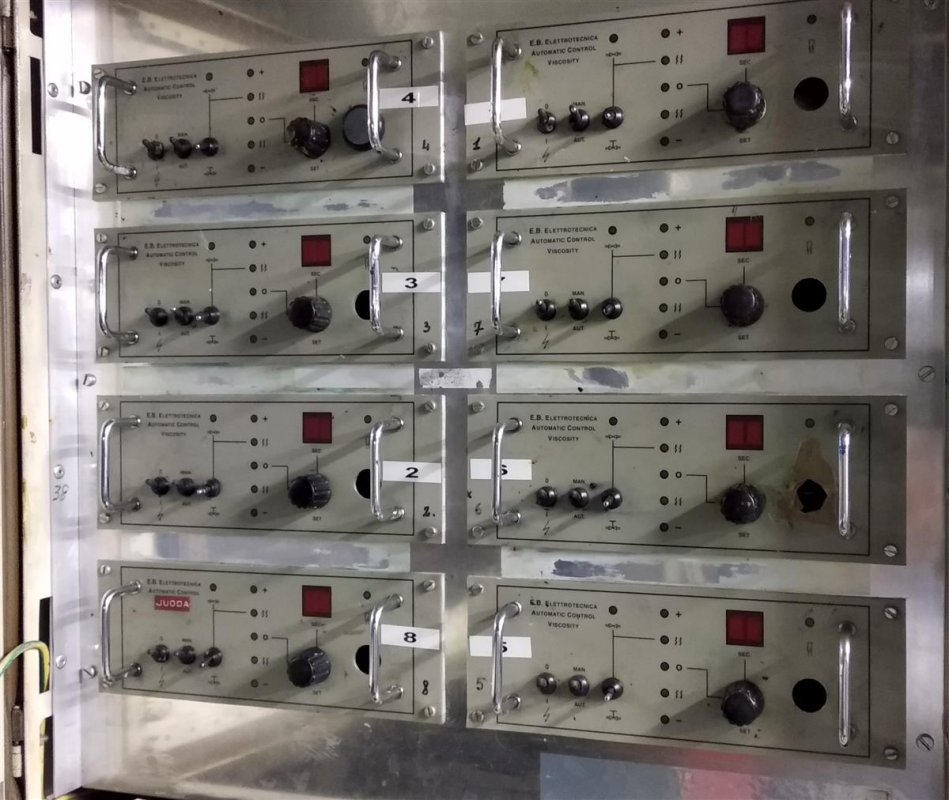

- Vyscosity control
- Yes
- Washing system
- No
- Sistema d'inchiostro
- Closed chamber doctor blades + ceramic anilox
- Anilox
- 8
- Maniche stampa
- 150
- Ulteriori informazioni
- Number of carrier sleeves 114,708-8pcs & 140,173-8pcs Max. mechanical speed: Max 350 Thickness: Min 12 my
| Codice Macchina | FL902 |
| Manufacturer | SCHIAVI BOBST |
| Modello | ALPHA |
| Year | 2000 |
| Numero di colori | 8 |
| Print possibilityes | 8+0 |
| Rinnovo | updated main computer by bobst in 2022 |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1120 |
| Larghezza stampa (mm) | 1050 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 650 |
| Unwinder type | Turret |
| Diametro massimo svolgitore (mm) | 1000 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Essiccazione | Gas |
| Videocamera | BST |
| Trattamento Corona | Mero |
| Guida film | 2 BST |
| Vyscosity control | Yes |
| Washing system | No |
| Sistema d'inchiostro | Closed chamber doctor blades + ceramic anilox |
| Anilox | 8 |
| Maniche stampa | 150 |
| Ulteriori informazioni | Number of carrier sleeves 114,708-8pcs & 140,173-8pcs Max. mechanical speed: Max 350 Thickness: Min 12 my |
