- Codice Macchina
- FL827
- Manufacturer

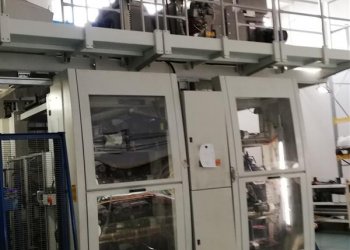

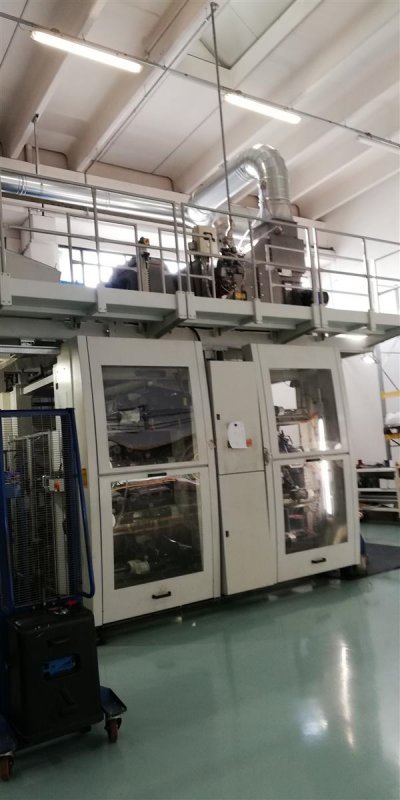

- SCHIAVI
- Modello
- EF 4020
- Year
- 2009
- Numero di colori
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Cambio a maniche rapido
- Yes

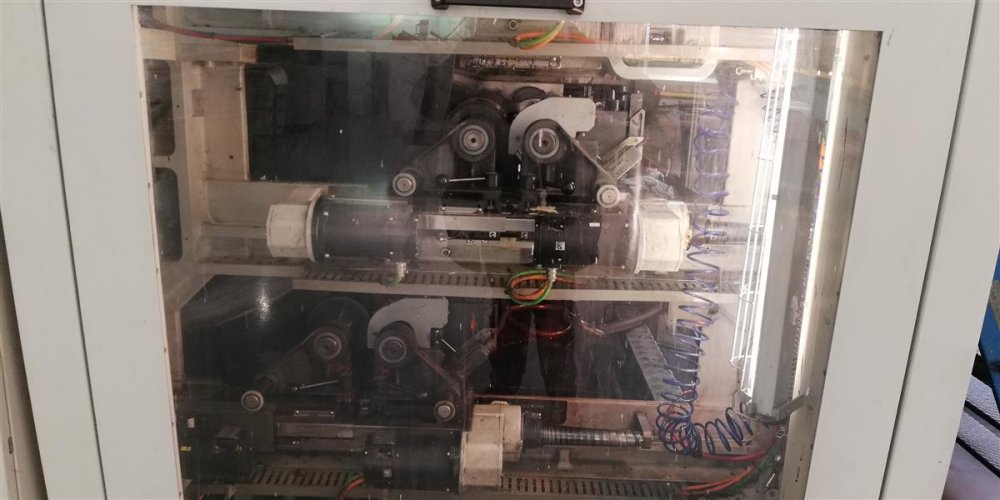

- 4 motor per deck CNC position system
- Yes

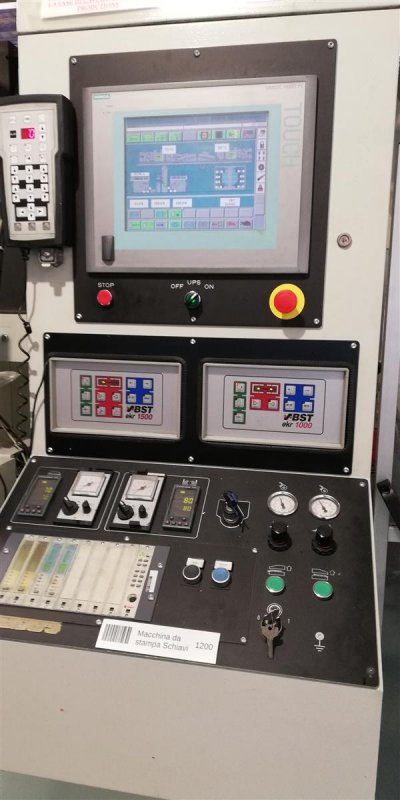

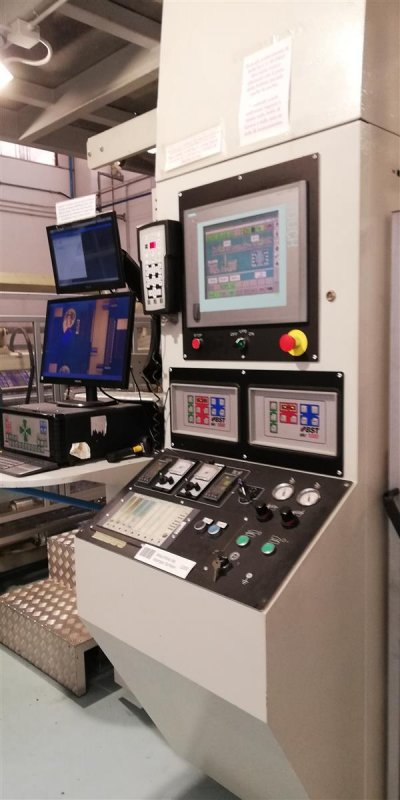

- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1270
- Larghezza stampa (mm)
- 1220
- Min print repeat (mm)
- 360
- Max print repeat (mm)
- 750
- Unwinder type
- Turret Automatic
- Diametro massimo svolgitore (mm)
- 800

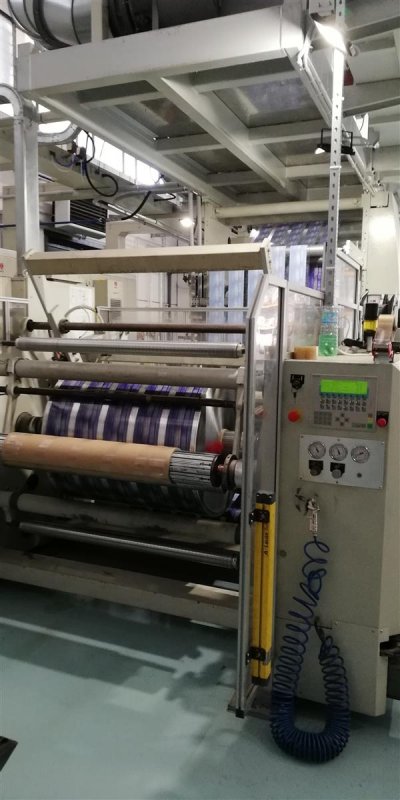

- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800

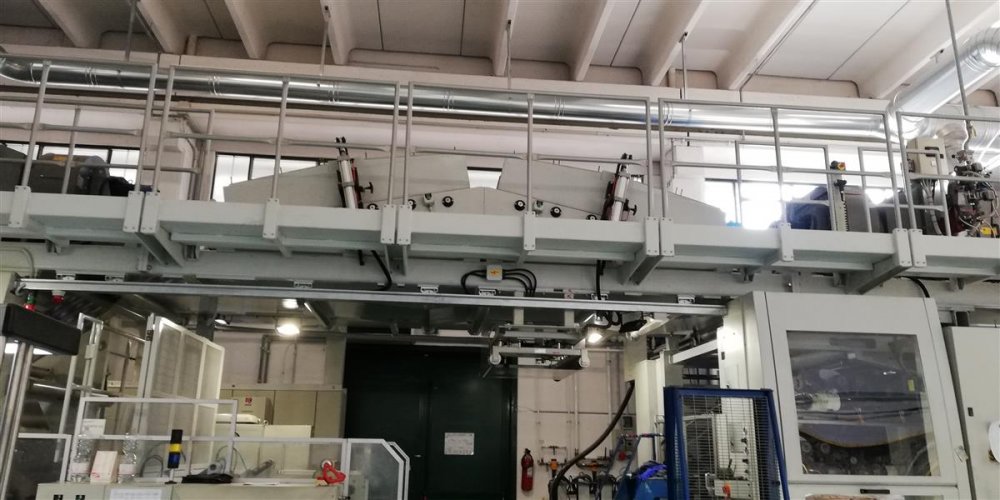

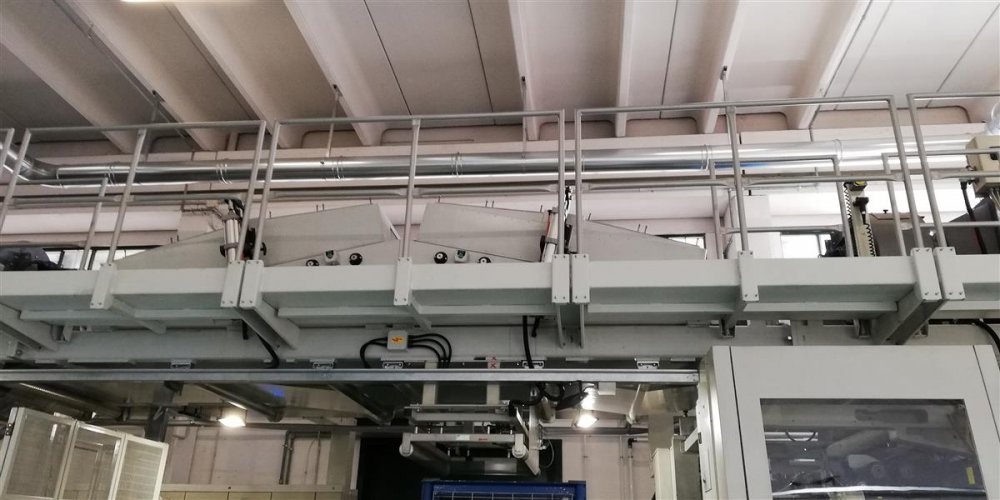

- Essiccazione
- 2 zones , four fans final tunnel , two gas burners, autoatic air recirculation system with LEL control
- Videocamera
- BST Proscan
- Guida film
- yes in and out BST EKR 1000
- Vyscosity control
- yes 8 viscosity controls New Celio
- Sistema d'inchiostro
- Closed chamber doctor bladees
- Anilox
- 21 ceramic anilox sleeves: 1x80 l/cm-vol.16 ; 1x100 l/ cm-vol.16 ; 1x120 l/cm-vol.14 ; 1x140 -.7 ; 1x160 -10 ; 1x160 - 12 ; 1x180 / 10 ; 2x240 - 5 ; 1x280 - 7 ; 1x300 - 6 ; 3x320 - 5,5 ; 2x360 - 3,5 ; 4x420 - 4
- Maniche stampa
- 180 print sleeves : 18 x 350 mm; 8 x 360 ; 8 x 390 ; 9 x 400 ; 8 x 420 ; 15 x 440 ; 8 x 450 ; 8 x 460 ; 8 x 480 ; 8 x 500 ; 8 x 520 ; 8 x 530 ; 8 x 550 ; 15 x 570 ; 8 x 600 ; 8 x 650 ; 8 x 660 ; 8 x 680 ; 8 x 700
- Cilindri stampa
- 1 set of carbon fiber carriers
- Ulteriori informazioni
- Speed 300mpm
| Codice Macchina | FL827 |
| Manufacturer | SCHIAVI |
| Modello | EF 4020 |
| Year | 2009 |
| Numero di colori | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1270 |
| Larghezza stampa (mm) | 1220 |
| Min print repeat (mm) | 360 |
| Max print repeat (mm) | 750 |
| Unwinder type | Turret Automatic |
| Diametro massimo svolgitore (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Essiccazione | 2 zones , four fans final tunnel , two gas burners, autoatic air recirculation system with LEL control |
| Videocamera | BST Proscan |
| Guida film | yes in and out BST EKR 1000 |
| Vyscosity control | yes 8 viscosity controls New Celio |
| Sistema d'inchiostro | Closed chamber doctor bladees |
| Anilox | 21 ceramic anilox sleeves: 1x80 l/cm-vol.16 ; 1x100 l/ cm-vol.16 ; 1x120 l/cm-vol.14 ; 1x140 -.7 ; 1x160 -10 ; 1x160 - 12 ; 1x180 / 10 ; 2x240 - 5 ; 1x280 - 7 ; 1x300 - 6 ; 3x320 - 5,5 ; 2x360 - 3,5 ; 4x420 - 4 |
| Maniche stampa | 180 print sleeves : 18 x 350 mm; 8 x 360 ; 8 x 390 ; 9 x 400 ; 8 x 420 ; 15 x 440 ; 8 x 450 ; 8 x 460 ; 8 x 480 ; 8 x 500 ; 8 x 520 ; 8 x 530 ; 8 x 550 ; 15 x 570 ; 8 x 600 ; 8 x 650 ; 8 x 660 ; 8 x 680 ; 8 x 700 |
| Cilindri stampa | 1 set of carbon fiber carriers |
| Ulteriori informazioni | Speed 300mpm |
