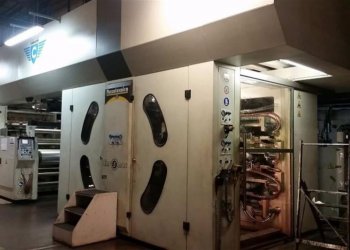

FLEXOTECNICA CHRONOS Macchina da stampa flexo 8 colori // Flexo CI // Printing machines // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

** SOLD **

Photo Gallery

Richiedi maggiori informazioni

su una simile

Codice Macchina: FL666
Manufacturer: FLEXOTECNICA
Modello: CHRONOS
Year: 2007
Numero di colori: 8
Print possibilityes: 8+0
Gearless: Yes
Cambio a maniche rapido: Yes
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Larghezza nastro (mm): 1320
Larghezza stampa (mm): 1270
Min print repeat (mm): 370
Max print repeat (mm): 800
Unwinder type: Flying splice turret for reels 1000 mm diameter
Diametro massimo svolgitore (mm): 1000
Rewinder type: Flying splice turret for reels 1000 mm diameter
Max reel diameter rewinder (mm): 1000
Essiccazione: Heated Air 2 zones gas burners

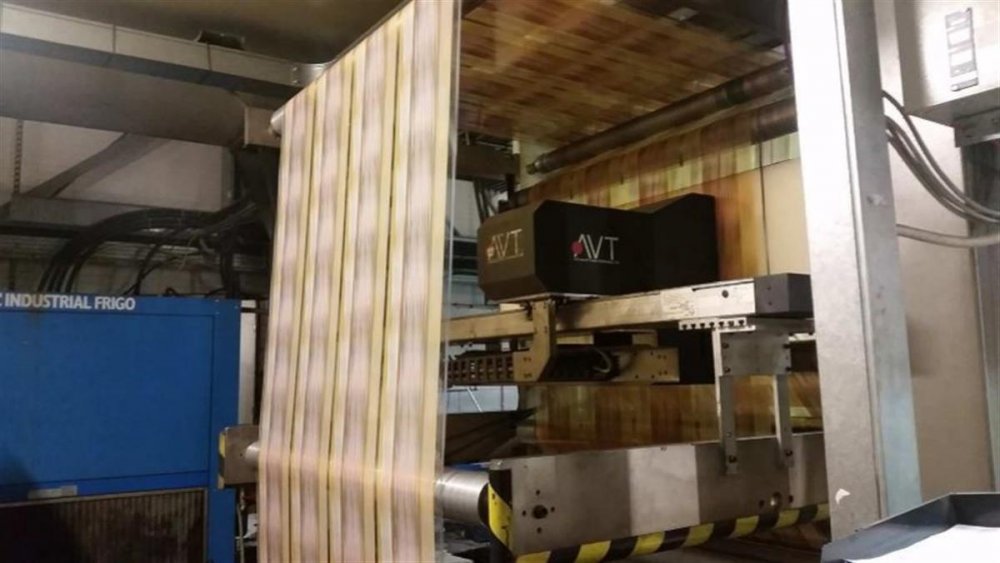

Videocamera: video inspection system AVT-Jupiter/Dual mode with pREgister automatic register pre-setting
Guida film: YES
Vyscosity control: YES
Washing system: Automatic wash-up system for 8 print units.
Sistema d'inchiostro: Ink pumping
Anilox: Anilox sleeves ceramic coated and laser engraved. Specifications to be discussed among those on stock by the seller.
Maniche stampa: Print sleeves as following: 16 sleeves for print repeats 375 mm.; 8 sleeves for print repeats 400 mm.; 8 sleeves for print repeats 410 mm.; 8 sleeves for print repeats 425 mm.; 8 sleeves for print repeats 445 mm.; 8 sleeves for print repeats 470 mm.; 8 sleeves for print repeats 480 mm.; 16 sleeves for print repeats 490 mm
Ulteriori informazioni: 8 carbon fibre plate roller air mandrels diameter 108,342 mm. for the print section; 8 bridge sleeves external diameter 152,905 mm. for the print section Motorized registers

Codice Macchina	FL666
Manufacturer	FLEXOTECNICA
Modello	CHRONOS
Year	2007
Numero di colori	8
Print possibilityes	8+0
Gearless	Yes
Cambio a maniche rapido	Yes
4 motor per deck CNC position system	Yes
Computer supervision	Yes
Larghezza nastro (mm)	1320
Larghezza stampa (mm)	1270
Min print repeat (mm)	370
Max print repeat (mm)	800
Unwinder type	Flying splice turret for reels 1000 mm diameter
Diametro massimo svolgitore (mm)	1000
Rewinder type	Flying splice turret for reels 1000 mm diameter
Max reel diameter rewinder (mm)	1000
Essiccazione	Heated Air 2 zones gas burners
Videocamera	video inspection system AVT-Jupiter/Dual mode with pREgister automatic register pre-setting
Guida film	YES
Vyscosity control	YES
Washing system	Automatic wash-up system for 8 print units.
Sistema d'inchiostro	Ink pumping
Anilox	Anilox sleeves ceramic coated and laser engraved. Specifications to be discussed among those on stock by the seller.
Maniche stampa	Print sleeves as following: 16 sleeves for print repeats 375 mm.; 8 sleeves for print repeats 400 mm.; 8 sleeves for print repeats 410 mm.; 8 sleeves for print repeats 425 mm.; 8 sleeves for print repeats 445 mm.; 8 sleeves for print repeats 470 mm.; 8 sleeves for print repeats 480 mm.; 16 sleeves for print repeats 490 mm
Ulteriori informazioni	8 carbon fibre plate roller air mandrels diameter 108,342 mm. for the print section; 8 bridge sleeves external diameter 152,905 mm. for the print section Motorized registers
