- Codice Macchina
- FL727
- Manufacturer
- UTECO
- Modello

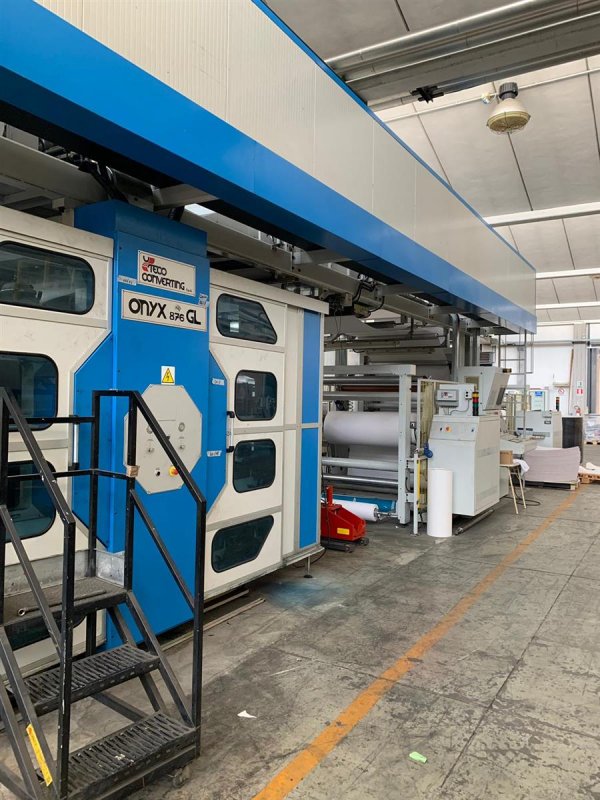

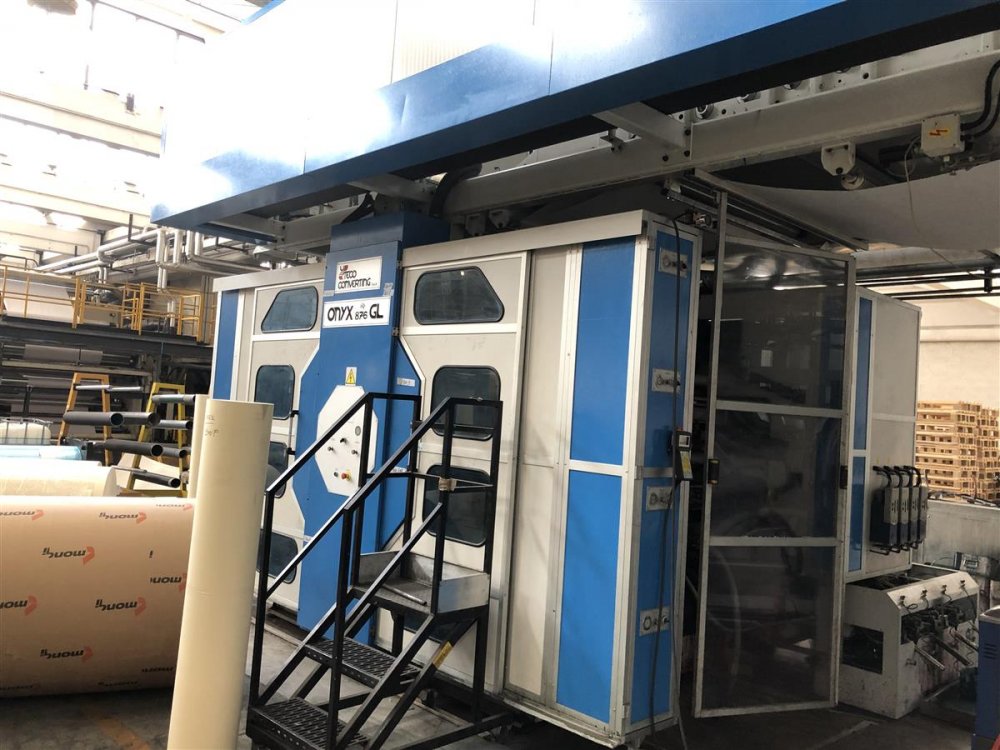

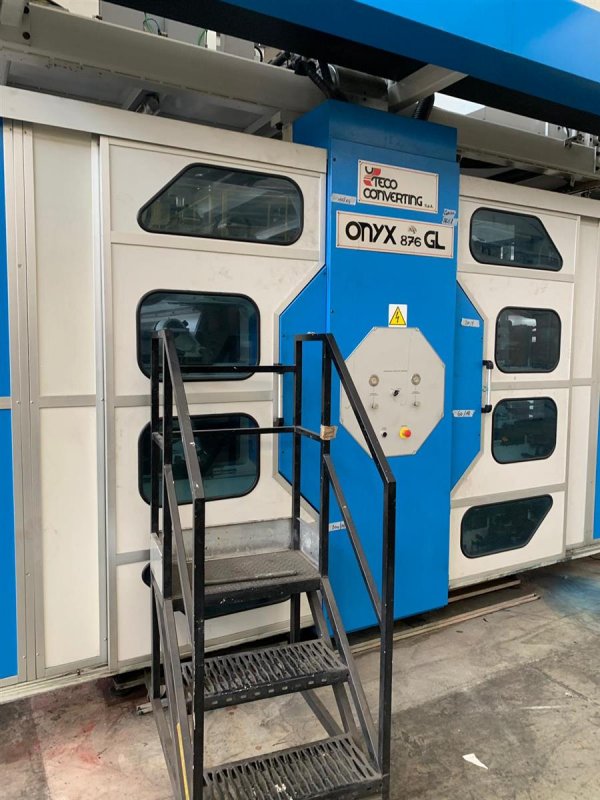

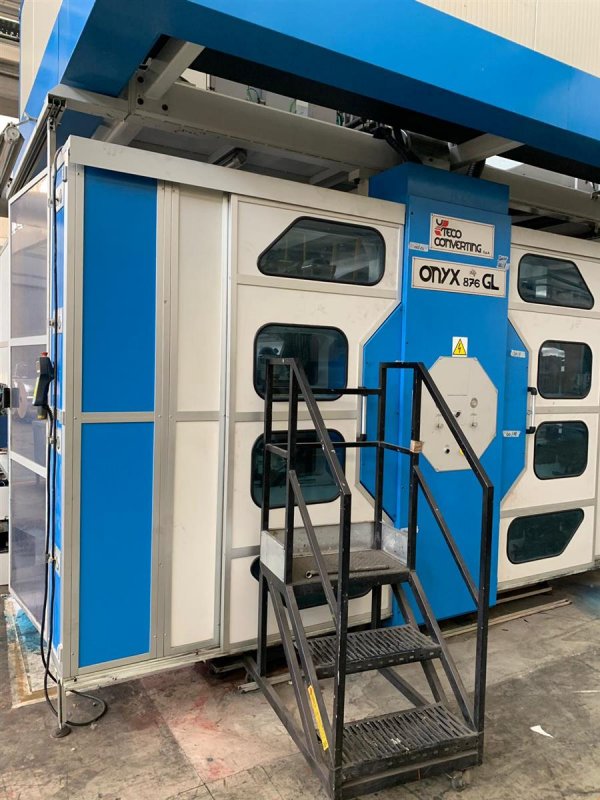

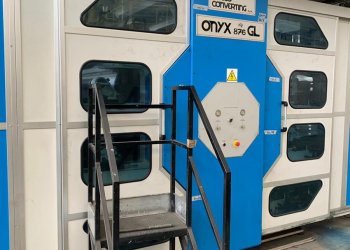

- ONYX 876 GL
- Year
- 2007
- Numero di colori
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Cambio a maniche rapido
- Yes

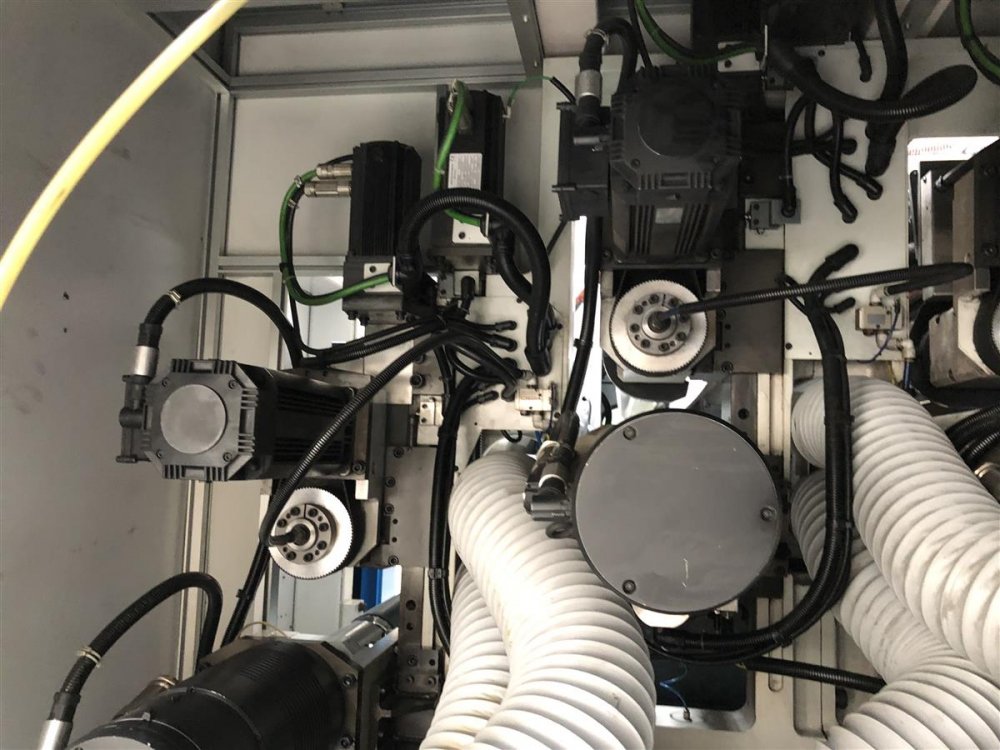

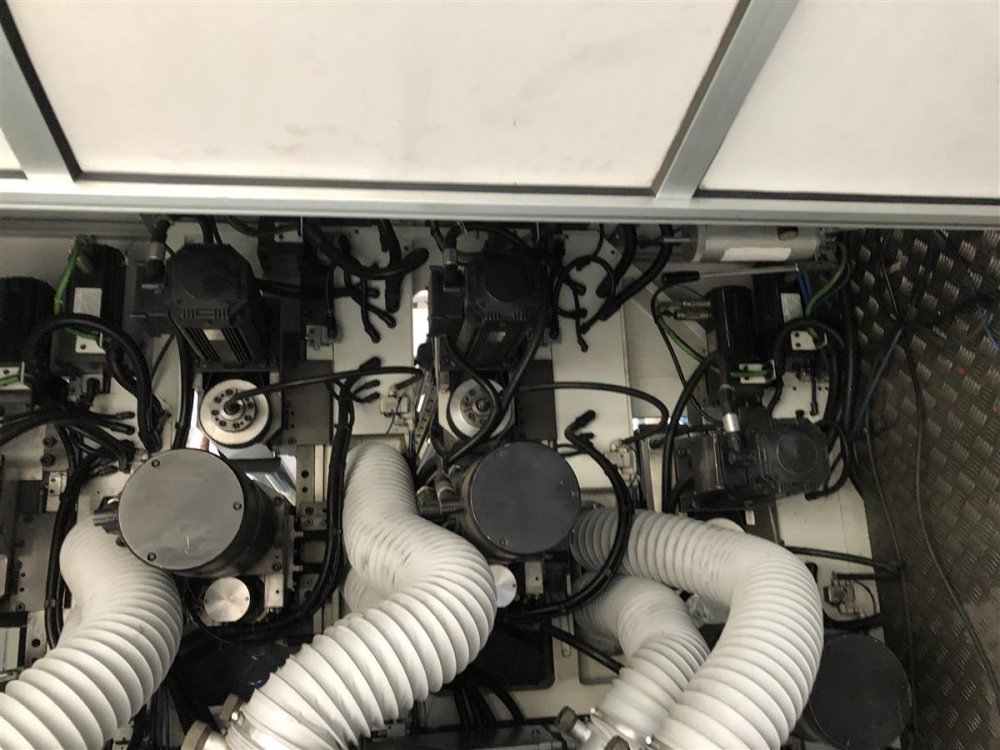

- 4 motor per deck CNC position system
- Yes

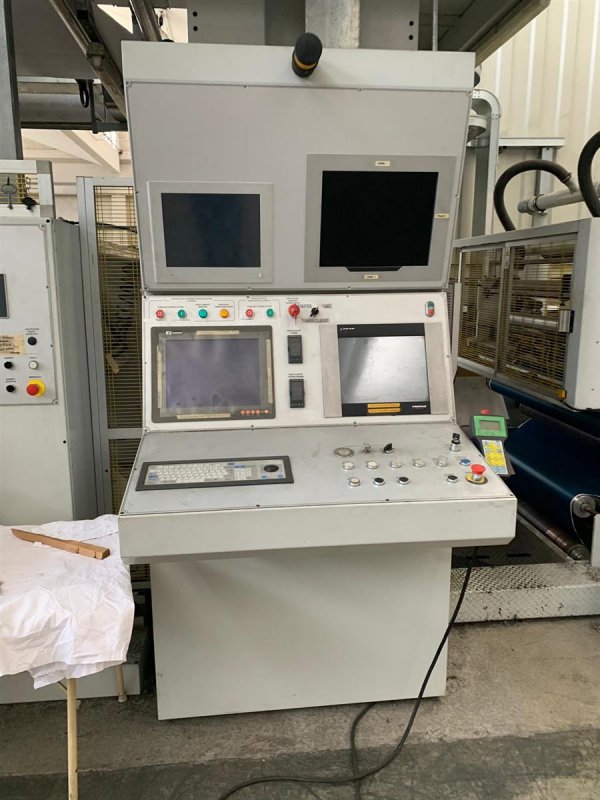

- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1450
- Larghezza stampa (mm)
- 1400
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 850

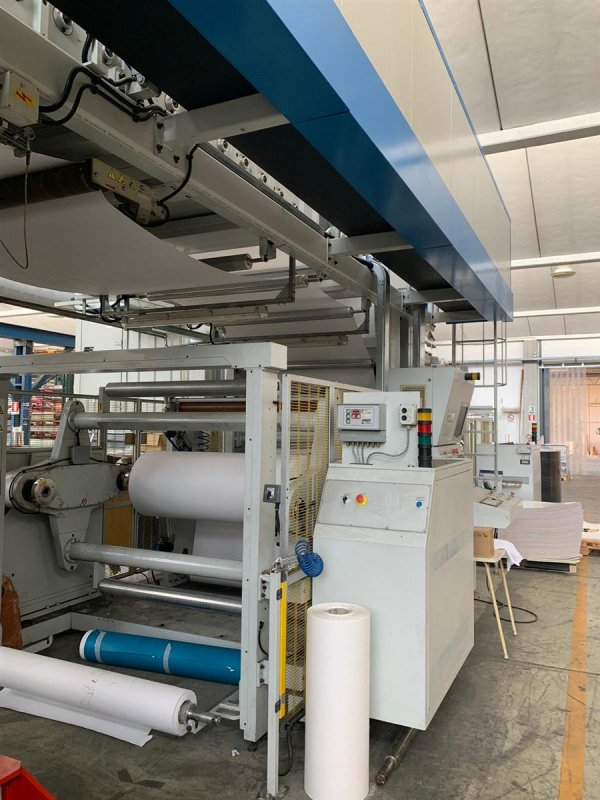

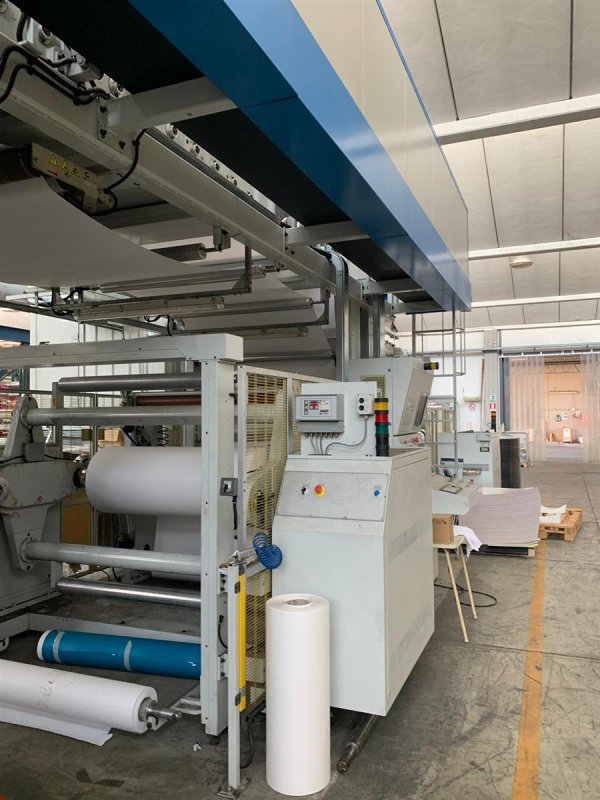

- Unwinder type
- Turret Automatic flying splice - roll loading system
- Diametro massimo svolgitore (mm)
- 1000
- Rewinder type
- Turret Automatic flying splice - roll un loading system
- Max reel diameter rewinder (mm)
- 1000
- Essiccazione
- 2 zones - 4 fans- 4 mt tunnel - 2 thermo il heaters - automtic recircultion system with LEL control system Zellweger
- Videocamera
- BST Premius Digital 3 ccd with smart register system
- Guida film
- BST EKR 1000 in and out

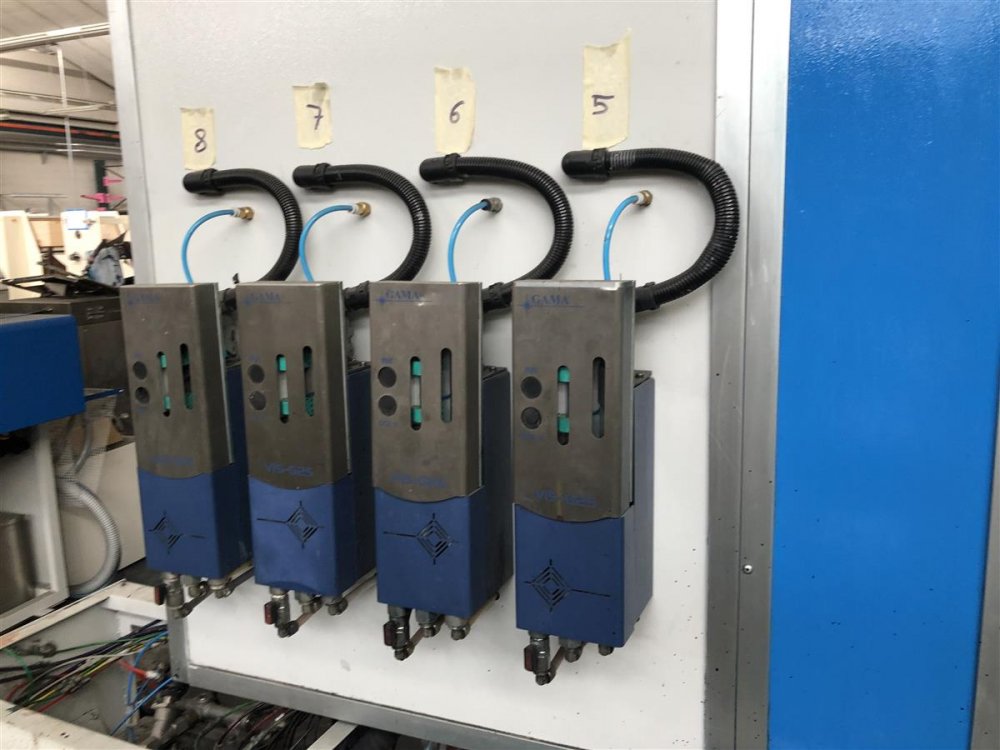

- Vyscosity control
- Automatic Gama
- Washing system
- Automatic
- Sistema d'inchiostro
- Close chamber doctor blades

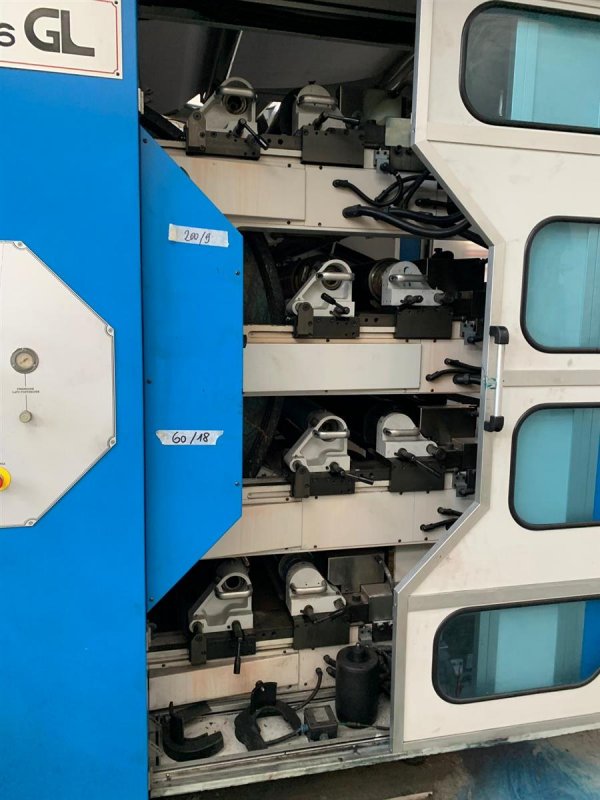

- Anilox
- APPROX 15 ceramic anilox sleeves as follows 60 l/cm-vol18, 80 l/cm-vol16, 100/14, 140/12, 160/12 (2 pezzi), 200/9, 280/6.5, 300/6, 320/4.8, 360/6 (2 pezzi), 420/4.5 (3 pezzi)
- Maniche stampa
- APPROX 176 printing sleeves as follows: 8 sleeves for each repeat as follows360, 380, 390, 393, 400, 405, 410, 415, 420, 440, 460, 480, 485, 490, 495, 500, 520, 540, 570, 590, 660, 700
- Ulteriori informazioni
- INCLUDING ALSO: - Bieffebi Plate mounter with proofing drum - IRAC anilox cleaner - Plate washing Slitting attaachment at rewinder with double slitting system - razor blade with groove d roller -rotary knoves Helios exhaust trim system
| Codice Macchina | FL727 |
| Manufacturer | UTECO |
| Modello | ONYX 876 GL |
| Year | 2007 |
| Numero di colori | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1450 |
| Larghezza stampa (mm) | 1400 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 850 |
| Unwinder type | Turret Automatic flying splice - roll loading system |
| Diametro massimo svolgitore (mm) | 1000 |
| Rewinder type | Turret Automatic flying splice - roll un loading system |
| Max reel diameter rewinder (mm) | 1000 |
| Essiccazione | 2 zones - 4 fans- 4 mt tunnel - 2 thermo il heaters - automtic recircultion system with LEL control system Zellweger |
| Videocamera | BST Premius Digital 3 ccd with smart register system |
| Guida film | BST EKR 1000 in and out |
| Vyscosity control | Automatic Gama |
| Washing system | Automatic |
| Sistema d'inchiostro | Close chamber doctor blades |
| Anilox | APPROX 15 ceramic anilox sleeves as follows 60 l/cm-vol18, 80 l/cm-vol16, 100/14, 140/12, 160/12 (2 pezzi), 200/9, 280/6.5, 300/6, 320/4.8, 360/6 (2 pezzi), 420/4.5 (3 pezzi) |
| Maniche stampa | APPROX 176 printing sleeves as follows: 8 sleeves for each repeat as follows360, 380, 390, 393, 400, 405, 410, 415, 420, 440, 460, 480, 485, 490, 495, 500, 520, 540, 570, 590, 660, 700 |
| Ulteriori informazioni | INCLUDING ALSO: - Bieffebi Plate mounter with proofing drum - IRAC anilox cleaner - Plate washing Slitting attaachment at rewinder with double slitting system - razor blade with groove d roller -rotary knoves Helios exhaust trim system |
