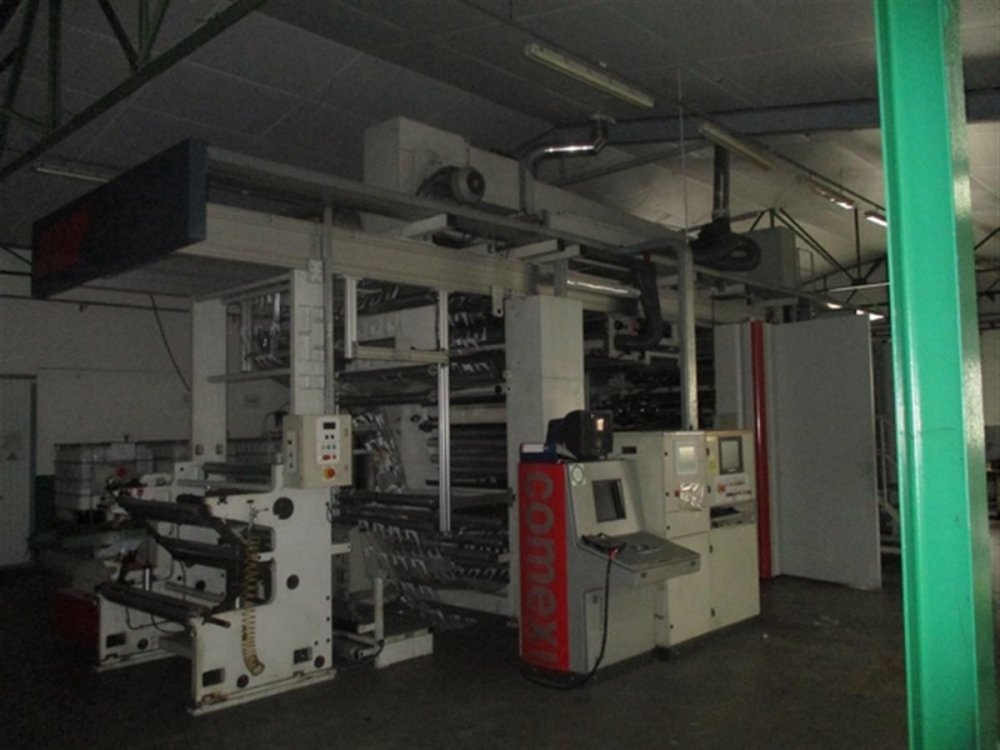

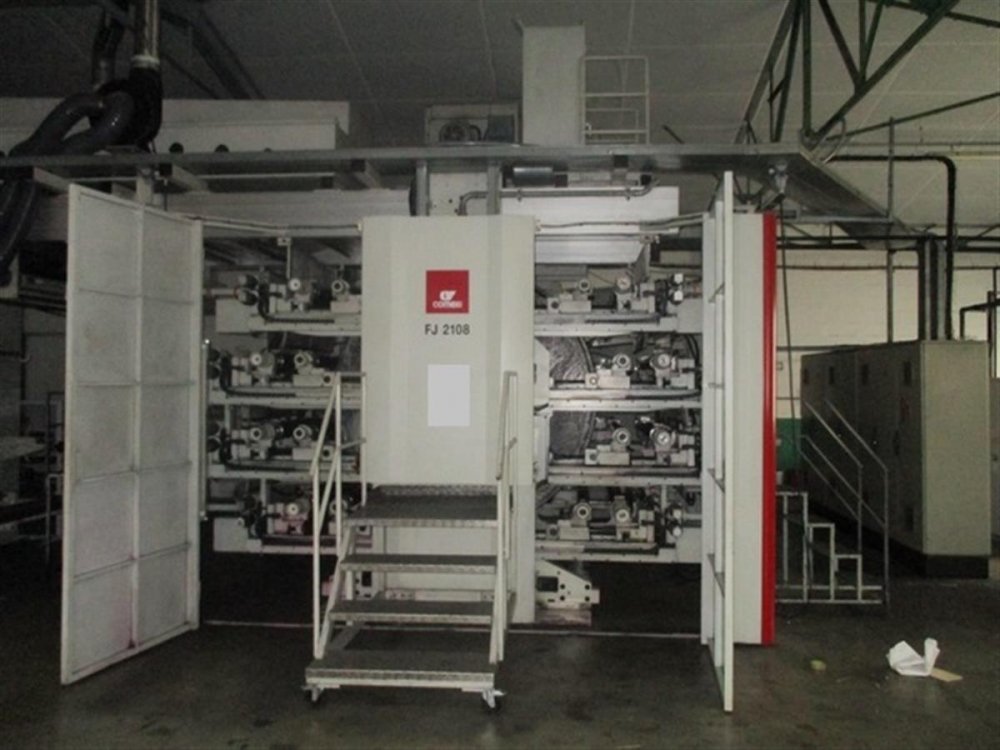

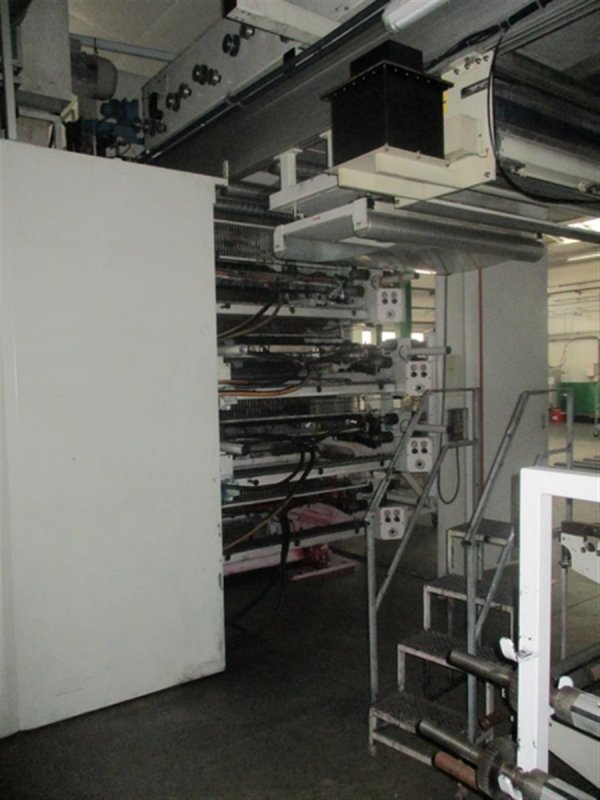

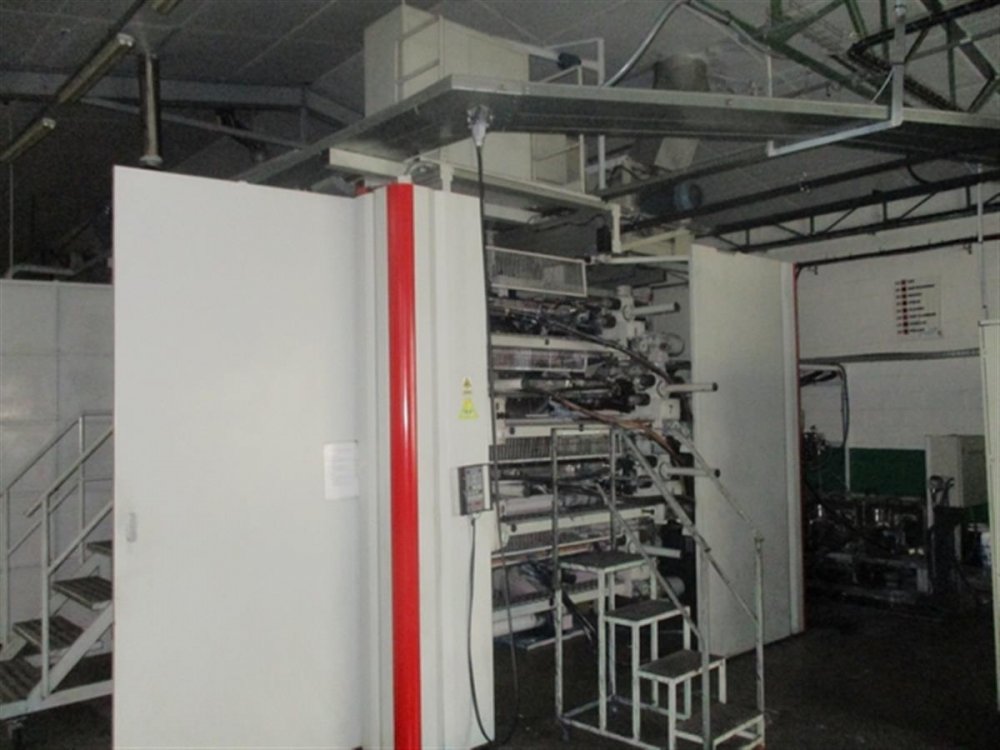

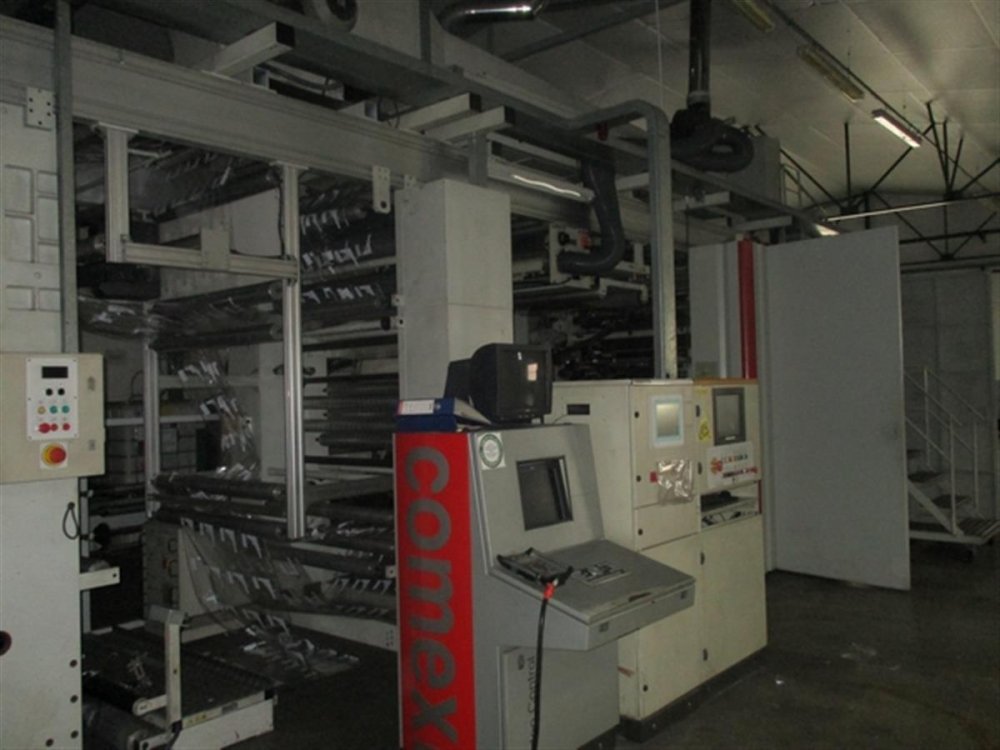

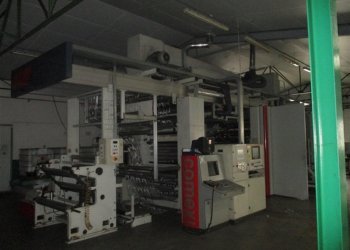

- Codice Macchina
- FL664
- Manufacturer
- COMEXI
- Modello
- FJ2108 CNC
- Year
- 2001
- Numero di colori
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes
- Larghezza nastro (mm)
- 1270
- Larghezza stampa (mm)
- 1220
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- Double bracket
- Diametro massimo svolgitore (mm)
- 800
- Rewinder type
- Double bracket
- Max reel diameter rewinder (mm)
- 800
- Trattamento Corona
- Yes
- Guida film
- Yes before printing and rewinding brand BST type OPG
- Vyscosity control
- Yes
- Washing system
- Yes
- Sistema d'inchiostro
- 8 pneumatic ink pumps, chamber doctor blades
- Anilox
- 10 anilox
- Maniche stampa
- Yes
- Ulteriori informazioni
- 10 mm gear pitch motorized longitudinal /side register Speed 300 m/min Materials : LDPE, PP, OPP Unwinder : marriage roll, dancing roller, tension control, pneuamtic shaft 3" and 6" Rewinder : pneuamtic shaft 3" and 6" Sleeve machine for anilox and cylinders plates, slow rotation with electrical motors; through off system, meshing system Sets of gears Conditionig system for the central drum
| Codice Macchina | FL664 |
| Manufacturer | COMEXI |
| Modello | FJ2108 CNC |
| Year | 2001 |
| Numero di colori | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Larghezza nastro (mm) | 1270 |
| Larghezza stampa (mm) | 1220 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 800 |
| Unwinder type | Double bracket |
| Diametro massimo svolgitore (mm) | 800 |
| Rewinder type | Double bracket |
| Max reel diameter rewinder (mm) | 800 |
| Trattamento Corona | Yes |
| Guida film | Yes before printing and rewinding brand BST type OPG |
| Vyscosity control | Yes |
| Washing system | Yes |
| Sistema d'inchiostro | 8 pneumatic ink pumps, chamber doctor blades |
| Anilox | 10 anilox |
| Maniche stampa | Yes |
| Ulteriori informazioni | 10 mm gear pitch motorized longitudinal /side register Speed 300 m/min Materials : LDPE, PP, OPP Unwinder : marriage roll, dancing roller, tension control, pneuamtic shaft 3" and 6" Rewinder : pneuamtic shaft 3" and 6" Sleeve machine for anilox and cylinders plates, slow rotation with electrical motors; through off system, meshing system Sets of gears Conditionig system for the central drum |
