- Code Machine
- LA400
- Fabricant

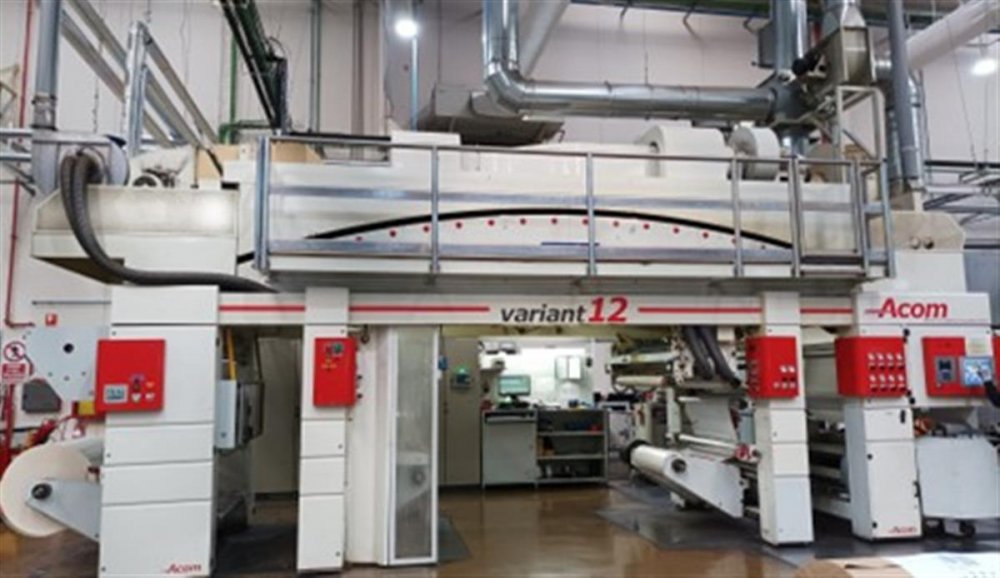

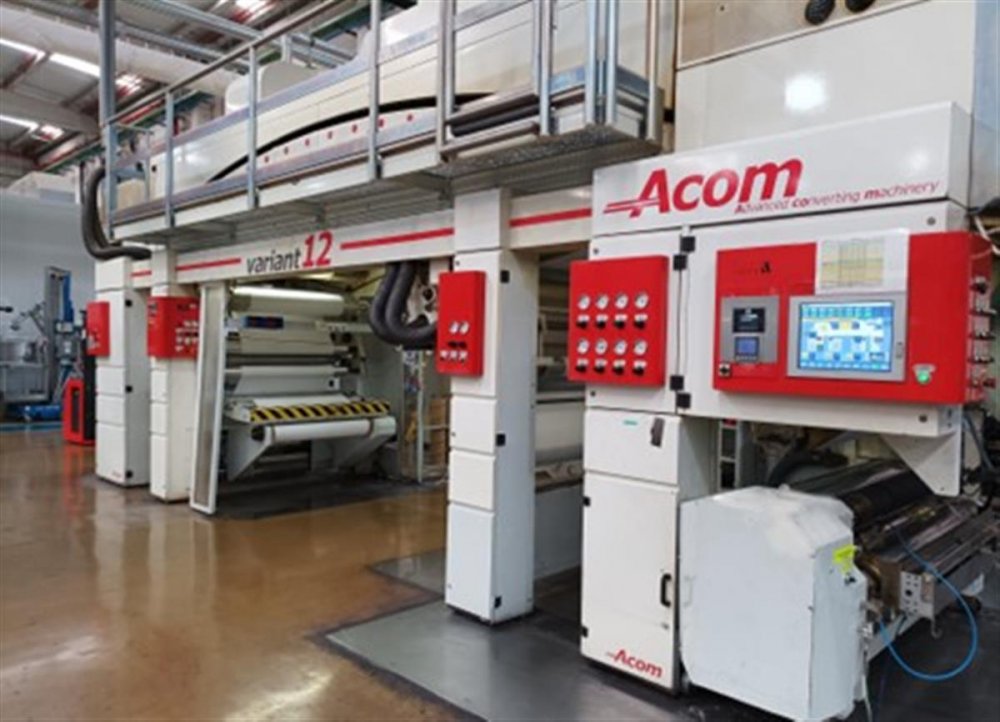

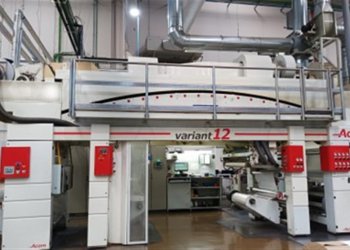

- ACOM
- Modello
- VARIANT 12
- Année
- 2003
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1300
- Materials
- PAPER - PLASTICS FILMS AND ALLUMINIUM
- Speed
- 500 MT/MIN
- First unwinder type
- Shaftless driven
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Shaftless driven
- Max diameter reel unwinder
- 1000
- Rewinder type
- SINGLE-SHAFTLESS
- Max diameter reel rewinder
- 1000
- Coating unit
- Trolley based with solventless and gravure trolleys
- Third Coating unit
- Drying
- 2 zone with 4 fans, extended drying tunnel 5 mt long and thermo oil heat exchangers
- Register controll
- YES
- pumping mixing unit
- Yes one for 2 componenst solventless adhesives and one for solvent based
- Corona treatment
- ME.RO
| Code Machine | LA400 |
| Fabricant | ACOM |
| Modello | VARIANT 12 |
| Année | 2003 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1300 |
| Materials | PAPER - PLASTICS FILMS AND ALLUMINIUM |
| Speed | 500 MT/MIN |
| First unwinder type | Shaftless driven |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | Shaftless driven |
| Max diameter reel unwinder | 1000 |
| Rewinder type | SINGLE-SHAFTLESS |
| Max diameter reel rewinder | 1000 |
| Coating unit | Trolley based with solventless and gravure trolleys |
| Third Coating unit | |
| Drying | 2 zone with 4 fans, extended drying tunnel 5 mt long and thermo oil heat exchangers |
| Register controll | YES |
| pumping mixing unit | Yes one for 2 componenst solventless adhesives and one for solvent based |
| Corona treatment | ME.RO |
