Código Máquina	ME50
Constructor	GENERAL VACUUM
Modelo	K5000
Año	2005
Modernización	renvation of electric supply evaoration area, and al wire supply system
Ancho de trabajo (mm)	2480
Materiales	bopp, bopet , cpp, from 15 to 70 microns
Velocidad	1000 m/ min
Diametro max bobina desenrollador	1200 mm
Diametro max bobina enrollador	1200 mm
Cámaras de evaporización	26 dimension 125 x 40 x 10 mm- sintered ceramic
Sistema de bombeo	Coating section : 2 rotary vane pumps Leybold -630 cumt/h , 1 Booster pump Aetzen 5.600 cumt/h, 4 high vacuum oil diffusion pumps Varian HS 17.500 liter/ sec located exactly centrally below the evaporation boats . winding section 2 rotary vane pumps Leybold , 2 booster pumps Aerzen
Tratamiento Plasma	yes, upgraded 2013
Polycold	yes 2
Informaciones adicionales	2470 mm coating area , 10mm edge masking 2 edges min coating width 1025mm coating thickness range 0,5 - 3,0 OD cooling drum diemeter: 500mm Slitter Atlas included

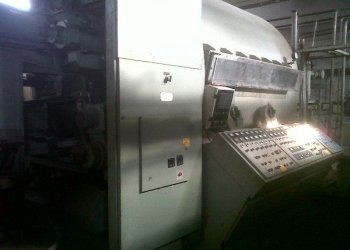

GENERAL VACUUM K5000 Metallizzadora ** VENDIDA ** Informaciones adicionales sobre una similar

** VENDIDA **
