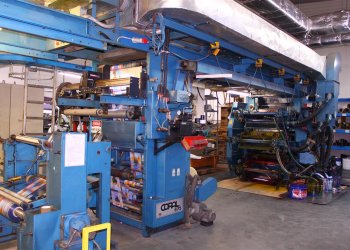

UTECO CORAL 675 Maquina Flexo 6 colores

Código Máquina
FL759
Constructor
UTECO
Modello
CORAL 675
Año
1995
Number of colors
6
Print possibilityes
6+0
Gearless
No
Fast sleeve change
No
4 motor per deck CNC position system
Not specifed
Computer supervision
Yes
Web width (mm)
820
Print width (mm)
800
Min print repeat (mm)
300
Max print repeat (mm)
750
Unwinder type
Two position unwidner , drop splice
Max reel diameter unwinder (mm)
800
Rewinder type
Two position independent rewinder
Max reel diameter rewinder (mm)
800
Drying
2 zones , 4 fans, 3 mt tunnel electric heaters
Videocamera
yes BST Super Handy Scan
Web guides
yes
Inking system
Closed chamber doctor blades
Anilox
12 ceramic as follows : 3 x280 l/ cm vol.5,6 ; 2 x280 l/cm vol 8,0 HVP; 2 x240 l/cm vol 6,0; 2 x120 l/cm vol8,0; 1 x120 l/cm vol12,5; 1 x 160 l/cm vol.12,5; 1 x 100 l/cm
Print Sleeves
115 print sleeves ; 1 set of mandrels, 3 sets of adaptors sleeves as follows : 6 x 299 mm; 6 x 319 ; 6 x334 ; 6 x 364 ; 6 x 384 ; 6 x 404 ; 6 x 429 ; 6 x 449 ; 6 x 469 ; 6 x 489 ; 6 x 509 ; 6 x 529 ; 6 x 553,6 ; 6 x 573,5 ; 6 x 603,5 ; 6 x 638,4 ; 6 x 683,3
Note
Motorized print deck prepositioning Motorized longitudinal registers Sleeve change on trolley out of machine Gear pitch DP 16
Código Máquina FL759
Constructor UTECO
Modello CORAL 675
Año 1995
Number of colors 6
Print possibilityes 6+0
Gearless No
Fast sleeve change No
4 motor per deck CNC position system Not specifed
Computer supervision Yes
Web width (mm) 820
Print width (mm) 800
Min print repeat (mm) 300
Max print repeat (mm) 750
Unwinder type Two position unwidner , drop splice
Max reel diameter unwinder (mm) 800
Rewinder type Two position independent rewinder
Max reel diameter rewinder (mm) 800
Drying 2 zones , 4 fans, 3 mt tunnel electric heaters
Videocamera yes BST Super Handy Scan
Web guides yes
Inking system Closed chamber doctor blades
Anilox 12 ceramic as follows : 3 x280 l/ cm vol.5,6 ; 2 x280 l/cm vol 8,0 HVP; 2 x240 l/cm vol 6,0; 2 x120 l/cm vol8,0; 1 x120 l/cm vol12,5; 1 x 160 l/cm vol.12,5; 1 x 100 l/cm
Print Sleeves 115 print sleeves ; 1 set of mandrels, 3 sets of adaptors sleeves as follows : 6 x 299 mm; 6 x 319 ; 6 x334 ; 6 x 364 ; 6 x 384 ; 6 x 404 ; 6 x 429 ; 6 x 449 ; 6 x 469 ; 6 x 489 ; 6 x 509 ; 6 x 529 ; 6 x 553,6 ; 6 x 573,5 ; 6 x 603,5 ; 6 x 638,4 ; 6 x 683,3
Note Motorized print deck prepositioning Motorized longitudinal registers Sleeve change on trolley out of machine Gear pitch DP 16
** SOLD **
