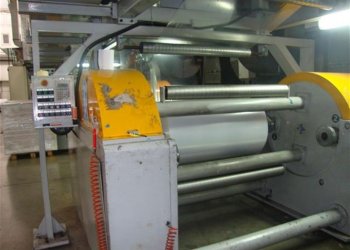

UTECO HORIZON 503 Laminator / coating machine SOLVENT BASED

Lamination machines for flexible packaging industry are used to join together different webs creating a single web composed of a multi layer structure. Laminators coat a glue on a primary material and laminates secondary material onto it.

Machine Code LA117
Manufacturer UTECO
Model HORIZON 503
Year 1989
Application Duplex lamination
Type of lamination/coating SOLVENT BASED
Working width (mm) 1450
Speed 300 m /min(with cold seal 250m/min )
First unwinder type TURRET
Max diameter reel unwinder 800
Secondary unwinder type TURRET
Max diameter reel unwinder 800
Rewinder type TURRET
Max diameter reel rewinder 800
Coating unit Laminating nip, one chrome plated steel roll diameter 250 mm with 1 rubber roller nip. One chill roll after laminating nip diam. 350 mm
Drying Diathermic oil.Three-sections horizontal drying tunnel, with independent set-up for each section.Tunnel length : 10,2 m (this is the total length).Heating system by diathermic oil (3 independent heather-exchangers). Air supply: 6.000 m3/h each section; total 18.000 m3/h .Air speed: 40 m/sec .Exsausting air 18.000 m3/h .
Register control 2 ZELO for cold seal in register
Corona treatment 2 x Ferrarini & Benelli for metallized materials, 8 kw each one
Additional information Solvent base laminator with cold-seal in register; also suitable to coat full background color or lacquer . Ventilation (drying) system : Three-sections horizontal drying tunnel, with independent set-up for each section .Tunnel length : 10,2 m (this is the total length) .Heating system by diathermic oil (3 independent heather-exchangers). Air supply: 6.000 m3/h each section; total 18.000 m3/h .Air speed: 40 m/sec .Exsausting air 18.000 m3/h . Unwinders : Automatic splice .Cores inner diameter : 3 and 6 inches . Web tension control by dancing-roller . Web tension range : 3 up to 30 kg with taper 50% . Rewinder :Automatic splice cores inner diameter : 3 and 6 inches .Web tension control by dancing-roller .Web tension range : 5 up to 50 kg with taper 50% . Included in supply : Register control Zelo Elettronica, for cold seal in register .Temperature control systems .Web guiding system : N° 2 made by Fife . Preparing for future solvent less Trolley . Rotogravure trolley with precision mechanics tips .Repeat of engraved rollers : 450 up to 850 mm . Including in the supply the following engraved coating rollers: Repeat of engraved rollers : 450 up to 850 mm .Including in the supply the following engraved coating rollers: Screening 60# 40my Width (mm) 1500 Repeat (mm) 690 ; Screening 60# 44my Width (mm) 1400 Repeat (mm) 690 ;Screening 60# 42my Width (mm) 1400 Repeat (mm) 690 ;Screening 60# 32my Width (mm) 1400 Repeat (mm) 690 ;Screening 60# 52my Width (mm) 1400 Repeat (mm) 690 ;Screening 60# 46my Width (mm) 1400 Repeat (mm) 690
