** SOLD **
A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).
Ask more informations
about a similar one
- Machine Code
- LA044
- Manufacturer
- KROENERT
- Modello
- RECO 2TD
- Year
- 1982
- Application
- Coating
- Type of lamination/coating
- SOLVENT / WATER BASED
- Working width (mm)
- 1600
- Speed
- 300m/min max; 250m/min running
- First unwinder type
- Turret - fly splice
- Max diameter reel unwinder
- 1000
- Rewinder type
- Turret - fly splice
- Max diameter reel rewinder
- 1200
- Coating unit
- 2 coating heads. twin direct gravure .Steam dryer ; Energy source:boiler;3 drying zones,6 top; Drive system: Lenze; Power requirements:100amp,380volt,50hz; Space required:20x5; 2nd coating head :7 drying chambers ; fly/splice unwind; speed 180m/min; 2 chill roller stack; Twin direct/reverse gravure coater;The coater has 4 tension control zones with pneumatic dancer rollers. This enables substrates of as low as 30gsm to be handle on this line. This coater is very well maintained. Analogue DC drive system
- Drying
- drying steam, 2 coating heads,1st direct gravure, solvent capability with fullextraction, 3 drying chambers,
- Note
- Solvent capability with full extraction; Antistatic throughout machine; Capable of applying 1-2 gsm dry silicon release coating at speed. Direct or reverse gravure.3 drying chambers;1 chill roller . Unwinder : tension control ; Wichita system; Edge guide rewinder :FIFE;
Machine Code | LA044 |
Manufacturer | KROENERT |
Modello | RECO 2TD |
Year | 1982 |
Application | Coating |
Type of lamination/coating | SOLVENT / WATER BASED |
Working width (mm) | 1600 |
Speed | 300m/min max; 250m/min running |
First unwinder type | Turret - fly splice |
Max diameter reel unwinder | 1000 |
Rewinder type | Turret - fly splice |
Max diameter reel rewinder | 1200 |
Coating unit | 2 coating heads. twin direct gravure .Steam dryer ; Energy source:boiler;3 drying zones,6 top; Drive system: Lenze; Power requirements:100amp,380volt,50hz; Space required:20x5; 2nd coating head :7 drying chambers ; fly/splice unwind; speed 180m/min; 2 chill roller stack; Twin direct/reverse gravure coater;The coater has 4 tension control zones with pneumatic dancer rollers. This enables substrates of as low as 30gsm to be handle on this line. This coater is very well maintained. Analogue DC drive system |
Drying | drying steam, 2 coating heads,1st direct gravure, solvent capability with fullextraction, 3 drying chambers, |
Note | Solvent capability with full extraction; Antistatic throughout machine; Capable of applying 1-2 gsm dry silicon release coating at speed. Direct or reverse gravure.3 drying chambers;1 chill roller . Unwinder : tension control ; Wichita system; Edge guide rewinder :FIFE; |

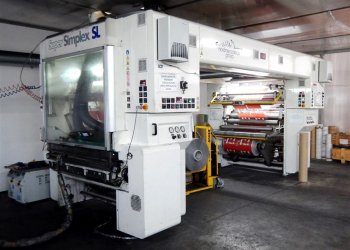

NORDMECCANICA SIMPLEX SL
-
