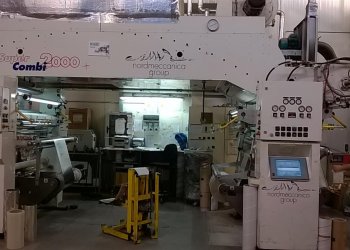

NORDMECCANICA TRIPLEX COMBI Laminator / coating machine Triplex Lamination Solvent based and solventless, lamination + coating

A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).

Machine Code	LA327
Manufacturer	NORDMECCANICA
Model	TRIPLEX COMBI
Year	1996
Application	Triplex lamination
Type of lamination/coating	Triplex Lamination Solvent based and solventless, lamination + coating
Working width (mm)	1320
Materials	All plastic film BOPP, CPP, PET , Nylon ,
Speed	250
First unwinder type	Turret automatic
Max diameter reel unwinder	800
Secondary unwinder type	Turret automatic
Max diameter reel unwinder	800
Third unwinder type	Turret automatic
Max diameter reel unwinder	800
Rewinder type	Turret automatic
Max diameter reel rewinder	1000
Coating unit	Combi Gravure trolley and solventless trolley
Second Coating unitr	Combi Gravure trolley and solventless trolley
Drying	Each coating unit has a double hood drier 2 x 3 mt with blowing and exhaust fan and thermo oil heat exchanger
Register control	yes for cold seal
Pumping mixing unit	2 puming dosing units for solventless adhesives
Corona treatment	yes 3 corona by AFS
Coating rollers	10 trabsfer rolelr for slvntless trolleys
Additional information	Turning bar between two coating units
