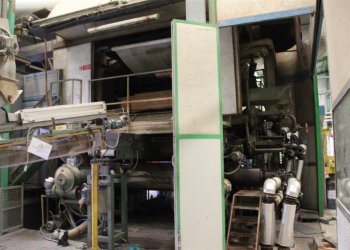

COMERIO/MILTEX/DOLCI plastic sheet extrusion machine

Machine Code PC21
Manufacturer COMERIO/MILTEX/DOLCI
Year 1976
Number of layers 1
Material PVC
Sheet width (mm) 1600
Screw diam 200mm
Description Extruder 2500Kg/h
Thisckness controll system Thickness controll system Electronic system, Thickness gauge Model Hi scan 1993. Control panel SINTEL SMART year 2011
Polishing stack/ calender lines unit Make Comerio; year 1976; Some year ago had an overhaul. 4 cylinder with polished surface. 4 independent motors (60-105-80-60 KW) . Cylindr’s width 1600mm diam 560mm .Linear speed 50m/min . Take off unit /MDO /cooling speed 10-150m/min
Web guide Edge trim and re feeding system : Previero year 1992- Grinding mill 37 kW
Rewinder description Tecno Coating Eng. type Robot wind automatic roll change
Additional information Line with both winder and sheet. Width cilinders calender 1600mm - Complete with raw material handlings and mixing Incl 4 silos 90 mc each. flow 700m3/h. 2 buffer tanks; Valve , filters and delivery. Additives dosing system year 2008 incl 12 silos, gravimetric doser. ; oil dosing system year 2007. All make Gavoni - 2 turbomixers: caccia year 1991 and Plasmec 1991 - Delivery: Opt 1 : Re-winder: make Tecno Coating Eng- tyupe Robot wind year 2000 - Delivery: Opt 2 Sheeter : Make milltex year 2000 , thickness 140-1.000 micron; width 1030- 1300 mm x length 850 - 1580 mm Pulling: Diam pulling rollers 90mm .termoregulation units 7 .Motors: 4 . Cooling .Diam pulling rollers 250mm .termoregulation units 4 .Motors: 4

Others in the same category:

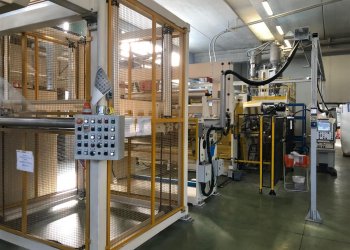

194433 - BANDERA

BANDERA

Category: Film extrusion lines

Subcategory: Polishing and Calenders

Sheet width (mm): 1310

Year: 2009

133920 - COMERIO

COMERIO

Category: Film extrusion lines

Subcategory: Polishing and Calenders

Sheet width (mm): 1800

Year: 1980

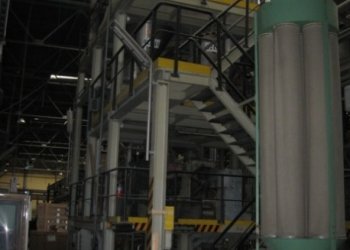

24831 - REIFENHAUSER
