3 layers TCE film blowing machine
Blown film extrusion lines are commonly used to extrude plastic films for flexible packaging industry.
| Machine Code | EX289 |
| Manufacturer | TCE |
| Year | 2001 |
| Number of layers | 3 |
| Overhaul/renovation | Renovation 2011, new screw and barrel. |
| Film structure | ABC |
| Film Width (mm) | 2200 |
| Output (Kg/h) | 350-400 Kg/h |
| Screw diam | 90 |
| Description | DC motor ABB ; Gravimetric dosing unit Inoex , 4 components |
| Screw diam | 120 |
| Description | DC motor ABB; Gravimetric dosing unit Inoex , 3 components |
| Screw diam | 90 |
| Description | DC motor ABB ; Gravimetric dosing unit Inoex , 4 components |
| Head description | Make Macro Engineering (Canada), Gap 2,2; IBC |
| Die diam (mm) | 500 mm |
| Thickness controll system | Automatic thickness control system Plastcontrol year 2002 ;Thickness gauge Plascontroll; automatic cooling ring Plastcontrol, 72 blowing units; IBC; Microperforator; |
| Bubble cage | Automatic buble guide Reinolds 4 sensors; |
| Panel for gussets | No |
| Take off unit | Oscillating take off unit Make Reinolds |
| Corona treatment | 3 corona treater Cason |
| Web guide | yes |
| Rewinder description | Rewinder Tecno Coating. Drive of winding axial or Gap. Complete with 4 espansive shafts diam 152 ; 4 espansive shafts diam 76mm. |
| Additional information | Microperforator; |
Others in the same category:

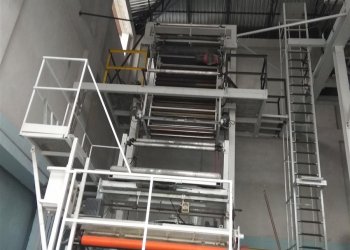

REIFENHAUSER RT371
