** SOLD **
Blown film extrusion lines are commonly used to extrude plastic films for flexible packaging industry.
Ask more informations
about a similar one
- Machine Code
- EX665
- Manufacturer
- MACCHI
- Modello
- COEX3
- Year
- 2010
- Number of layers
- 3
- Film structure
- ABC
- Material
- LDPE, LLDPE Thicknes 20 - 200 microns
- Film Width
- 1700
- Output (Kg/h)
- 400 Kg / h
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 65 / 30D
- Description 1

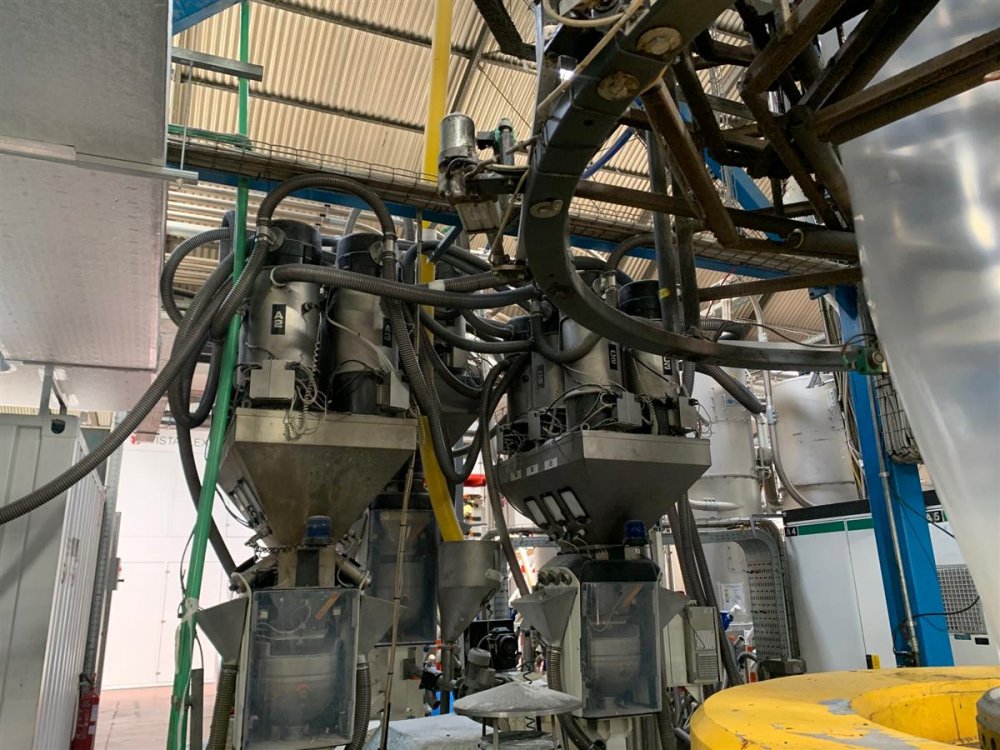

- 4 heating zones - AC motor 74 Kw- Hydraulic screen change gravimetric blendeer Doteco 5 comp
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 100 / 30 D
- Description 2
- 5 heating zones -AC motor 180 Kw, hydraulic screen changer, gravimetric blendeer Doteco 5 comp
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 65
- Description 3
- 4 heating zones - AC motor 74 Kw- Hydraulicscreen changer, gravimetric blendeer Doteco 5 comp
- Head description
- Coex Flex TE 503-; die range 300-500mm, IBC with Jet 6 system - blowing and exhaust fan 11kW controlled by inverters
- Die diam (mm)
- 400 gap 2mm
- Thickness controll system
- Automatic profil control, Plascontrol magic flow
- Bubble cage
- No marking system GSRC 2350/8 -5 with 5 lavels and 8 syncro arms with motorized remote controlled opening and height adjustment , 4 x Ultrasonic sensors for auto control of IBC,
- Panel for gussets
- Yes, motor driven
- Take off unit
- Oscillating ST 199- 1800oscillating width 1800 mm useful 1700 mm- S shape double cooling
- Corona treatment
- Yes
- Web guide
- E&L

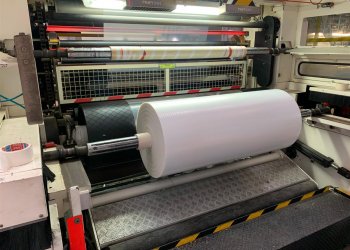

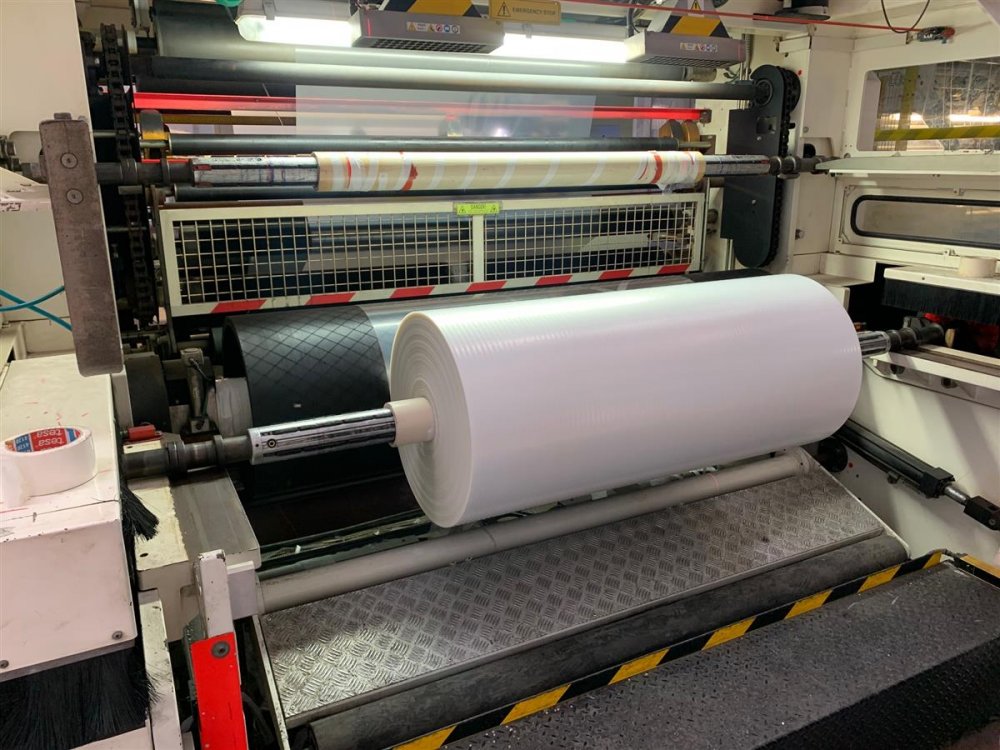

- Rewinder Type
- Double back to back
- Rewinder max reel diameter
- 1200
- Rewinder description
- BOPLUS + Easy load - Roll diam 1200 mm
- Note
- TOWER STRUCTURE NOT INCLUDED total suggested height 15 mt Mechanical speed 150m/min Total installed power 540 Kw Recotrim recycling system
| Machine Code | EX665 |
| Manufacturer | MACCHI |
| Modello | COEX3 |
| Year | 2010 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | LDPE, LLDPE Thicknes 20 - 200 microns |
| Film Width | 1700 |
| Output (Kg/h) | 400 Kg / h |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 65 / 30D |
| Description 1 | 4 heating zones - AC motor 74 Kw- Hydraulic screen change gravimetric blendeer Doteco 5 comp |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 100 / 30 D |
| Description 2 | 5 heating zones -AC motor 180 Kw, hydraulic screen changer, gravimetric blendeer Doteco 5 comp |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 65 |
| Description 3 | 4 heating zones - AC motor 74 Kw- Hydraulicscreen changer, gravimetric blendeer Doteco 5 comp |
| Head description | Coex Flex TE 503-; die range 300-500mm, IBC with Jet 6 system - blowing and exhaust fan 11kW controlled by inverters |
| Die diam (mm) | 400 gap 2mm |
| Thickness controll system | Automatic profil control, Plascontrol magic flow |
| Bubble cage | No marking system GSRC 2350/8 -5 with 5 lavels and 8 syncro arms with motorized remote controlled opening and height adjustment , 4 x Ultrasonic sensors for auto control of IBC, |
| Panel for gussets | Yes, motor driven |
| Take off unit | Oscillating ST 199- 1800oscillating width 1800 mm useful 1700 mm- S shape double cooling |
| Corona treatment | Yes |
| Web guide | E&L |
| Rewinder Type | Double back to back |
| Rewinder max reel diameter | 1200 |
| Rewinder description | BOPLUS + Easy load - Roll diam 1200 mm |
| Note | TOWER STRUCTURE NOT INCLUDED total suggested height 15 mt Mechanical speed 150m/min Total installed power 540 Kw Recotrim recycling system |
