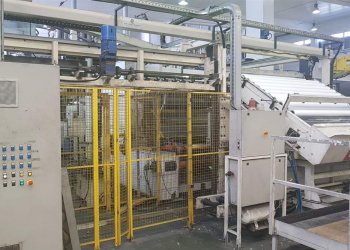

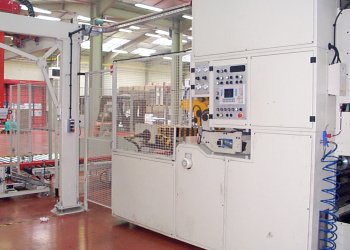

5 layers WINDMOLLER & HOLSCHER FILMEX Cast film machine

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP of PA granulates (or other polymer) are melted in an extruder and pushed through a flat extrusion die (T die) extruding a sheet of molten polymer on to a cooled roller (chill roll).

Machine Code CA133
Manufacturer WINDMOLLER & HOLSCHER
Model FILMEX
Year 1999
Number of layers 5
Film structure CDEBA; EDCBA; ABEDC; EAAAC; ECBAD
Material CPP , Barrier film
Film width (mm) 1760
Extruder 1 Layer ref: A
Screw diam 120/30
Description Gravimetric dosing unit 3 comp
Extruder 2 Layer ref: B
Screw diam 50/25
Description Gravimetric dosing unit 1 comp
Extruder 3 Layer ref: C
Screw diam 90/30
Description Gravimetric dosing unit 3 comp
Extruder 4 Layer ref: D
Screw diam 50/25
Description Gravimetric dosing unit 1 comp
Extruder 5 Layer ref: E
Screw diam 70/30
Description Gravimetric dosing unit 3 comp
Head description Automatic VERBRUGGEN FEEDBLOCK:CLOREN
Chill roll unit 2 chill rolls: First f 700mm, second f 400mm;2100 mm width; chrome plated, Electrostatic edge pinning
Thickness controll system Automatic Beta rays
Corona treatment yes
Additional information 750 kw installed power 400-450kw working power

Others in the same category:

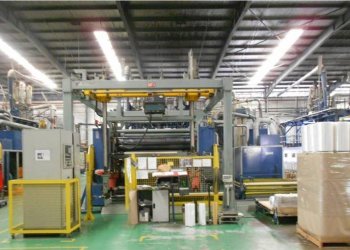

123913 - DOLCI NEXTROM
