5 layers REIFENHAUSER SML Cast film extruder
Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
| Machine Code | CA190 |
| Manufacturer | REIFENHAUSER SML |
| Year | 1990 |
| Number of layers | 5 |
| Film structure | C-A-B-A-C, C, B-C-A, B-A-C-A-B, C-D-B, C-D, A-C-B, B-A-C |
| Film width (mm) | 650 |
| Speed (m/min) | 150 m/min |
| Output (Kg/h) | 200 Kg/h max |
| Extruder 1 Layer ref: | A |
| Screw diam | 40 mm |
| Description | Hydraulic Screen changer of each extruder (manual) |
| Extruder 2 Layer ref: | B |
| Screw diam | 45 mm |
| Description | Hydraulic Screen changer of each extruder (manual) |
| Extruder 3 Layer ref: | C |
| Screw diam | 60 mm |
| Description | Hydraulic Screen changer of each extruder (manual) |
| Extruder 4 Layer ref: | D |
| Screw diam | 60 mm |
| Description | Hydraulic Screen changer of each extruder (manual) |
| Die width (mm) | 800 mm |
| Chill roll unit | width 900 mm 3 chill roll system can work both as chillroll system for tinner materials or as calander system for thicker applications |
| Thickness controll system | FAG - Beta rays |
| Corona treatment | double side possible |
| Web guide | yes |
| Rewinder description | make SML |
Others in the same category:
DOLCI NEXTROM
Category: Film extrusion lines
Subcategory: Cast film
Film width (mm): 2000
Year: 2000

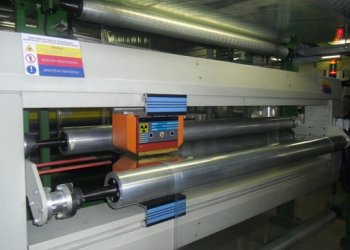

TECHNO COATING ENGINEERING 2000/5 PLUS 4E
