3 layers BIELLONI L6 Cast film extrusion line

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA185
Manufacturer BIELLONI
Model L6
Year 2000
Number of layers 3
Film structure A-B-C 10/70/20
Material STRETCH FILM 17-24 my
Film width (mm) 2000
Speed (m/min) 260m/min
Output (Kg/h) 690 Kg/h netto
Extruder 1 Layer ref: 80/30
Screw diam 80
Extruder 2 Layer ref: 160/30
Screw diam 160
Extruder 3 Layer ref: 80/30
Screw diam 80
Head description T-die and feed block Simplast with manual gauge correction
Die width (mm) 2500
Chill roll unit 1000 + 400mm
Thickness controll system Electronic System Beta rays
Web guide Yes
Rewinder max reel diameter (mm) 800
Rewinder description Pheripherical with automatic core glueing and shaft extracting device
Additional information Layout is available

Others in the same category:

48266 - BLACK CLAWSON

BLACK CLAWSON

Category: Film extrusion lines

Subcategory: Cast film

Film width (mm): 2000

Year: 1995

1937 - COLINES Breathable film

COLINES Breathable film

Category: Film extrusion lines

Subcategory: Cast film

Film width (mm): 2850

Year: 2009

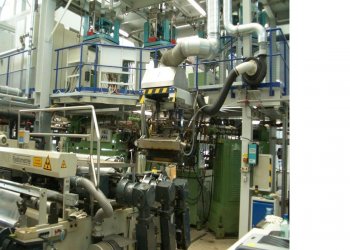

203185 - REIFENHAUSER  SML
