3 layers WINDMÖLLER & HÖLSCHER FILMATIC M Cast film machine
Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
| Machine Code | CA181 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Model | FILMATIC M |
| Year | 1998 |
| Number of layers | 3 |
| Film structure | 7 sets of plates for changing layer distribution through the feedblock |
| Material | CPP, PA, LDPE |
| Film width (mm) | 1600 |
| Speed (m/min) | 200 |
| Extruder 1 Layer ref: | A |
| Screw diam | 90 |
| Extruder 2 Layer ref: | B |
| Screw diam | 70 |
| Extruder 3 Layer ref: | C |
| Screw diam | 50 |
| Head description | Automatic die with 58 bolts |
| Die width (mm) | 1700 |
| Chill roll unit | Yes |
| Corona treatment | Softal |
| Web guide | Yes |
| Rewinder max reel diameter (mm) | 1200 |
| Rewinder description | Automatic non stop on ID 76 and 152mm cores |
| Additional information | Suction and winder for side trims Thickness range 15-280 my |
Others in the same category:
DOLCI EXTRUSION
Category: Film extrusion lines
Subcategory: Cast film
Film width (mm): 2000
Year: 2007

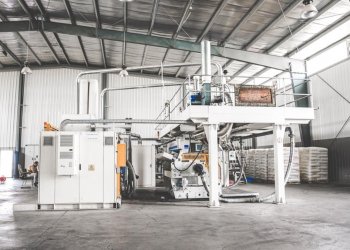

COLINES HANDrollEX 1000A
