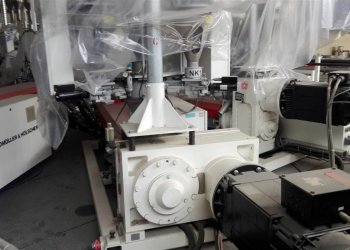

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA093
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- FILMEX
- Year
- 1995
- Number of layers
- 5
- Overhaul/renovation
- Radiometer new unit from 2009. Renovation 2018
- Film structure
- ABCDE
- Material
- CPP, STRETCH FILM, Barrier fim
- Film width (mm)
- 1850
- Output (Kg/h)
- Max production up to 300 kg/hr
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 120mm
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 45mm
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 90mm
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 45mm
- Extruder 5 Layer ref:
- E
- Screw diam 5
- 90mm
- Head description
- Head automatic. Cloeren new 2008
- Die width (mm)
- 2100
- Chill roll unit
- Yes
- Corona treatment
- 2 sides AFS
- Rewinder max reel diameter (mm)
- 800
- Rewinder description
- Filmex is possible up to 1000 mm
- Note
- 8 Feedblocks. Min 20 max 180 microns Line was designed for PA film Spare die head Cloeren Slitting attachment with trim exhaust system and banana roller Gravimetric dosing unit on extruders A,C,E Additional slitter rewinder
| Machine Code | CA093 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | FILMEX |
| Year | 1995 |
| Number of layers | 5 |
| Overhaul/renovation | Radiometer new unit from 2009. Renovation 2018 |
| Film structure | ABCDE |
| Material | CPP, STRETCH FILM, Barrier fim |
| Film width (mm) | 1850 |
| Output (Kg/h) | Max production up to 300 kg/hr |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 120mm |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 45mm |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 90mm |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 45mm |
| Extruder 5 Layer ref: | E |
| Screw diam 5 | 90mm |
| Head description | Head automatic. Cloeren new 2008 |
| Die width (mm) | 2100 |
| Chill roll unit | Yes |
| Corona treatment | 2 sides AFS |
| Rewinder max reel diameter (mm) | 800 |
| Rewinder description | Filmex is possible up to 1000 mm |
| Note | 8 Feedblocks. Min 20 max 180 microns Line was designed for PA film Spare die head Cloeren Slitting attachment with trim exhaust system and banana roller Gravimetric dosing unit on extruders A,C,E Additional slitter rewinder |
