** SOLD **
Double and triple bubble extrusion lines are used to produce biaxially oriented plastic films.
Ask more informations
about a similar one
- Machine Code
- TB9
- Manufacturer
- KUHNE
- Year
- 2011
- Number of layers
- 9
- Film structure
- ABCDEFGHI Typical structure: PO (5%) - HV (5%) - PO (35%) - HV (5%) - PA (5%) – EVOH (5%) - PA (5%) - HV (5%) – PO (30%) Machine is also designed for structures with PET
- Material
- 9 layers barrier and shrink film structures with PO (PE, PP and another polyolefins)/PA/EVOH/PET
- Output
- max 140-160 Kg
- Film width (mm)
- 700
- Extruders
- 9 extruders: A- Screw diam 35mm L/D24, AC Motor, approx. 20 Kg/h with PO (PE and PP) and PET 5 comp FDM doser ; B- Screw diam 30mm L/D24, AC Motor, approx. 10 Kg/h with HV 3 comp FDM doser; C- Screw diam 60mm L/D24, AC Motor, approx. 90 Kg/h with PO, 70 Kg/h with PA; 3 comp FDM doser D- Screw diam 30mm L/D24, AC Motor, approx. 10 Kg/h with HV; 2 comp FDM doser E- Screw diam 30mm L/D24, AC Motor, approx. 10 Kg/h with PA 3 comp FDM doser; F- Screw diam 35mm L/D24, AC Motor, approx. 15 Kg/h with EVOH 2 comp FDM doser; G- Screw diam 30mm L/D24, AC Motor, approx. 10 Kg/h with PA 3 comp FDM doser; H- Screw diam 30mm L/D24, AC Motor, approx. 10 Kg/h with HV 2 comp FDM doser; I- Screw diam 45mm L/D24, AC Motor, approx. 60 Kg/h with PO 5 comp FDM doser- Melt Gear Pumps after all extruders - hydraulic screen changer
- Head

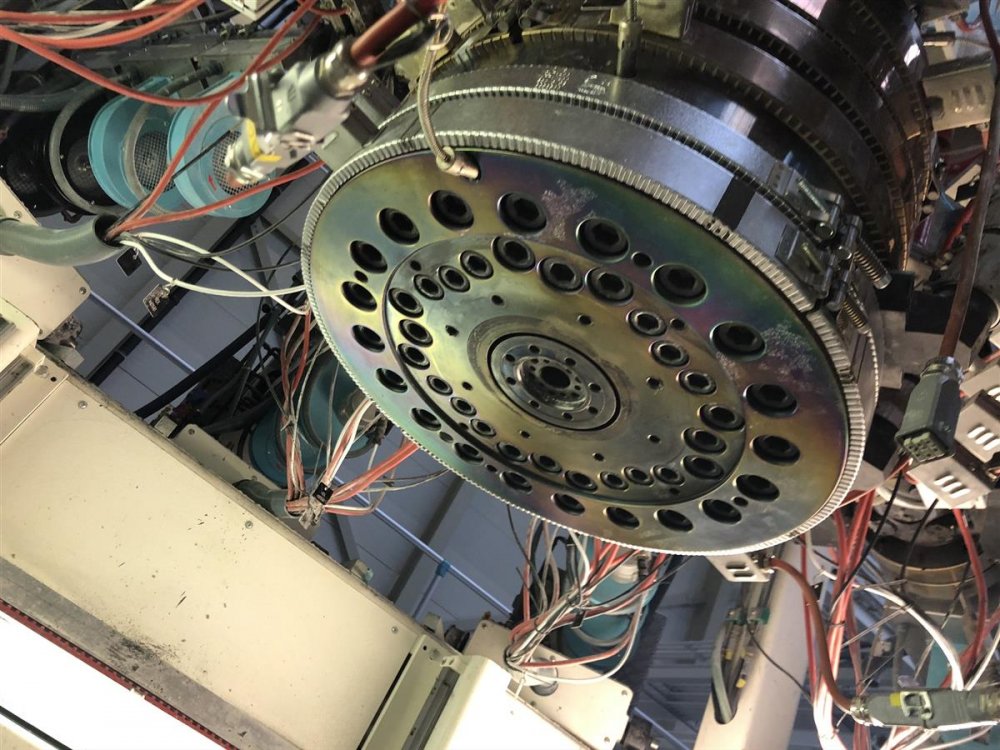

- 9-layer extrusion die with 2 die inserts 80 mm and 160mm die
- Stretching
- Triple bubble line, see details in Additional information section
- Rewinder

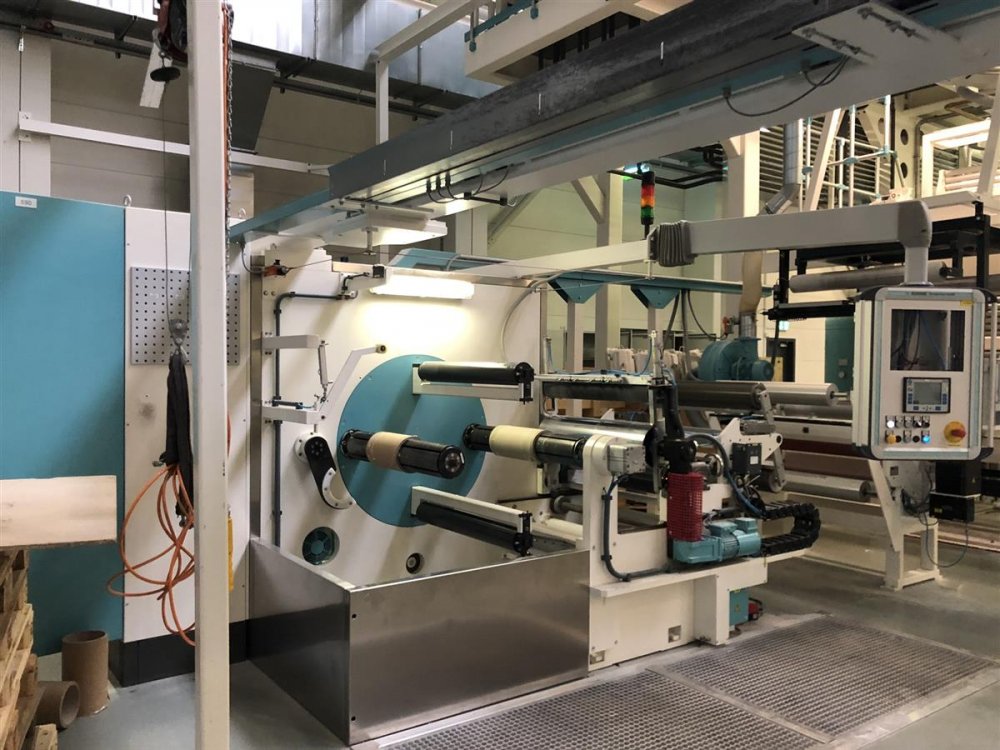

- Automatic single winder. Max width 700mm, max reel diam 800mm, max speed 100m/min
- Note

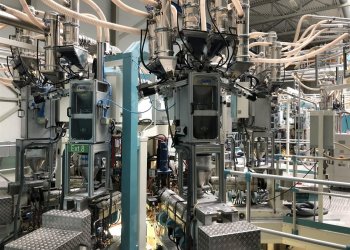

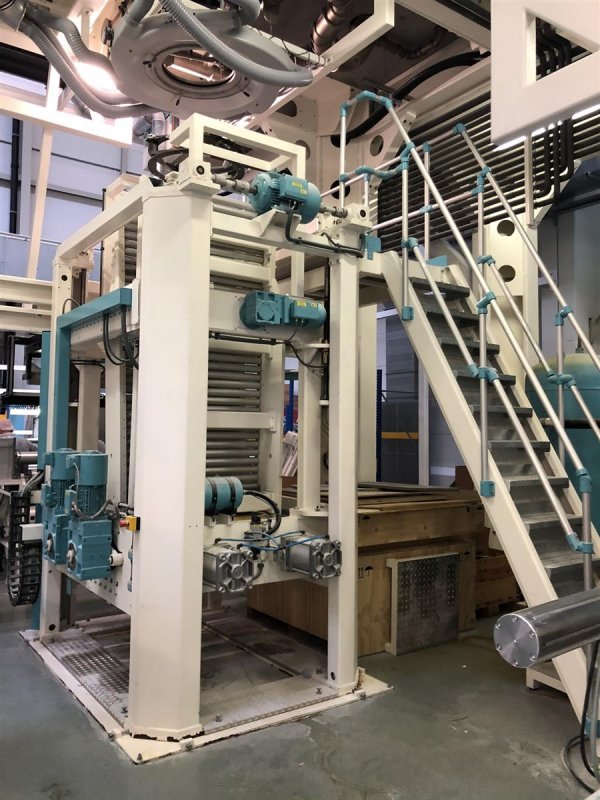

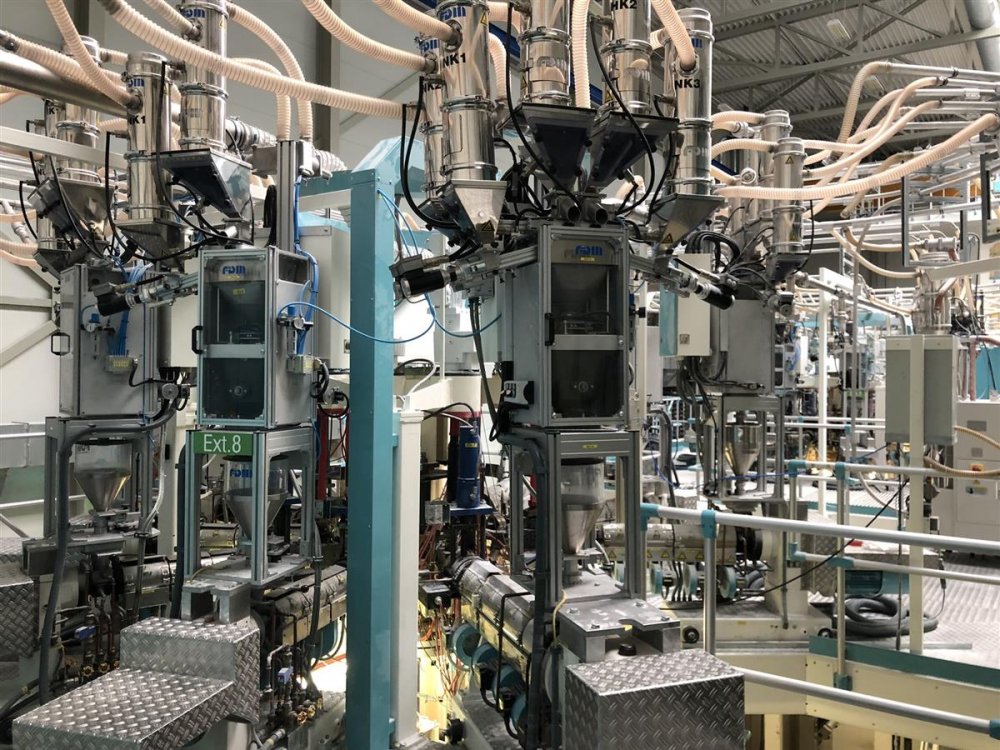

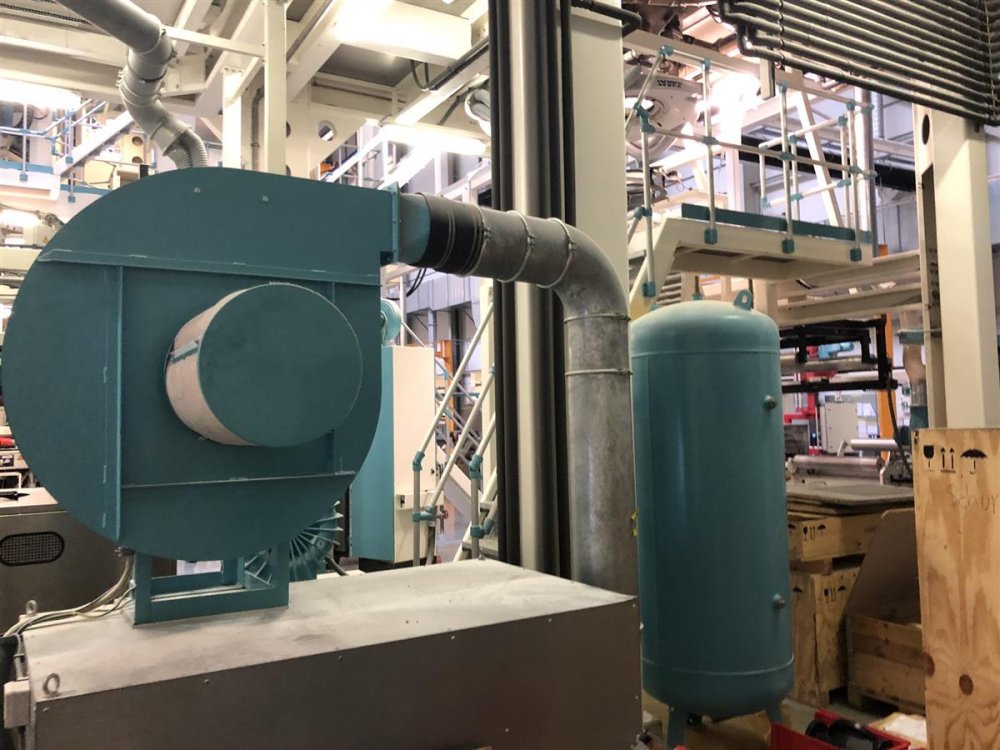

- Stretching: - preforming unit gage insert 1 set -1st pulling unit max speed 40m/min: for pulling and tension control - Preheating exchange length 3m - 2nd pulling unit max speed 40m/min: Squeezing the film tube, 2 squeezing rollers - Cooling ring for process stabilizing after preheating and pulling (including heat exchanger) - Cooling ring for cooling (including heat exchanger) -3rd pulling unit max speed 100m/min: to pull tubular, Reversing device and air reversing layers Reverse speed infinitely adjustable, Electric height level adjustment Adjustment range 2m - Width gauge - Humidification pool - Blowing off - 4th Pulling unit max speed 100m/min: to pull material from unit 3, and to guide material into post-treatment unit - Post treatment - Corona treatment - Dancing roller - Width gauge Dosing system: - 5 x gravimetric dosing units 3 components for extruders A/C/E/G/I - 4 x gravimetric dosing units 3 components for extruders B/D/F/H Material suction system Thermoregulation units
| Machine Code | TB9 |
| Manufacturer | KUHNE |
| Year | 2011 |
| Number of layers | 9 |
| Film structure | ABCDEFGHI Typical structure: PO (5%) - HV (5%) - PO (35%) - HV (5%) - PA (5%) – EVOH (5%) - PA (5%) - HV (5%) – PO (30%) Machine is also designed for structures with PET |
| Material | 9 layers barrier and shrink film structures with PO (PE, PP and another polyolefins)/PA/EVOH/PET |
| Output | max 140-160 Kg |
| Film width (mm) | 700 |
| Extruders | 9 extruders: A- Screw diam 35mm L/D24, AC Motor, approx. 20 Kg/h with PO (PE and PP) and PET 5 comp FDM doser ; B- Screw diam 30mm L/D24, AC Motor, approx. 10 Kg/h with HV 3 comp FDM doser; C- Screw diam 60mm L/D24, AC Motor, approx. 90 Kg/h with PO, 70 Kg/h with PA; 3 comp FDM doser D- Screw diam 30mm L/D24, AC Motor, approx. 10 Kg/h with HV; 2 comp FDM doser E- Screw diam 30mm L/D24, AC Motor, approx. 10 Kg/h with PA 3 comp FDM doser; F- Screw diam 35mm L/D24, AC Motor, approx. 15 Kg/h with EVOH 2 comp FDM doser; G- Screw diam 30mm L/D24, AC Motor, approx. 10 Kg/h with PA 3 comp FDM doser; H- Screw diam 30mm L/D24, AC Motor, approx. 10 Kg/h with HV 2 comp FDM doser; I- Screw diam 45mm L/D24, AC Motor, approx. 60 Kg/h with PO 5 comp FDM doser- Melt Gear Pumps after all extruders - hydraulic screen changer |
| Head | 9-layer extrusion die with 2 die inserts 80 mm and 160mm die |
| Stretching | Triple bubble line, see details in Additional information section |
| Rewinder | Automatic single winder. Max width 700mm, max reel diam 800mm, max speed 100m/min |
| Note | Stretching: - preforming unit gage insert 1 set -1st pulling unit max speed 40m/min: for pulling and tension control - Preheating exchange length 3m - 2nd pulling unit max speed 40m/min: Squeezing the film tube, 2 squeezing rollers - Cooling ring for process stabilizing after preheating and pulling (including heat exchanger) - Cooling ring for cooling (including heat exchanger) -3rd pulling unit max speed 100m/min: to pull tubular, Reversing device and air reversing layers Reverse speed infinitely adjustable, Electric height level adjustment Adjustment range 2m - Width gauge - Humidification pool - Blowing off - 4th Pulling unit max speed 100m/min: to pull material from unit 3, and to guide material into post-treatment unit - Post treatment - Corona treatment - Dancing roller - Width gauge Dosing system: - 5 x gravimetric dosing units 3 components for extruders A/C/E/G/I - 4 x gravimetric dosing units 3 components for extruders B/D/F/H Material suction system Thermoregulation units |
