ROTOMEC BOBST Rotopak 4000-2ES/1025/550/C Rotogravure printing machine 10 colors

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Machine Code RO186
Manufacturer ROTOMEC BOBST
Model Rotopak 4000-2ES/1025/550/C
Year 2002
Number of colors 10
Print possibilities 10 col print, 9 col + coating/ cold seal; Print + Lamination in line; print units 1,8,9,10 reversible, unit 9 with 2 lamination units, possibility of cold seal in register on unit 10
Drive Electronic shaft
Trolley system Yes
Web width (mm) 1025
Print width (mm) 1000
Print repeat range (mm) 500-1000mm
Drying specifications Pre treating unit 1,4m length, Unit 1 double hood 5m length 32 nozels 2 zones, unit2-7 single extended 3000mm 19 nozels, unit8 double extended hood 6000mm 38 nozels 2 zones, unit 9 double super extended 7000mm 46 nozels 2 zones, unit 10 double super extended 8000mm 52 nozels 2 zones
Drying heat surce Thermal oil
Unwinder type Turret two direction
Max reel diameter unwinder (mm) 1000
Rewinder type Turret two direction
Max reel diameter rewinder (mm) 1000
Videocamera Eltromat Camera + 100PCT inspectin AVT Apollo
Register control Eltromat
Vyscosity control Yes
Corona treatment Albrandt
Print cylinders No
Additional information High performance rotogravure press. Mechanical Speed 550 m/min Secondary unwinder Turret max diam 1000mm Lamination unit AC driven. Roller water heated. Turning Bar Machine is currentlz dismantled

Others in the same category:

113902 - WENZHOU  KINGSUN

WENZHOU KINGSUN

Category: Printing machines

Subcategory: Rotogravure

Print width (mm): 800

Year: 2011

155851 - CERUTTI R 960

CERUTTI R 960

Category: Printing machines

Subcategory: Rotogravure

Print width (mm): 1250

Year: 2001

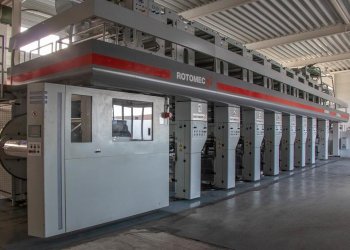

203027 - ROTOMEC BOBST 4003MP 1200/450/C
