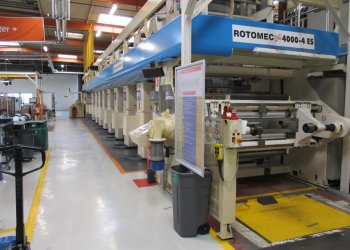

10 colors ROTOMEC Rotopak 4000-2ES/1025/550/C Rotogravure printing machine

Gravure presses are used to print on different supports: plastic films, paper and aluminium foil.

Machine Code RO186
Manufacturer ROTOMEC
Model Rotopak 4000-2ES/1025/550/C
Year 2002
Number of colors 10
Print possibilities 10 col print, 9 col + coating/ cold seal; Print + Lamination in line; print units 1,8,9,10 reversible, unit 9 with 2 lamination units, possibility of cold seal in register on unit 10
Drive Electronic shaft
Web width (mm) 1025
Print width (mm) 1000
Print repeat range (mm) 500-1000mm
Max reel diameter unwinder (mm) 1000
Rewinder type Turret two direction
Videocamera Eltromat Camera + 100PCT inspectin AVT Apollo
Register control Eltromat
Corona treatment Albrandt
Print cylinders No
Additional information High performance rotogravure press. Mechanical Speed 550 m/min Secondary unwinder Turret max diam 1000mm Lamination unit AC driven. Roller water heated. Turning Bar

Others in the same category:

113902 - WENZHOU  KINGSUN

WENZHOU KINGSUN

Category: Printing machines

Subcategory: Rotogravure

Print width (mm): 800

Year: 2011

 - BOBST GRAVURE PRESS + INLINE PLATEN DIE CUTTING LEMANIC 650

BOBST GRAVURE PRESS + INLINE PLATEN DIE CUTTING LEMANIC 650

Category: Printing machines

Subcategory: Rotogravure

Year: 1980

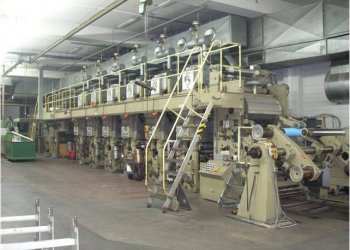

47585 - GOEBEL  REGENT R 1000

GOEBEL REGENT R 1000

Category: Printing machines

Subcategory: Rotogravure

Print width (mm): 1020

Year: 1972

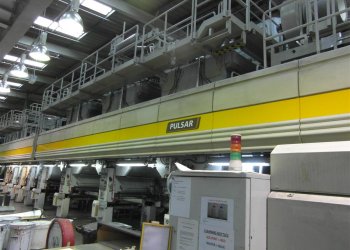

151914 - SCHIAVI PULSAR ( REVERSE)
