10 colors ROTOMEC Rotopak 4000-2ES/1025/550/C Gravure printing machine

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Machine Code RO186
Manufacturer ROTOMEC
Model Rotopak 4000-2ES/1025/550/C
Year 2002
Number of colors 10
Print possibilities 10 col print, 9 col + coating/ cold seal; Print + Lamination in line; print units 1,8,9,10 reversible, unit 9 with 2 lamination units, possibility of cold seal in register on unit 10
Drive Electronic shaft
Web width (mm) 1025
Print width (mm) 1000
Print repeat range (mm) 500-1000mm
Max reel diameter unwinder (mm) 1000
Rewinder type Turret two direction
Videocamera Eltromat Camera + 100PCT inspectin AVT Apollo
Register control Eltromat
Corona treatment Albrandt
Print cylinders No
Additional information High performance rotogravure press. Mechanical Speed 550 m/min Secondary unwinder Turret max diam 1000mm Lamination unit AC driven. Roller water heated. Turning Bar

Others in the same category:

8184 - EUROMAC MIGAM-9X

EUROMAC MIGAM-9X

Category: Printing machines

Subcategory: Rotogravure

Print width (mm): 1000

Year: 1980

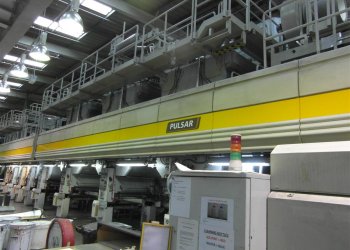

151914 - SCHIAVI PULSAR ( REVERSE)

SCHIAVI PULSAR ( REVERSE)

Category: Printing machines

Subcategory: Rotogravure

Print width (mm): 1000

Year: 2001

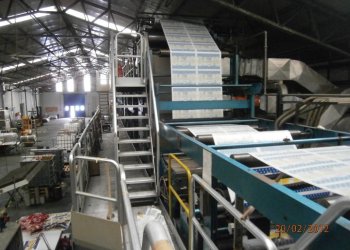

47180 - ANDREOTTI  ROTOSTAR  NR. 37
