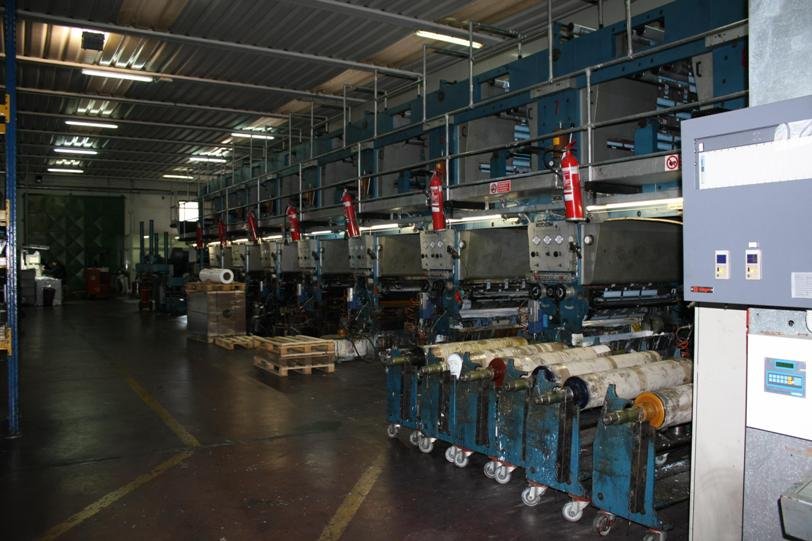

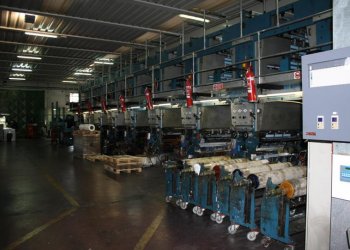

ANDREOTTI ROTOSTAR Rotogravure printing machine 8 colors

** SOLD **

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Ask more informations
about a similar one
Machine Code
RO061
Manufacturer
ANDREOTTI
Modello
ROTOSTAR
Year
1987
Number of colors
8
Print possibilities
7 colours + lamination in line
Web width (mm)
1400
Print width (mm)
1250
Print repeat range (mm)
400-900 mm
Drying specifications
double hoods:1&2, mm 4000; single dryer hoods:3,4,5,6 , mm2000; double dryer hoods on print units:7 & 8 mm 4000; All units with independent ventilation.
Drying heat surce
Diathermic oil heater with gas burner1.000.000 Kcal UNION SELECT year 2006
Unwinder type
Non stop turret unwinder
Max reel diameter unwinder (mm)
1200
Rewinder type
Non stop central-surface type rewinders
Max reel diameter rewinder (mm)
1200
Videocamera
Yes
Register controll
1 color register control model CR33 Grafikontrol year 2007
Vyscosity control
8 automatic viscosity control , year 2007
Print cylinders
500
Note
1 coating unit for reverse side or solvent lamination appplication( 8), 1 non stop turret unwinder for solvent lamination application (8), mm600; 1 control system; Fife web guidering for non stop turret unwinder; 4 pneumatical expanding shafts, 152mm; Fife web guidering non stop turret unwinder for solvent lamination application; 9 flame proof electric pumps; 10 doctor blades;16 speedwell sleeves; Fire alarm system Co2, year 2007; Solvent system; sleeves changing, 8 diathermic Oil Thermal heaters with temperature control, year 2007; web viewing and control of the printing quality genius BST year 2007, soundproofed wall; slitter rewinder TLTC
Machine Code RO061
Manufacturer ANDREOTTI
Modello ROTOSTAR
Year 1987
Number of colors 8
Print possibilities 7 colours + lamination in line
Web width (mm) 1400
Print width (mm) 1250
Print repeat range (mm) 400-900 mm
Drying specifications double hoods:1&2, mm 4000; single dryer hoods:3,4,5,6 , mm2000; double dryer hoods on print units:7 & 8 mm 4000; All units with independent ventilation.
Drying heat surce Diathermic oil heater with gas burner1.000.000 Kcal UNION SELECT year 2006
Unwinder type Non stop turret unwinder
Max reel diameter unwinder (mm) 1200
Rewinder type Non stop central-surface type rewinders
Max reel diameter rewinder (mm) 1200
Videocamera Yes
Register controll 1 color register control model CR33 Grafikontrol year 2007
Vyscosity control 8 automatic viscosity control , year 2007
Print cylinders 500
Note 1 coating unit for reverse side or solvent lamination appplication( 8), 1 non stop turret unwinder for solvent lamination application (8), mm600; 1 control system; Fife web guidering for non stop turret unwinder; 4 pneumatical expanding shafts, 152mm; Fife web guidering non stop turret unwinder for solvent lamination application; 9 flame proof electric pumps; 10 doctor blades;16 speedwell sleeves; Fire alarm system Co2, year 2007; Solvent system; sleeves changing, 8 diathermic Oil Thermal heaters with temperature control, year 2007; web viewing and control of the printing quality genius BST year 2007, soundproofed wall; slitter rewinder TLTC
