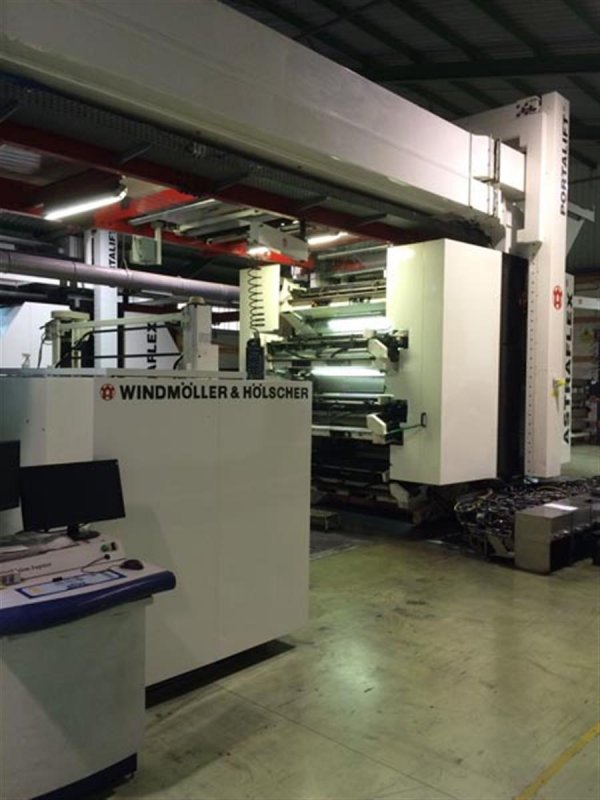

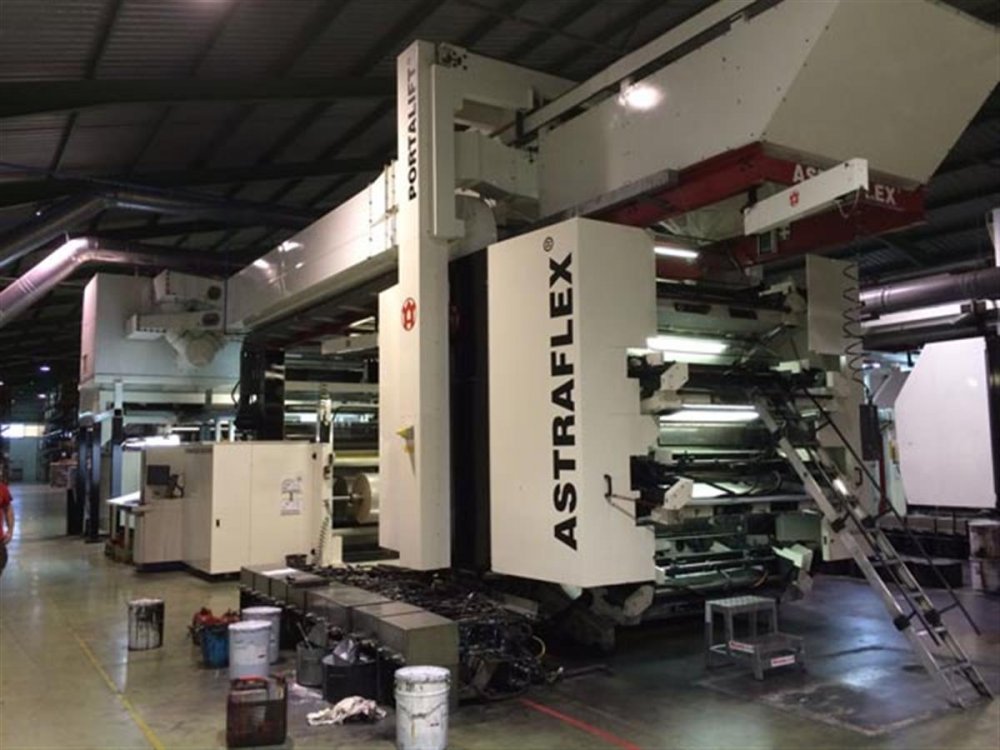

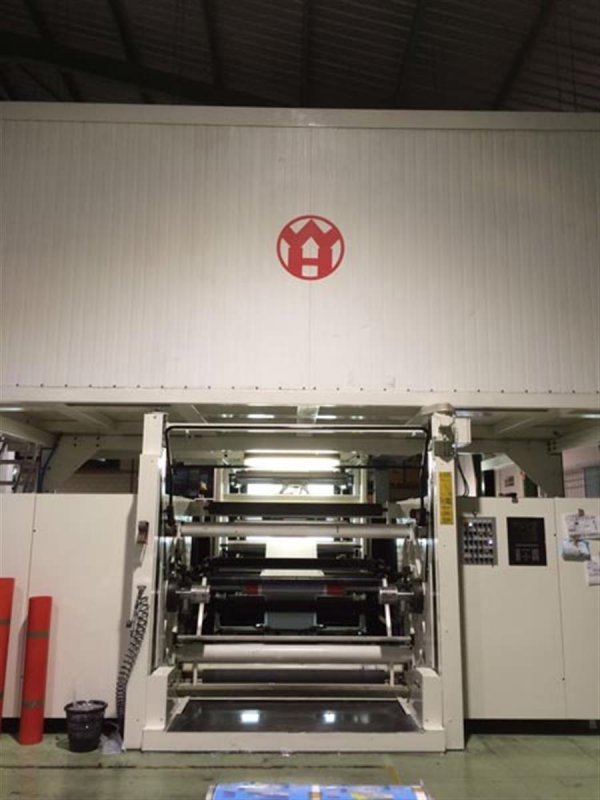

WINDMOLLER & HOLSCHER ASTRAFLEX flexo printing machine 8 colors

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
about a similar one
Machine Code
FL697
Manufacturer
WINDMOLLER & HOLSCHER
Model
ASTRAFLEX
Year
1998
Number of colors
8
Gearless
No
Fast sleeve change
No
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1620
Print width (mm)
1570
Max print repeat (mm)
1200

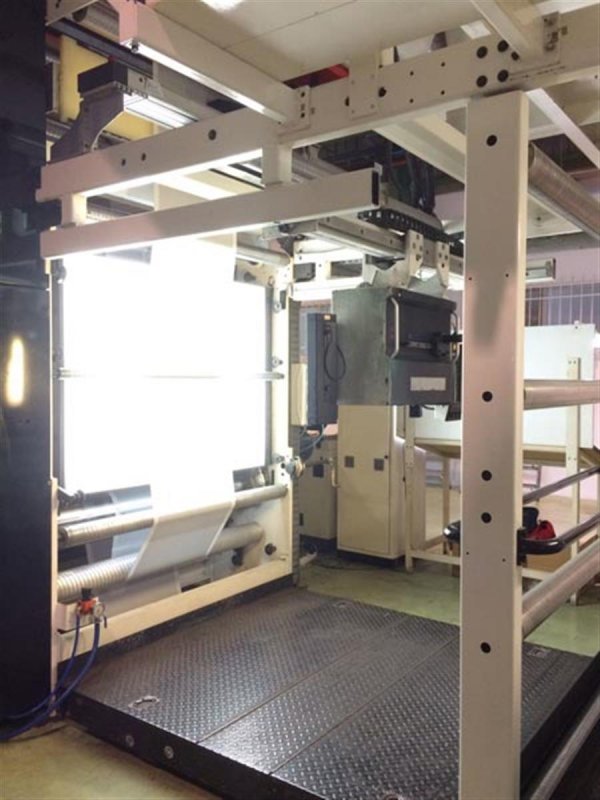

Unwinder type
Shaftless Turret with Flying Splice with two Knives including lift platform
Max reel diameter unwinder (mm)
1000
Rewinder type
Shaftless Turret with Flying Splice with two Knives including lift platform
Max reel diameter rewinder (mm)
1000
Drying
Thermic Oil(Heater non included)
Videocamera
Yes, AVTPrintvision Jupiter - year 2009
Web guides
Yes
Vyscosity control
Yes, 8x Nordcross

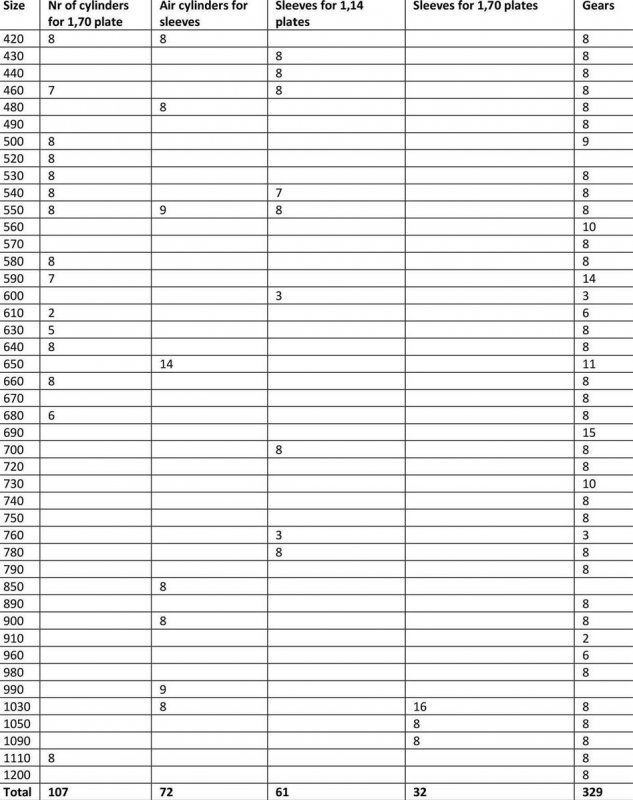

Print cylinders
Sleeve change out of the machine - Robotic system for fast change of mandrels/ cylinders in the machine
Additional information
WXehrtjoq3c 22Rlgs1JKW0 Material : PE / LDPE / HDPE / PP Paper
Machine Code FL697
Manufacturer WINDMOLLER & HOLSCHER
Model ASTRAFLEX
Year 1998
Number of colors 8
Gearless No
Fast sleeve change No
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1620
Print width (mm) 1570
Max print repeat (mm) 1200
Unwinder type Shaftless Turret with Flying Splice with two Knives including lift platform
Max reel diameter unwinder (mm) 1000
Rewinder type Shaftless Turret with Flying Splice with two Knives including lift platform
Max reel diameter rewinder (mm) 1000
Drying Thermic Oil(Heater non included)
Videocamera Yes, AVTPrintvision Jupiter - year 2009
Web guides Yes
Vyscosity control Yes, 8x Nordcross
Print cylinders Sleeve change out of the machine - Robotic system for fast change of mandrels/ cylinders in the machine
Additional information WXehrtjoq3c 22Rlgs1JKW0 Material : PE / LDPE / HDPE / PP Paper
