6 colors OFEM COLUMBUS 7/906 Flexo central drum printing press ** SOLD ** Ask more informations about a similar one

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Machine Code FL647
Manufacturer OFEM
Model COLUMBUS 7/906
Year 2000
Number of colors 6
Print possibilities 6+0
Gearless No
Fast sleeve change No
Web width (mm) 1270
Print width (mm) 1200
Max reel diameter unwinder (mm) 800
Rewinder type DOUBLE AXIS TURRET FLYING SLICE
Drying HOT AIR
Videocamera YES
Web guides YES, 1 before print and 1 before rewind
Inking system 4 Printing units (stations 2-3-4-5) equipped with enclosed doctor blade chambers with ceramic anilox rollers;2 Printing units (stations 1 and 6) equipped with fountain rubber roller (machine prepared for application of enclosed doctor blades as the other units)
Anilox 5 anilox roller ceramic coated and laser engraved to 120 lines/cm; • 2 anilox roller mechanically engraved (for fountain roller system) to 100 lines/cm.
Print cylinders complete with gears as follows:6 repeat length 320 mm.;6 repeat length 350 mm ;6 repeat length 370 mm ;6 repeat length 400 mm; 6 repeat length 430 mm;6 repeat length 460 mm ;6 repeat length 480 mm ;6 repeat length 500 mm.;6 repeat length 550 mm.;6 repeat length 600 mm.;6 repeat length 620 mm.;6 repeat length 650 mm.;6 repeat length 700 mm.;6 repeat length 750 mm.
Additional information Material : plastic webs; Transmission type: bull-gear; Length registers: motorized remote controlled; Side registers: manual; Decks positioning system: automatic with microprocessor, 1 motor each deck; Locking system of the printing units: manual; Hoisting system: double electric hoists for printing rollers handling;

** SOLD **


You may also be interested in:

150060 - FISCHER & KRECKE 16S

FISCHER & KRECKE 16S

Category: Printing machines

Subcategory: Flexo CI

Print width (mm): 800

Year: 2001

102077 - BIELLONI  THEOREMA

BIELLONI THEOREMA

Category: Printing machines

Subcategory: Flexo CI

Print width (mm): 1300

Year: 2004

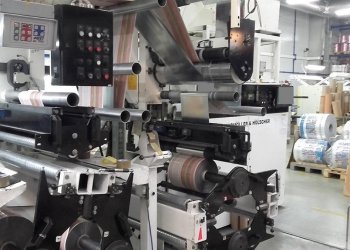

131987 - WINDMOLLER & HOLSCHER SOLOFLEX
