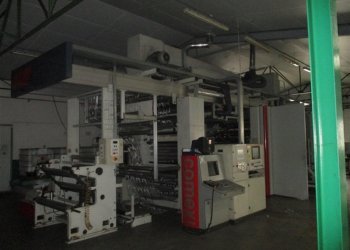

8 colors UTECO ONYX 810 (GEARLESS) Flexo central drum printing press ** SOLD ** Ask more informations about a similar one

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code FL633
Manufacturer UTECO
Model ONYX 810 (GEARLESS)
Year 2012
Number of colors 8
Gearless Yes
Fast sleeve change Yes
Web width (mm) 1250
Print width (mm) 1200
Max reel diameter unwinder (mm) 1000
Rewinder type Automatic Disc TA-U-R-1000; Driven with AC motor
Drying 4 fans 2 zones drying (one zone CI, second zone drying tunnel), Drying tunnel length 5m; Heat source 2 gas burners 150.000 Kcal/h each
Videocamera Grafiscan 2100 3 chip with register control
Corona treatment Yes, Ferrarini & Benelli model Polimetal suitable for metallized and not metallized films
Web guides Yes, Fife type Kamberoller, outfeed type Fife Opg
Additional information Unwinder: max weight 1600kg.Automatic flying splice, High rigidity design with cast Iron 70mm side frames and disc design for turret. 2 expanding shafts 76mm; 2 expanding shafts 152mm. Motorized reel loading Rewinder: max weight 1600kg. Automatic flying splice, High rigidity design with cast Iron 70mm side frames and disc design for turret. 2 expanding shafts 76mm; 2 expanding shafts 152mm. Motorized reels unloading Drying tunnel’s length 5m, heat source 2 gas burners 150.000 Kcal/h each. Motorized recirculation system with LEL controll from NIRA Videocamera: Grafiscan 2100 3 chip with register control. Monitor LCD TFT 19”; Motorized zoom 16X and focus. Automatic register with Click and Drag function. Split Image function with Master and Live. PCT system for automatic setting of printing presure and register every job change over. Add info: “Kiss and Go” system for automatic print pressure control Automatic regiser control Autometic wash up system (3 level light , medium , intensive) Automatic vyscosity controll Gama 9 carrier diam 180mm (for repeats above 600mm) + 9 carrier diam 244mm (for print repeats over 244mm) Print unit with cast Iron frames 110mm thickness; CI drum Hastalloy coated diam 2100mm, tollerance on circumference 0,008mm, thermoregulation for CI drum. PLC B&R

** SOLD **
