7 colors OFEM ARENA GL 808 -140 Flexo printer ** SOLD ** Ask more informations about a similar one

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code FL623
Manufacturer OFEM
Model ARENA GL 808 -140
Year 2003
Number of colors 7
Print possibilities 6 + 1 downstream for coating UV and water based varnishes on the same side of the web and in register with the spots printed on the CI section.
Gearless Yes
Fast sleeve change Yes
Web width (mm) 1450
Print width (mm) 1400
Max reel diameter unwinder (mm) 1300
Rewinder type Single axis
Drying Hot air drying system. Thermic oil Heating source.
Videocamera video inspection system BST-SuperHandyscan 4000.Quick registering system at machine start up.
Web guides 1 before printing and 1 before rewinding
Inking system Water based .Enclosed doctor blade chambers with ceramic anilox rollers.6 ink pumps.
Anilox Anilox sleeves ceramic coated and laser engraved as following:1 anilox engraved to HPF1-120 lines/cm., volume 10,0 g/m2; 1 anilox engraved to HPF4-220 lines/cm., volume 5,5 g/m2; 2 anilox engraved to 70 lines/cm., volume 20,0 g/m2; 2 anilox engraved to 80 lines/cm., volume 16,0 g/m2; 1 anilox engraved to 100 lines/cm., volume 16,0 g/m2; 2 anilox engraved to 120 lines/cm., volume 13,0 g/m2; 2 anilox engraved to 140 lines/cm., volume 11,0 g/m2; 6 anilox engraved to 180 lines/cm., volume 7,8 g/m2; 6 anilox engraved to 255 lines/cm., volume 5,0 g/m2.
Additional information Material : Paper 40-90 gsm . 6 number of printing units,on 8 color frame prepared for upgrading to maximum 8 stations. Servo driven transmission. Registers motorized remote controlled Decks’ positioning system automatic with 4 motors per deck and job repeatability program .Automatic Locking system of the printing units Plate roller mandrels: 6 carbon fibre plate roller air mandrels diameter 108,342 mm. for the print section; 1 plate roller air mandrels diameter 89,243 mm. for the print section.7 print sleeves. 1 downstream printing unit (this unit is a geared type) for coating water based and UV varnish in register with the Central impression section (UV lamps offered apart). Slitting unit on the rewinder.

** SOLD **


You may also be interested in:

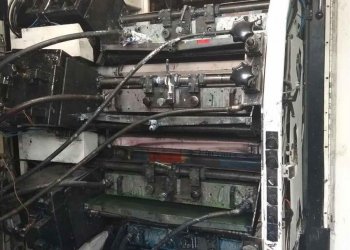

149920 - WINDMOELLER & HOLSCHER NOVOFLEX
