SCHIAVI ALPHA (GEARLESS) Flexo central drum printing press 8 colors ** SOLD ** Ask more informations about a similar one

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Machine Code FL586
Manufacturer SCHIAVI
Model ALPHA (GEARLESS)
Year 2002
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 330
Max print repeat (mm) 760
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones heating, 4 fans, 2 gas burners; automatic recirculation system with LEL control
Videocamera AVT JUPITER quality control 100%
Web guides Fife , in and out
Vyscosity control New Celio
Inking system 14 closed doctor blades
Anilox 400/60 vol 3.5 , 3 x 360/60 vol 4.5 , 300/60 vol 5,5 , 300/60 vol 7 , 2 x 240/60 vol 8 140/60 vol 11, 180/60 vol 13 , 2 x 80/60 vol 14 , 70/44 vol 18
Print Sleeves 330, 340, 350, 360,370,380,390,400,410,420,430,440,450 460,470,480,490, 500,510,520,530,540,550,560,570,580,590, 600,610;620,630, 640, 650mm
Additional information Cutting in line. Spare parts available.

** SOLD **


You may also be interested in:

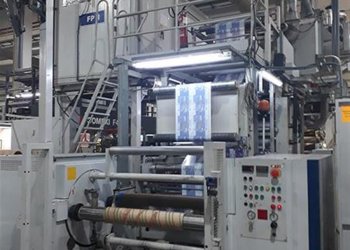

3596 - COMEXI FP 1808 CNC GL
