FISCHER & KRECKE 36S - 10 flexographic printing machine 10 colors

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Machine Code FL946
Manufacturer FISCHER & KRECKE
Model 36S - 10
Year 2008
Number of colors 10
Print possibilities 10+0
Overhaul/renovation Renovated in 2018 from manufacturer. All print units motors and parts renovated. New drives. CI drum renovated in 2018
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision No
Web width (mm) 2100
Print width (mm) 2050
Min print repeat (mm) 520
Max print repeat (mm) 1050
Unwinder type Turret shaftless 13 AW, both direction splicing (can work with shaft of smaller widths)
Max reel diameter unwinder (mm) 1000
Rewinder type Turret shaftless14 AW, both direction splicing (can work with shaft of smaller widths)
Max reel diameter rewinder (mm) 1000
Drying 7 m drying lenght, Maxon gas burners,
Videocamera 2 x Eltromat Webvideo 3000 both 3 chip camera with defect and quality control
Web guides BST
Vyscosity control BLOSS VISControl 3000
Washing system Auto Clean, 15 tanks, (1x80L, 3x60L, 10x30L
Inking system Closed chamber doctor blades
Anilox 1x120, 2x140, 2x300, 2x400, 4x460, 1x580, 2x220, 1x160.
Print Sleeves Carbon fiber carriers: diam 191.102 mm, 222.933mm, 254.514mm, 286.345mm. Print sleeves: qtyx repeat (mm): 10x520, 10x540, 10x560, 10x570, 10x 580, 11x 590, 23x600, 10x620, 10x630, 10x640, 10x650, 10x660, 21x680, 20x690, 20x700, 10x720, 10x740, 10x750,10x760, 18x780, 10x800, 20x840, 11x870
Additional information GPS automatic print set up system in line slitting system Speed: 500 m/min Carbon fiber sleeve mandrels Diam CI drum 2910mm, Ni-Cr plating. Thermo regulated CI drum and side frames Robot for sleeve change system LEL control PLATE MOUNTER: - Make Heaford - Model: 2100 DS - 10 cameras, 16 channels UPS

Others in the same category:

 - UTECO  ONYX 108

UTECO ONYX 108

Category: Printing machines

Subcategory: Flexo CI

Print width (mm): 1200

Year: 2017

202328 - UTECO JADE 810

UTECO JADE 810

Category: Printing machines

Subcategory: Flexo CI

Print width (mm): 1300

Year: 1996

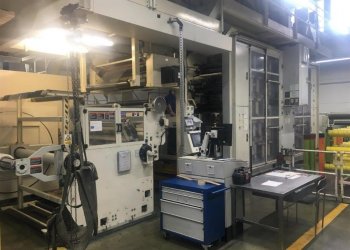

202535 - PCMC Infiniti II
