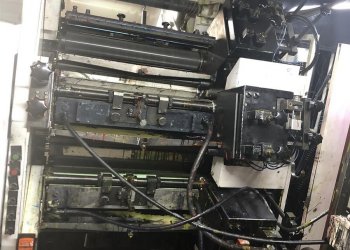

8 colors SCHIAVI SIGMA flexo press

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL823
Manufacturer SCHIAVI
Model SIGMA
Year 2003
Number of colors 8
Print possibilities 8+0
Overhaul/renovation 2012 - New inking system
Gearless Yes
Fast sleeve change Yes
Web width (mm) 1270
Print width (mm) 1220
Max reel diameter unwinder (mm) 800
Rewinder type Turret Automatic
Drying 2 zones 4 fans - Thermo oil heat exchangers - Automatic recirculation system with LEL controls
Videocamera YES AVT
Corona treatment Yes driven by Mero
Web guides BST EKR 1000 in and out
Inking system Closed chmaber doctor blades TRESU
Anilox 33 CERAMIC ANILOX SLEEVS , from 60 l/cm to 460 l/cm
Print Sleeves 320 print sleeves, 4 sets of carriers
Additional information New complete inking system complete with ink tanks and pneumatic pumps, solvent automatic mixing system for 3 different solvents, new closed chamber doctor blades TRESU, Autowash up system , viscosity control system . double set of closed chamber doctor bòlades and ink tanks covers
